FS3L50 Series
Manufacturer: INFINEON
Beta
⌘K

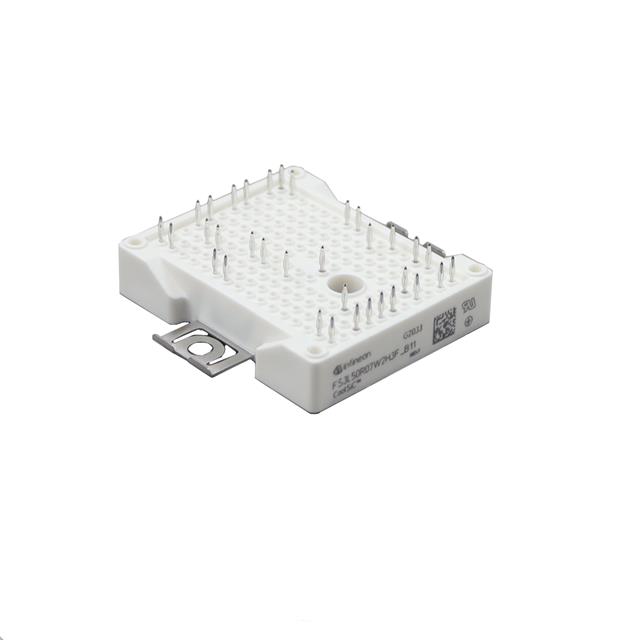

THE FS3L50R07W2H3F_B11 IS A 3-LEVEL IGBT HIGHSPEED 3 MODULE IN A EASYPACK™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 50 A.
| Part | IGBT Type | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector (Ic) (Max) [Max] | Mounting Type | Package / Case | NTC Thermistor | Vce(on) (Max) @ Vge, Ic [Max] | Supplier Device Package | Power - Max [Max] | Current - Collector Cutoff (Max) [Max] | Configuration | Input | Input Capacitance (Cies) @ Vce | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Trench Field Stop | 650 V | 50 A | Chassis Mount | Module | 1.8 V | Module | 20 mW | 1 mA | Three Phase Inverter | Standard | 3.1 nF | -40 °C | 150 °C |
