HVR25 Series

Catalog

METAL FILM RESISTORS - THROUGH HOLE HVR25 1% R5 215K

Part	Resistance	Package Name	Temperature Coefficient	Features	Package / Case	Composition	Power (Watts)	Power (Watts) Options	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Diameter	Tolerance	Number of Terminations

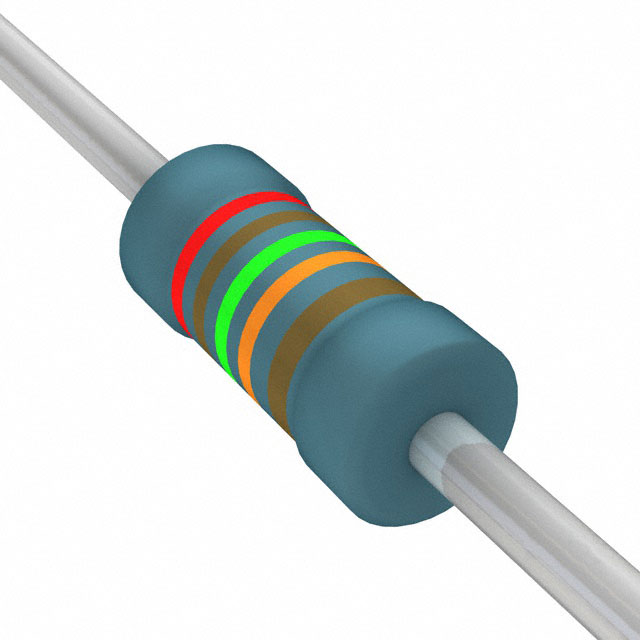

Vishay Dale HVR2500002153FR500	215 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2

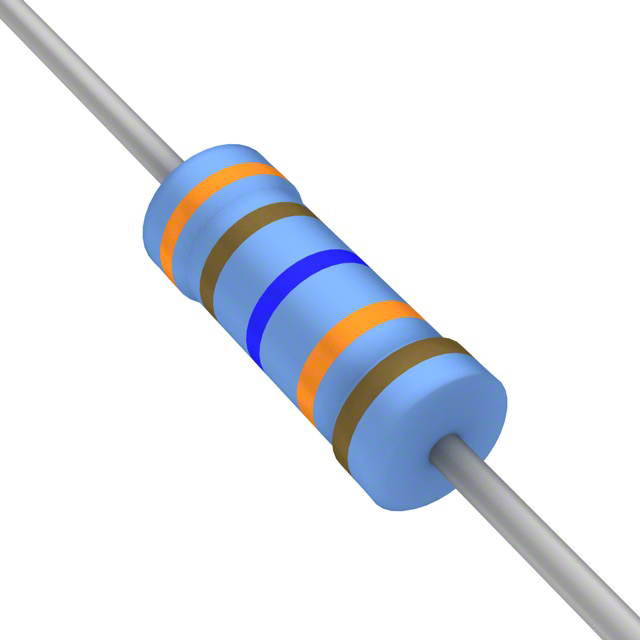

Vishay Dale HVR2500003163FR500	316 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2

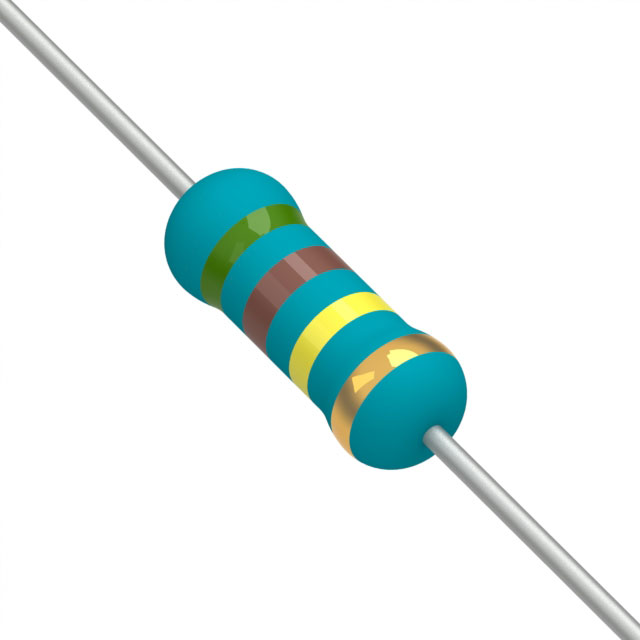

Vishay Dale HVR2500005103JR500	510 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	5 %	2

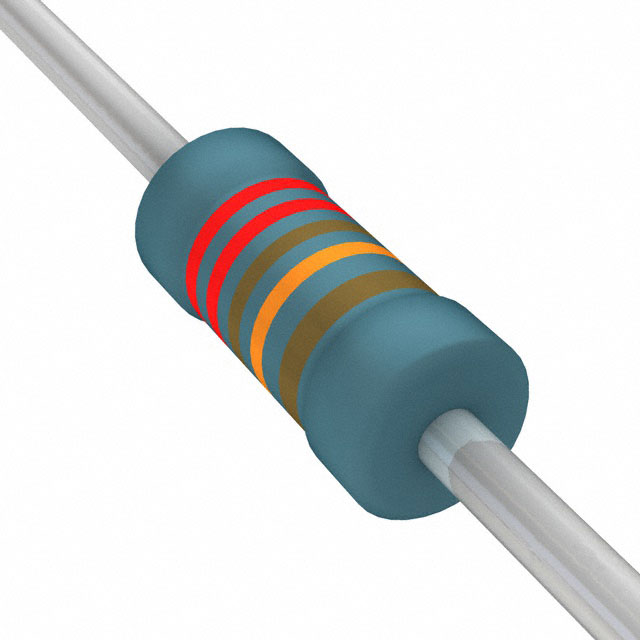

Vishay Dale HVR2500002213FR500	221 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2
Vishay Dale HVR2500003903JR500	390 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	5 %	2

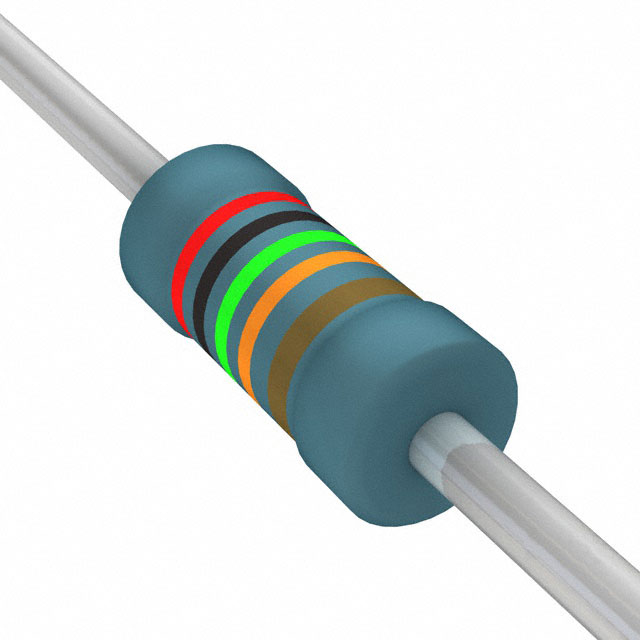

Vishay Dale HVR2500002053FR500	205 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2

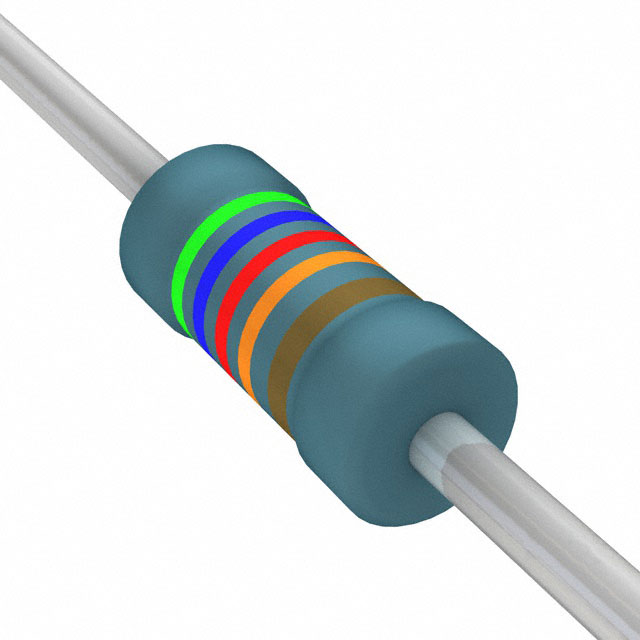

Vishay Dale HVR2500005623FR500	562 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2

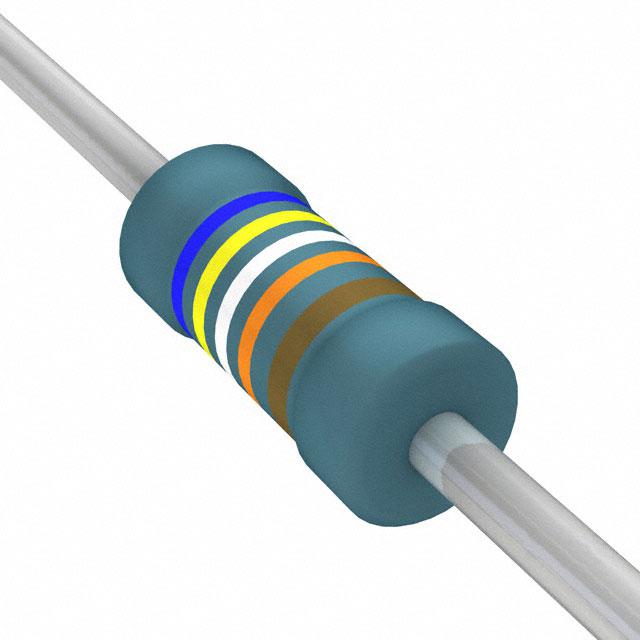

Vishay Dale HVR2500006493FR500	649 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2
Vishay Dale HVR2500007323FR500	732 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2
Vishay Dale HVR2500002743FR500	274 kOhm	Axial	200 ppm/°C	Flame Retardant Coating High Voltage Pulse Withstanding Safety	Axial	Metal Film	250 mW	1/4W	155 °C	-55 °C	0.256 in	0.098 in	1 %	2
