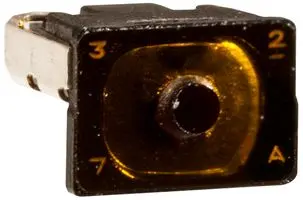

EVP-AV Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
TACTILE SWITCH, EVPAV SERIES, SIDE ACTUATED, EDGE MOUNT, ROUND BUTTON, 160 GF, 20MA AT 15VDC
| Part | Mechanical Life | Switch Travel | Circuit | Actuator Length, Right Angle | Termination Style | Illumination | Actuator Orientation | Operating Force | Mounting Type | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Contact Rating @ Voltage | Outline [y] | Outline [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 300000 Cycles | 0.13 mm | SPST-NO | 0.65 mm | SMD (SMT) Tab | Non-Illuminated | Side Actuated | 160 gf | Edge Mount Right Angle | Standard | 85 °C | -40 C | Off-Mom | 0.02 A 15 VDC | 2 mm | 2.8 mm |
