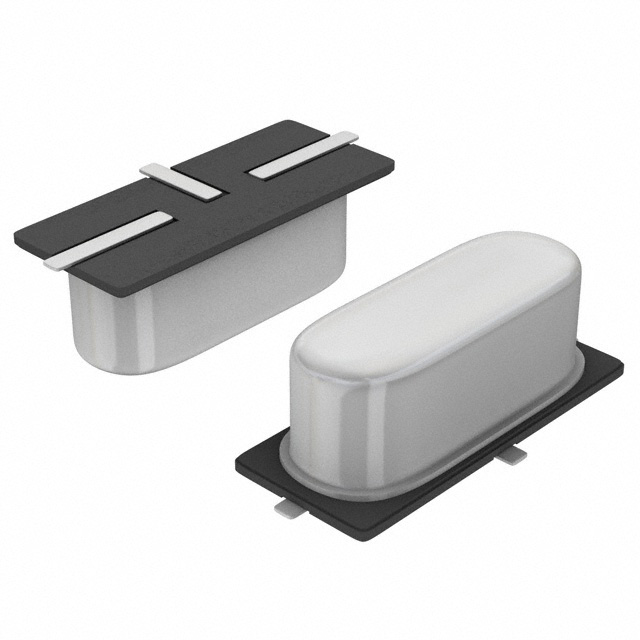

ABLSG Series
Manufacturer: Abracon LLC
Beta
⌘K
CRYSTALS XTAL HC-49/US SMD - 3 LEAD 7.3728MHZ TOL +/-20PPM STAB +/-30PPM -40°C ~ 85°C 18PF 100 OHMS
| Part | ESR (Equivalent Series Resistance) | Frequency Tolerance | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Frequency Stability | Load Capacitance | Type | Frequency | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Operating Mode | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 100 Ohms | 20 ppm | Surface Mount | 0.185 in | 0.449 in | 85 °C | -40 C | HC-49/US - 3 Lead | 30 ppm | 18 pF | MHz Crystal | 7.3728 MHz | 4.2 mm | 0.165 " | Fundamental | HC-49/US |
Abracon LLC | 180 Ohms | 20 ppm | Surface Mount | 0.185 in | 0.449 in | 85 °C | -40 C | HC-49/US - 3 Lead | 30 ppm | 18 pF | MHz Crystal | 4.433619 MHz | 4.2 mm | 0.165 " | Fundamental | HC-49/US |
