Uninorm Series

Catalog

ENCLOSURES FOR INDUSTRIAL AUTOMATION ENCLOSURE, CPM, UNINORM, 72 X 72 X 85MM, PPE + PS (SE1 GFN1), RAL 9005, NGS 7708

Part	Weight	Weight	Height	Height	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material	Features	Color	Container Type	Material Flammability Rating	Ratings	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	For Use With/Related Products	Accessory Type	Weight [custom]	Weight [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Bopla Enclosures 17770801	58.97 g	0.13 lbs	72 mm	2.835 in	Open End(s)	2.835 "	85 mm	3.346 in	72 mm	Plastic PPE	Card Guides Flame Retardant	Black	Housing	UL94 V-1	IP40 IP65

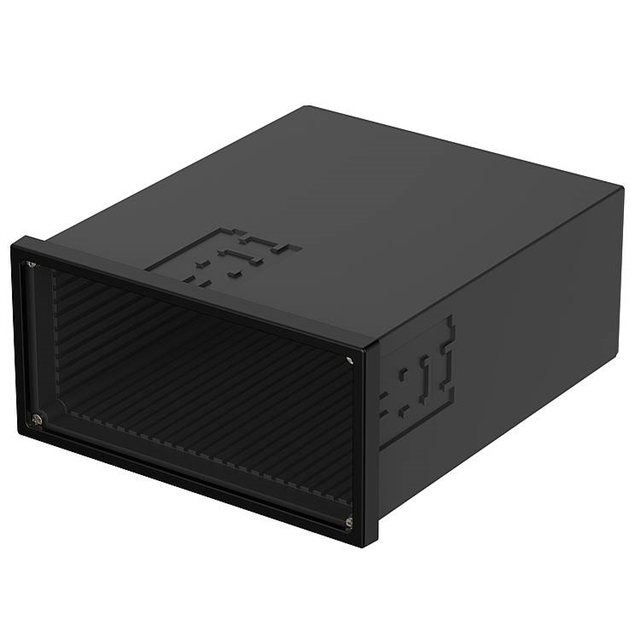

Bopla Enclosures 17741601	226.8 g	0.5 lb	72 mm	2.835 in	Open End(s)	5.669 in	166.5 mm	6.516 "	144 mm	Plastic PPE	Card Guides Flame Retardant	Black	Housing	UL94 V-1	IP40 IP65	36.9 in˛	238 cm˛

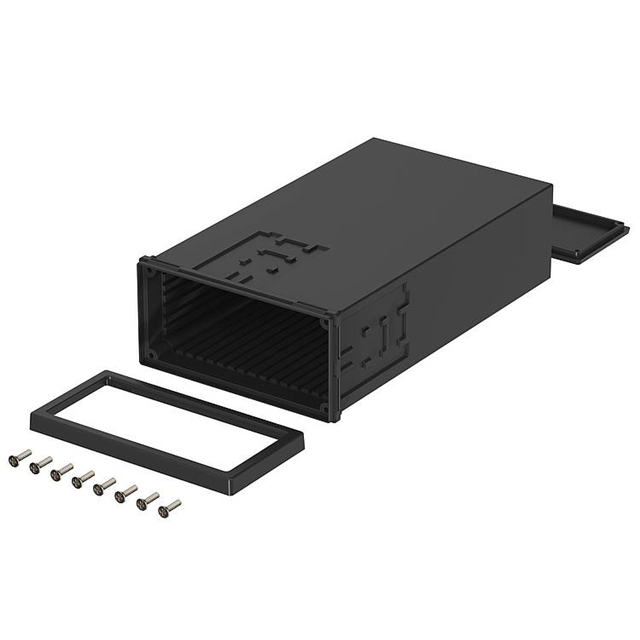

Bopla Enclosures 17941601	136.08 g	0.3 lb			Open End(s)		6.516 "		3.78 in	Plastic PPE	Card Guides Flame Retardant	Black	Housing	UL94 V-1	IP40 IP65			159 cm²	24.6 in²	165.5 mm	96 mm	1.89 in	48 mm

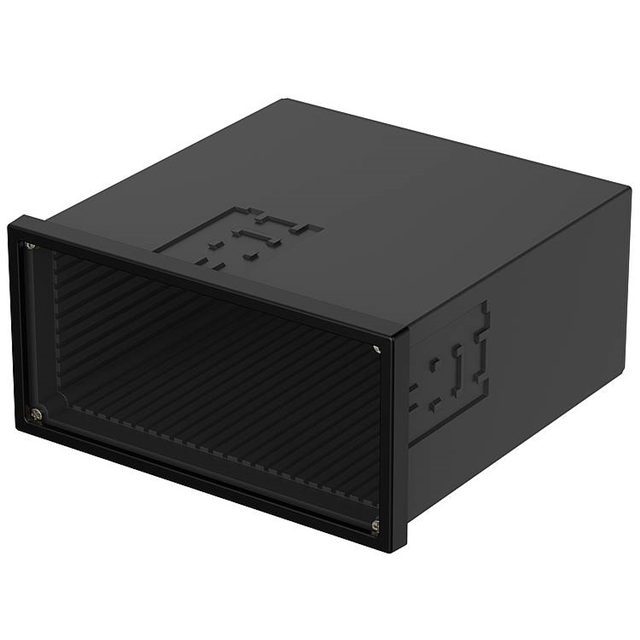

Bopla Enclosures 17741301	204.12 g	0.45 lb	72 mm	2.835 in	Open End(s)	5.591 "	144 mm	5.669 in	142 mm	Plastic PPE	Card Guides Flame Retardant	Black	Housing	UL94 V-1	IP40 IP65	31.1 in²	201 cm˛
Bopla Enclosures 37005000																								NGS Panel Meter Housings	Clamp

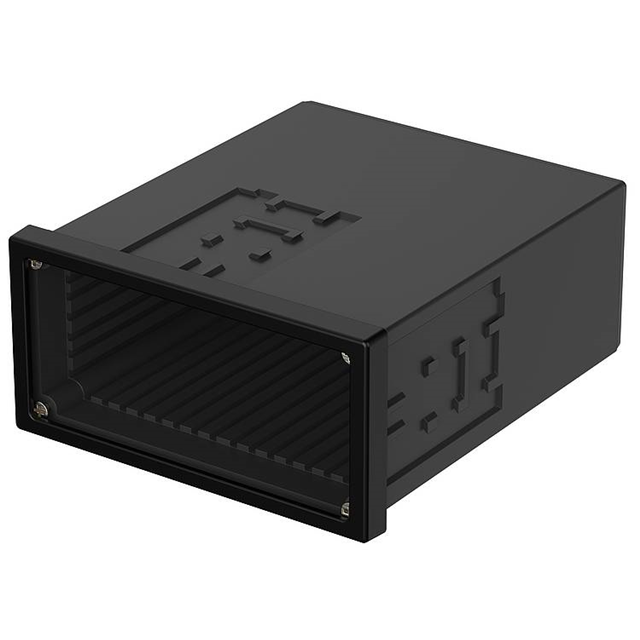

Bopla Enclosures 17941001					Open End(s)	3.78 in	109.5 mm	4.311 "	96 mm	Plastic PPE	Card Guides Flame Retardant	Black	Housing	UL94 V-1	IP40 IP65	16.2 in²	105 cm²					1.89 in	48 mm			90.72 g	0.2 lb

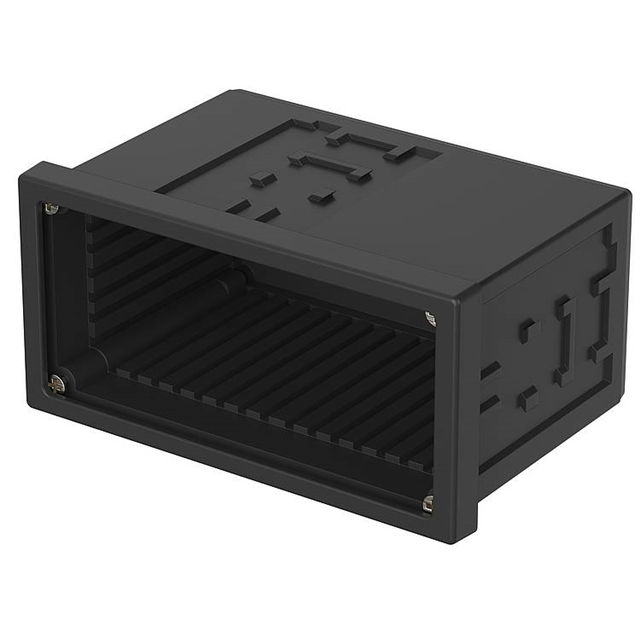

Bopla Enclosures 17940601	54.43 g	0.12 lb			Open End(s)	2.48 in	96 mm	3.78 in	63 mm	Plastic PPE	Card Guides Flame Retardant	Black	Housing	UL94 V-1	IP40 IP65	9.37 in²	60.5 cm²					1.89 in	48 mm

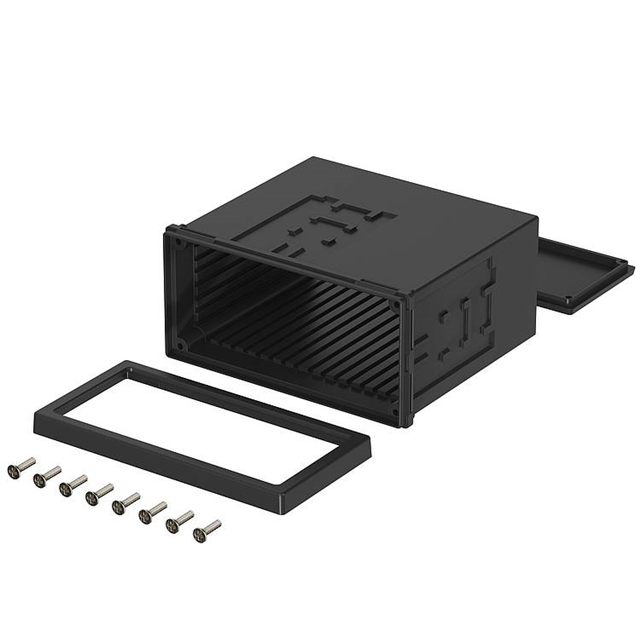

Bopla Enclosures 17940801					Open End(s)	3.346 "	96 mm	3.78 in	85 mm	Plastic PPE	Card Guides Flame Retardant	Black	Housing	UL94 V-1	IP40 IP65							1.89 in	48 mm			72.57 g	0.16 lb	81 cm²	12.6 in²
