4600 Series

Catalog

HEADER CONNECTOR,CABLE MOUNT,RECEPT,24 CONTACTS,PIN,0.1 PITCH,IDC TERMINAL,LATCH & EJECT ROHS COMPLIANT: YES

Part	Cable Termination	Number of Positions	Mounting Type	Wire Type	Contact Type	Color	Number of Rows [custom]	Connector Type	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Fastening Type	Pitch	Pitch	Row Spacing	Row Spacing	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions [custom]

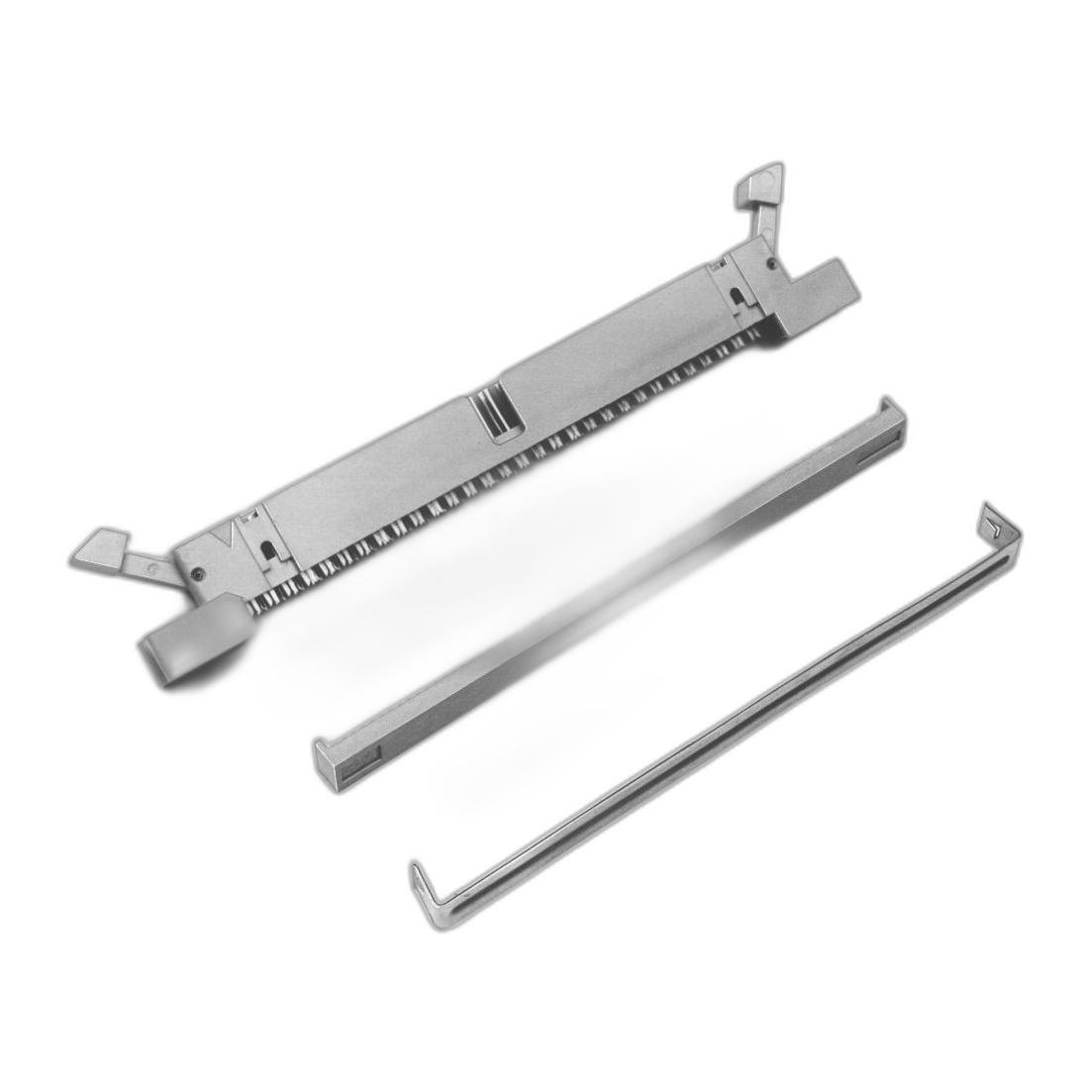

3M Electronic Specialty 4624-6300	IDC	24	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Feed Through
3M Electronic Specialty 4650-7305	IDC	50	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Closed End
3M Electronic Specialty 4630-7200	IDC	30	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Closed End
3M Electronic Specialty 4634-6201	IDC		Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Feed Through	34
3M Electronic Specialty 4664-6305	IDC	64	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Feed Through
3M Electronic Specialty 4616-6305	IDC	16	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Feed Through
3M Electronic Specialty 4616-6300	IDC	16	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Feed Through
3M Electronic Specialty 4626-6205	IDC	26	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Feed Through
3M Electronic Specialty 4640-7300	IDC	40	Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks Long	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Closed End
3M Electronic Specialty 4634-6205	IDC		Free Hanging (In-Line)	Discrete Ribbon Cable	Male Pin	Gray	2	Plug	28 AWG	Stranded or Solid	26 AWG	Latch Lock/Eject Hooks	0.1 "	2.54 mm	2.54 mm	0.1 "	Gold	30 Áin	0.76 Ám	Feed Through	34
