FF1400 Series

Manufacturer: INFINEON

Catalog

THE FF1400R12IP4 IS A 1200 V, 1400 A DUAL IGBT MODULE

Part	Input	Configuration	Vce(on) (Max) @ Vge, Ic	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]
INFINEON FF1400R12IP4BOSA1	Standard	2 Independent	2.05 V	Trench Field Stop	1200 V	Module	Chassis Mount	Module	-40 C	150 °C	82 nF	5 mA	1400 A	765000 W
INFINEON FF1400R12IP4PBOSA1	Standard	2 Independent	2.05 V	Trench Field Stop	1200 V	Module	Chassis Mount	Module	-40 C	150 °C	82 nF	5 mA	1400 A	1400000 W

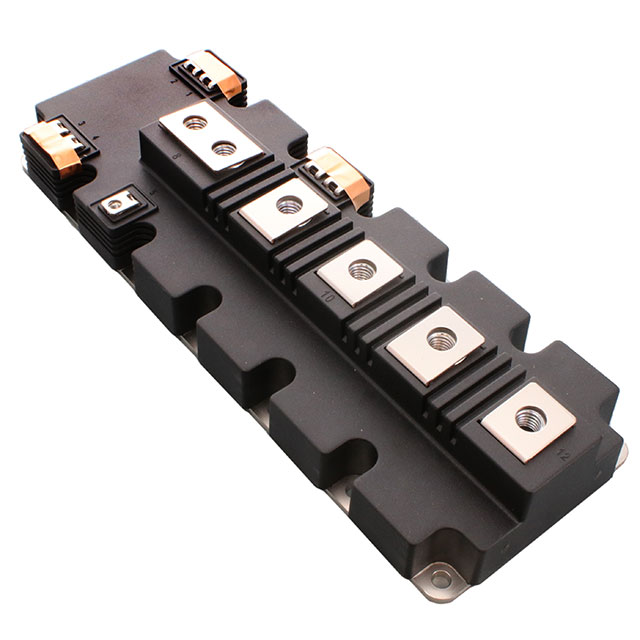

INFINEON FF1400R17IP4BOSA1	Standard	2 Independent	2.2 V	Trench Field Stop	1700 V	Module	Chassis Mount	Module	-40 C	150 °C	110 nF	5 mA	1400 A	955000 W
