LCBSA Series

Catalog

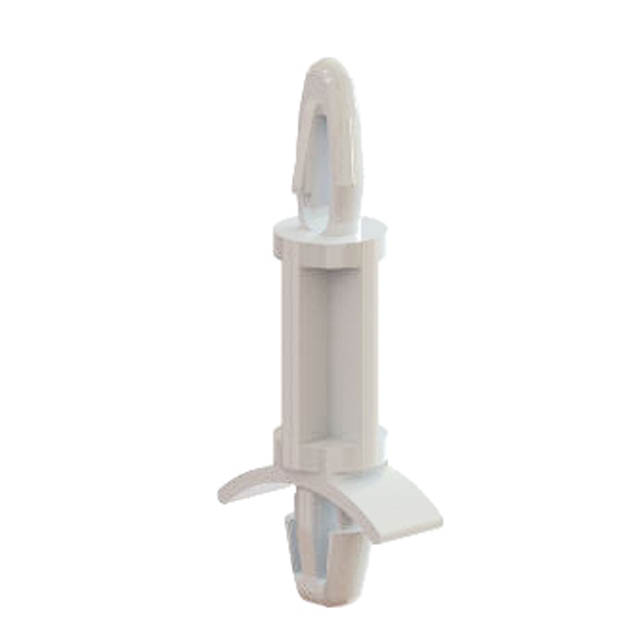

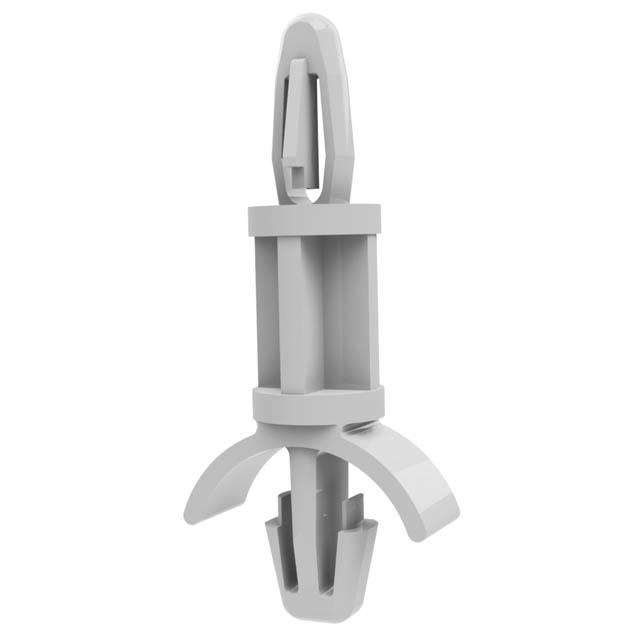

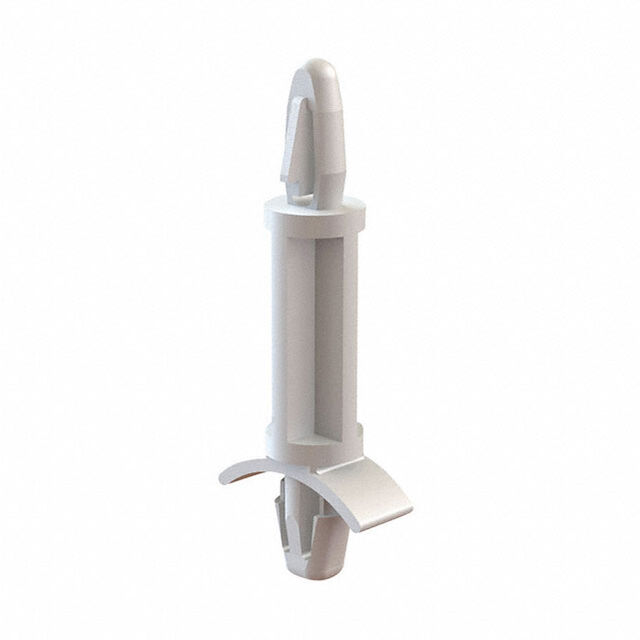

BRD SPT SNAP LOCK NYLON 3/8"

Part	Between Board Height	Between Board Height	Between Board Height	Features	Length - Overall [x]	Length - Overall [x]	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]
Essentra Components LCBSA-6-6-01	0.375 in	9.53 mm	0.375 "	Winged	1.205 in	30.6 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.141 "	0.078 "	1.98 mm	3.58 mm
Essentra Components LCBSA-3-10-01	0.625 in	15.88 mm	5 8	Winged	1.398 in	35.5 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.078 "	0.031 in	0.79 mm	1.98 mm
Essentra Components LCBSA-3-12-01	0.75 "	19.05 mm	0.75 "	Winged	1.524 in	38.7 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.078 "	0.031 in	0.79 mm	1.98 mm
Essentra Components LCBSA-6-18-19	1.125 in	28.58 mm		Winged	1.957 in	49.7 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.141 "	0.078 "	1.98 mm	3.58 mm
Essentra Components LCBSA-3-5-01	0.313 in	7.95 mm	0.3125 in	Winged	1.083 "	27.5 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.078 "	0.031 in	0.79 mm	1.98 mm
Essentra Components LCBSA-6-18-01	1.125 in	28.58 mm		Winged	1.957 in	49.7 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.141 "	0.078 "	1.98 mm	3.58 mm
Essentra Components LCBSA-3-14-01	0.875 in	22.23 mm	0.875 in	Winged	1.646 in	41.8 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.078 "	0.031 in	0.79 mm	1.98 mm
Essentra Components LCBSA-6-14-19	0.875 in	22.23 mm	0.875 in	Winged	1.705 in	43.3 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.141 "	0.078 "	1.98 mm	3.58 mm
Essentra Components LCBSA-6-14-01	0.875 in	22.23 mm	0.875 in	Winged	1.705 in	43.3 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.141 "	0.078 "	1.98 mm	3.58 mm
Essentra Components LCBSA-3-8-01	0.5 in	12.7 mm	0.5 in	Winged	1.272 in	32.3 mm	Nylon	3.99 mm	0.157 "	Snap Lock	0.09375 in	0.093 in	2.4 mm	Snap Lock	0.1875 in	0.187 in	4.75 mm	0.078 "	0.031 in	0.79 mm	1.98 mm
