XB24CZ7 Series

Catalog

ZIGBEE RF MODULE, IEEE 802.15.4, 2.405GHZ TO 2.48GHZ, SPI, UART, RP SMA CONNECTOR

Part	Power - Output	Frequency	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Mounting Type	Modulation	Current - Receiving [Min]	Current - Receiving [Max]	Package / Case	Utilized IC / Part	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Data Rate	Serial Interfaces	Current - Transmitting [Max] [x]	Current - Transmitting [Min] [x]	Memory Size
Digi International XB24CZ7SIT-004	8 dBm	2.4 GHz	RP-SMA	3.6 V	2.1 V	Zigbee®	Through Hole	DSSS	28 mA	45 mA	Module	EM357	-102 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA
Digi International XB24CZ7WIT-004	8 dBm	2.4 GHz	Integrated Wire Antenna	3.6 V	2.1 V	Zigbee®	Through Hole	DSSS	28 mA	45 mA	Module	EM357	-102 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA
Digi International XB24CZ7UIS-004	8 dBm	2.4 GHz	Antenna Not Included U.FL	3.6 V	2.1 V	Zigbee®	Surface Mount	DSSS	28 mA	45 mA	Module	EM357	-100 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA
Digi International XB24CZ7RIS-004	8 dBm	2.4 GHz	Antenna Not Included	3.6 V	2.1 V	Zigbee®	Surface Mount	DSSS	28 mA	45 mA	Module	EM357	-100 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA

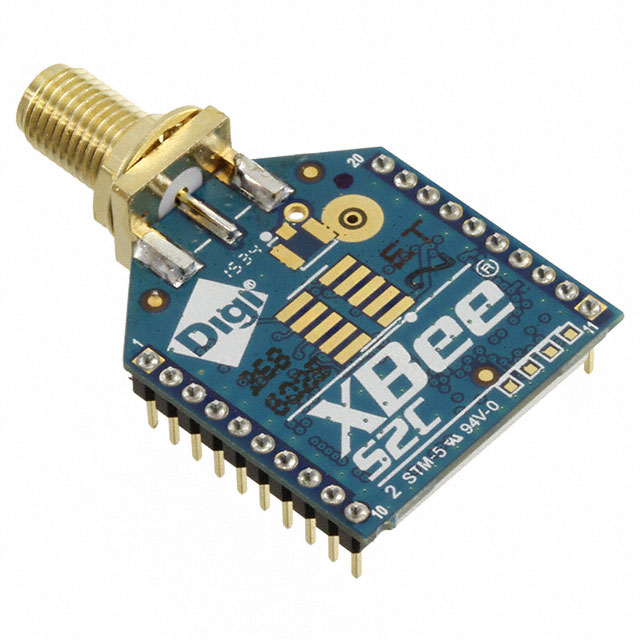

Digi International XB24CZ7SITB003	8 dBm	2.4 GHz	RP-SMA	3.6 V	2.1 V	Zigbee®	Through Hole	DSSS	28 mA	45 mA	Module	EM357	-102 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA	2 kB 32 kB
Digi International XB24CZ7UIT-004	8 dBm	2.4 GHz	Antenna Not Included U.FL	3.6 V	2.1 V	Zigbee®	Through Hole	DSSS	28 mA	45 mA	Module	EM357	-102 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA
Digi International XB24CZ7PITB003	8 dBm	2.4 GHz	Integrated Trace	3.6 V	2.1 V	Zigbee®	Through Hole	DSSS	28 mA	45 mA	Module	EM357	-102 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA	2 kB 32 kB
Digi International XB24CZ7UISB003	8 dBm	2.4 GHz	Antenna Not Included U.FL	3.6 V	2.1 V	Zigbee®	Surface Mount	DSSS	28 mA	45 mA	Module	EM357	-102 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA	2 kB 32 kB

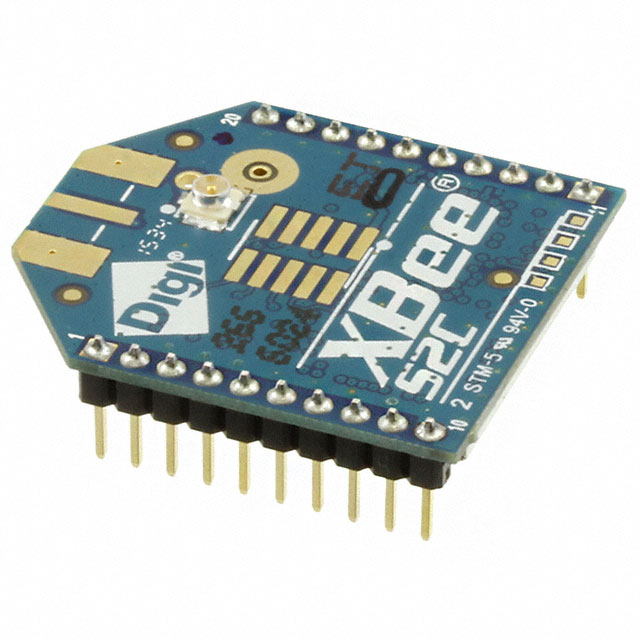

Digi International XB24CZ7UITB003	8 dBm	2.4 GHz	Antenna Not Included U.FL	3.6 V	2.1 V	Zigbee®	Through Hole	DSSS	28 mA	45 mA	Module	EM357	-102 dBm	85 °C	-40 C	802.15.4	1 Mbps	SPI UART	59 mA	33 mA	2 kB 32 kB
