PMP23 Series

Catalog

INDUSTRIAL PRESSURE SENSORS PRESSURE SENSOR 4-20MA, PLUG M12, IP65/67 NEMA TYPE 4X ENCL., 10BAR/1MPA/150PSI GAUGE, OVERLOAD: 40BAR/4MPA/600PSI, SENSOR RANGE; PSI, TRI-CLAMP ISO2852 DN25-38 (1-1/2") DIN32676 DN25-38, EHEDG, 3A

Part	Accuracy	Features	Port Size	Port Size	Port Size	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Termination Style	Applications	Output Type	Output [Max]	Output [Min]	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure
Endress+Hauser PMP23-AA1M1PF3CJ	0.3 %	Temperature Compensated	38.1 mm	Male Tri Clamp		-15 PSI	1034.21 kPa	-103.42 kPa	150 PSI	4136.85 kPa	600 PSI	Threaded	Cylinder Threaded	85 °C	-40 C	10 VDC	30 VDC	Gauge	Connector	Industrial Automation	Analog Current	20 mA	4 mA

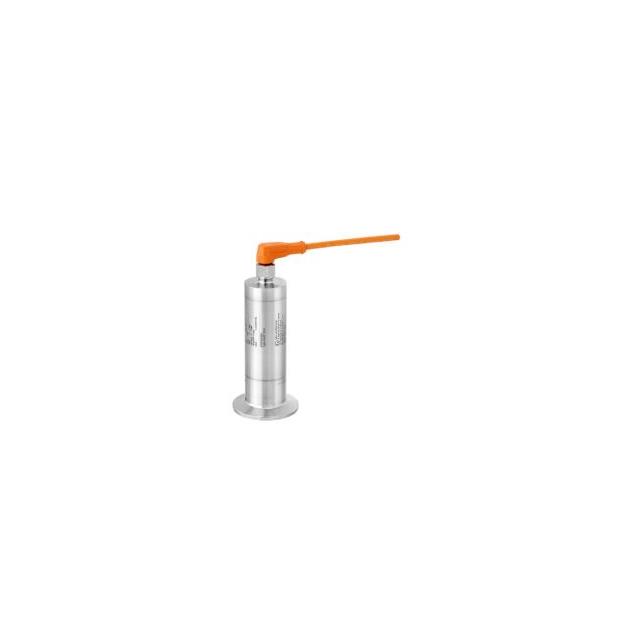

Endress+Hauser PMP23-AA1M1HB3CJ	0.3 %		38.1 mm	Male Tri Clamp		-100 kPa -14.5 PSI			14.5 PSI 100 kPa		58.02 PSI	Threaded	Cylinder Threaded	85 C	-40 ¯C	10 VDC	30 VDC	Gauge	Connector	Industrial Automation	Analog Current	20 mA	4 mA	400 kPa
Endress+Hauser PMP23-AA7M1PB3CJ	0.3 %	Temperature Compensated	38.1 mm	Male Tri Clamp		-15 PSI	1034.21 kPa	-103.42 kPa	150 PSI	4136.85 kPa	600 PSI	Threaded	Cylinder Threaded	70 °C	-40 C	10 VDC	30 VDC	Gauge	Connector	Industrial Automation	Analog Current	20 mA	4 mA
Endress+Hauser PMP23-AA1N1FF3EJ	0.3 %	Temperature Compensated	50.8 mm	Male Tri Clamp	2 in							Threaded	Cylinder Threaded	85 °C	-40 C	10 VDC	30 VDC	Gauge	Connector	Industrial Automation	Analog Current	20 mA	4 mA	165.47 kPa	24 PSI	41.37 kPa	6 PSI
Endress+Hauser PMP23-AA1V1HF3CJ	0.3 %		17.2 mm	Female NPT	0.677 in	5.8 PSI 40 kPa			580.15 PSI 4000 kPa			Threaded	Cylinder Threaded	85 °C	-40 C	10 VDC	30 VDC	Absolute Gauge	Connector	Industrial Automation	Analog Current	20 mA	4 mA	16000 kPa	2320.6 PSI
