MEAS SG Series

Catalog

SENSOR LINEAR 3048MM CONNECTOR

Part	For Measuring	Technology	Linear Range [Min]	Linear Range [Max]	Linear Range [Max]	Linear Range [Min]	Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply	Actuator Type	Output	Termination Style	Package / Case	Resistance Tolerance	Voltage - Supply [Min]	Voltage - Supply [Max]	Output [Max]	Output [Min]

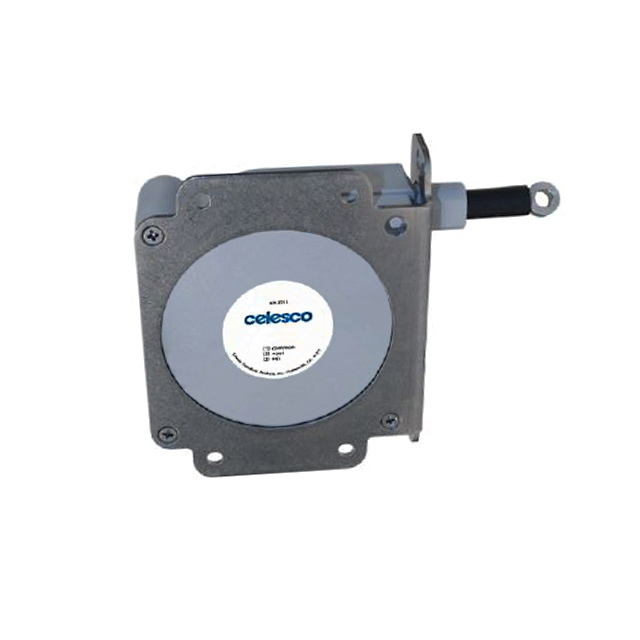

TE Connectivity AMP Connectors SG1-120-3	Linear Position	Resistive	0 "	120 "	3048 mm	0 mm	10000 Ohms	70 °C	-40 C	Custom	30 VDC	String Potentiometer	Analog Voltage	Connector	Box with Connector	10%
TE Connectivity AMP Connectors SG1-80
TE Connectivity AMP Connectors SG1-80-2	Linear Position	Resistive	0 "	80 "	2032 mm	0 mm	10000 Ohms	70 °C	-40 C	Custom	30 VDC	String Potentiometer	Analog Voltage	Wire Leads	Box with Connector	10%

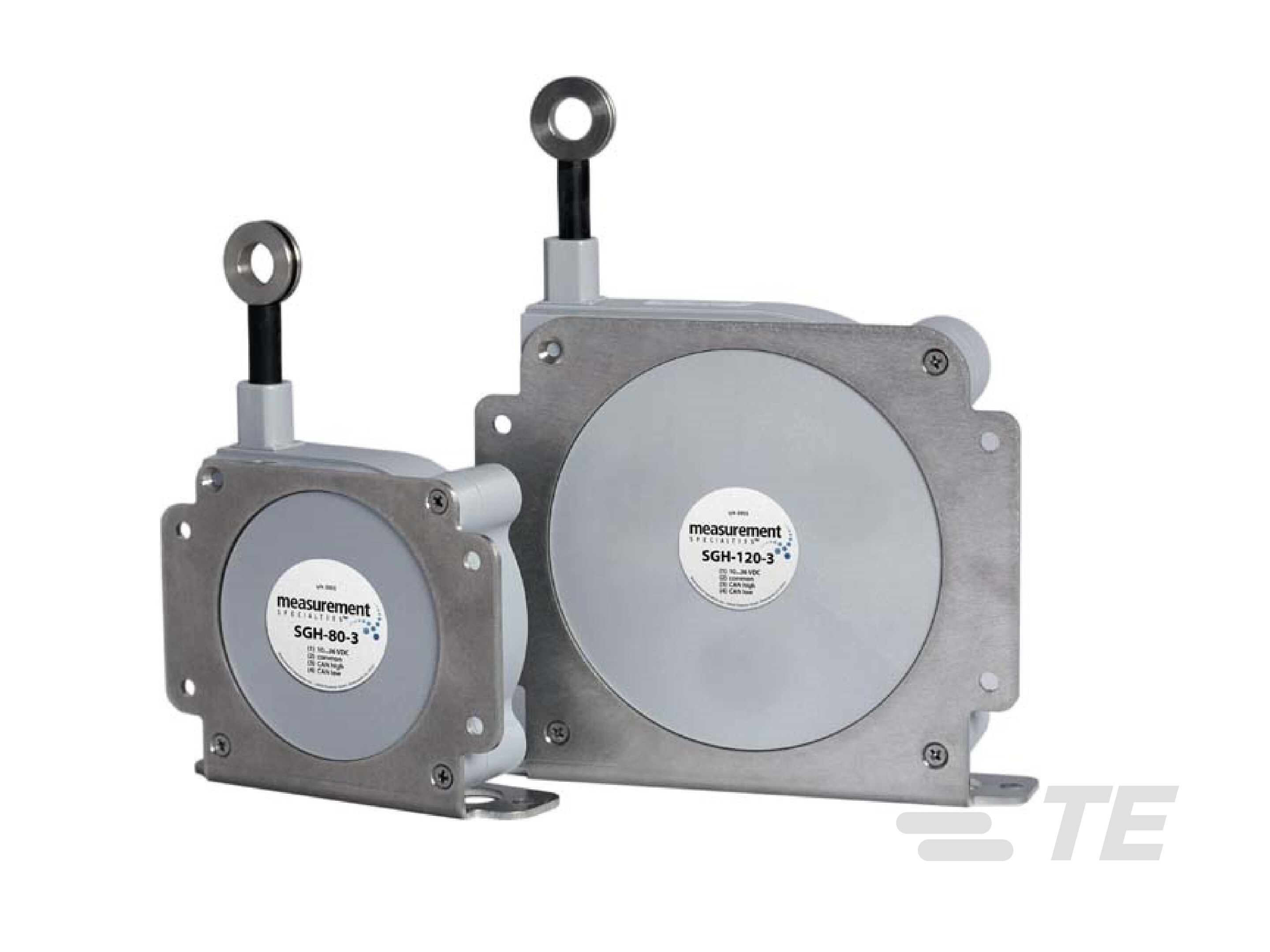

TE Connectivity AMP Connectors SGH-80-4
TE Connectivity AMP Connectors SGJ-80-4-TR
TE Connectivity AMP Connectors SGJ-80-4
TE Connectivity AMP Connectors SG1-120
TE Connectivity AMP Connectors SGD-120-3	Linear Position	Resistive	0 "	120 "	3048 mm	0 mm	10000 Ohms	70 °C	-18 °C	Custom		String Potentiometer		Connector	Box with Connector	10%	8 V	40 VDC	20 mA	4 mA
TE Connectivity AMP Connectors SG1-80-3	Linear Position	Resistive	0 "	80 "	2032 mm	0 mm	10000 Ohms	70 °C	-40 C	Custom	30 VDC	String Potentiometer	Analog Voltage	Connector	Box with Connector	10%
TE Connectivity AMP Connectors SG1-120-2	Linear Position	Resistive	0 "	120 "	3048 mm	0 mm	10000 Ohms	70 °C	-40 C	Custom	30 VDC	String Potentiometer	Analog Voltage	Wire Leads	Box with Connector	10%
