ANT-GNCP Series

Catalog

ANTENNA GNSS L1 15X15 LNA 1.13 UFL

Part	Gain	Termination	Number of Bands	Frequency Range [Min]	Frequency Range [Max]	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Features	RF Family/Standard	Mounting Type	Frequency (Center/Band)	Applications	Height (Max) [diameter]	Height (Max) [diameter]	Antenna Type	VSWR	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max) [z]	VSWR [Min]	VSWR [Max]

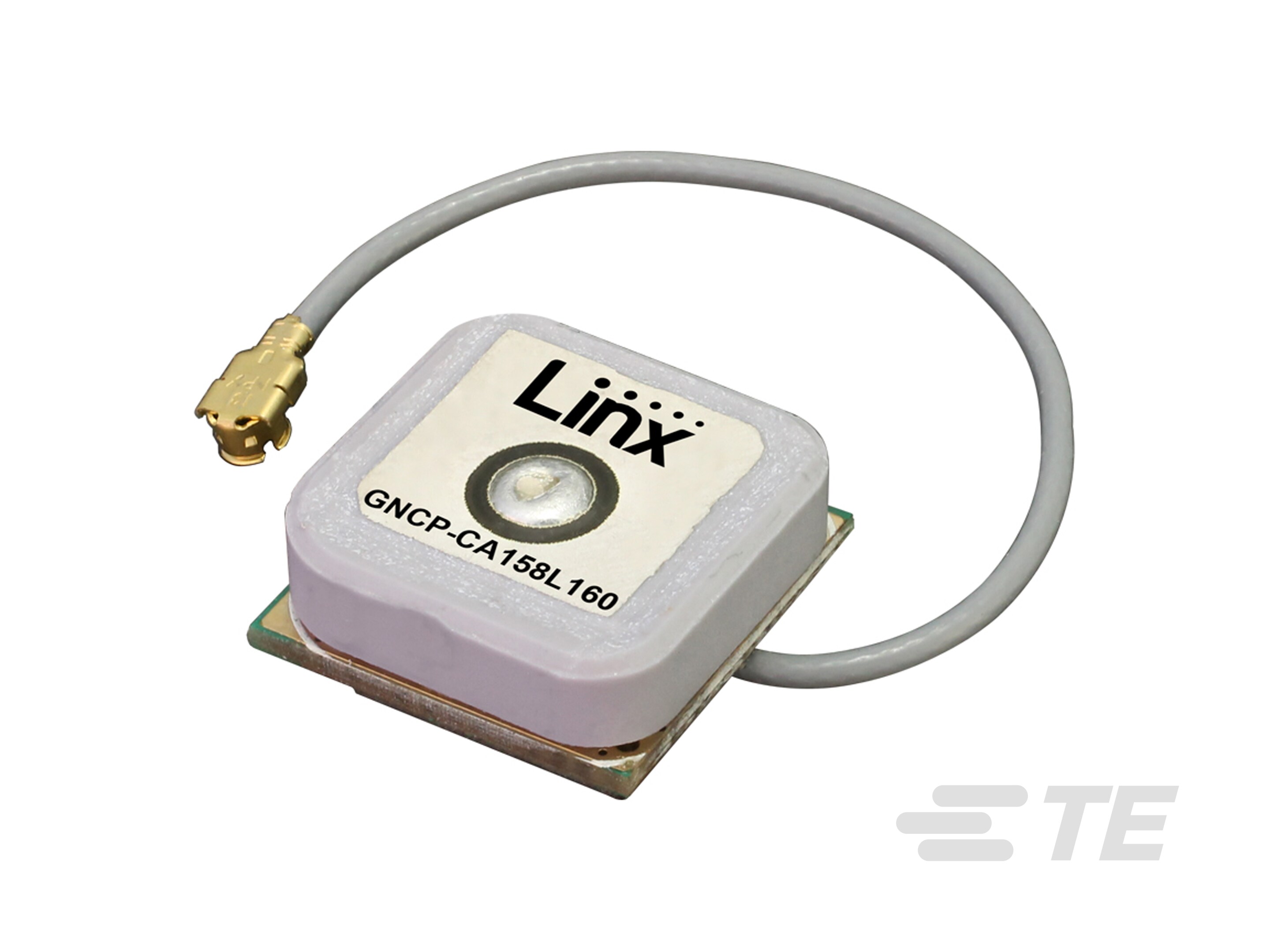

TE Connectivity AMP Connectors ANT-GNCP-CA158L160	6.7 dBi 12.4 dB 13.9 dBi	I-PEX MHF1 U.FL (UMCC)	4	1.559 GHz 1.567 GHz 1.5876 GHz 1.593 GHz	1.563 GHz 1.5836 GHz 1.5917 GHz 1.6086 GHz	2 GHz	1 GHz	UHF	Cable - 60mm LNA	Navigation	Surface Mount	1.561 GHz 1.575 GHz 1.5897 GHz 1.602 GHz	BeiDou Galileo GLONASS GNSS GPS	6.6 mm	0.26 in	Ceramic Patch	1.4 1.5 2.4 3.5

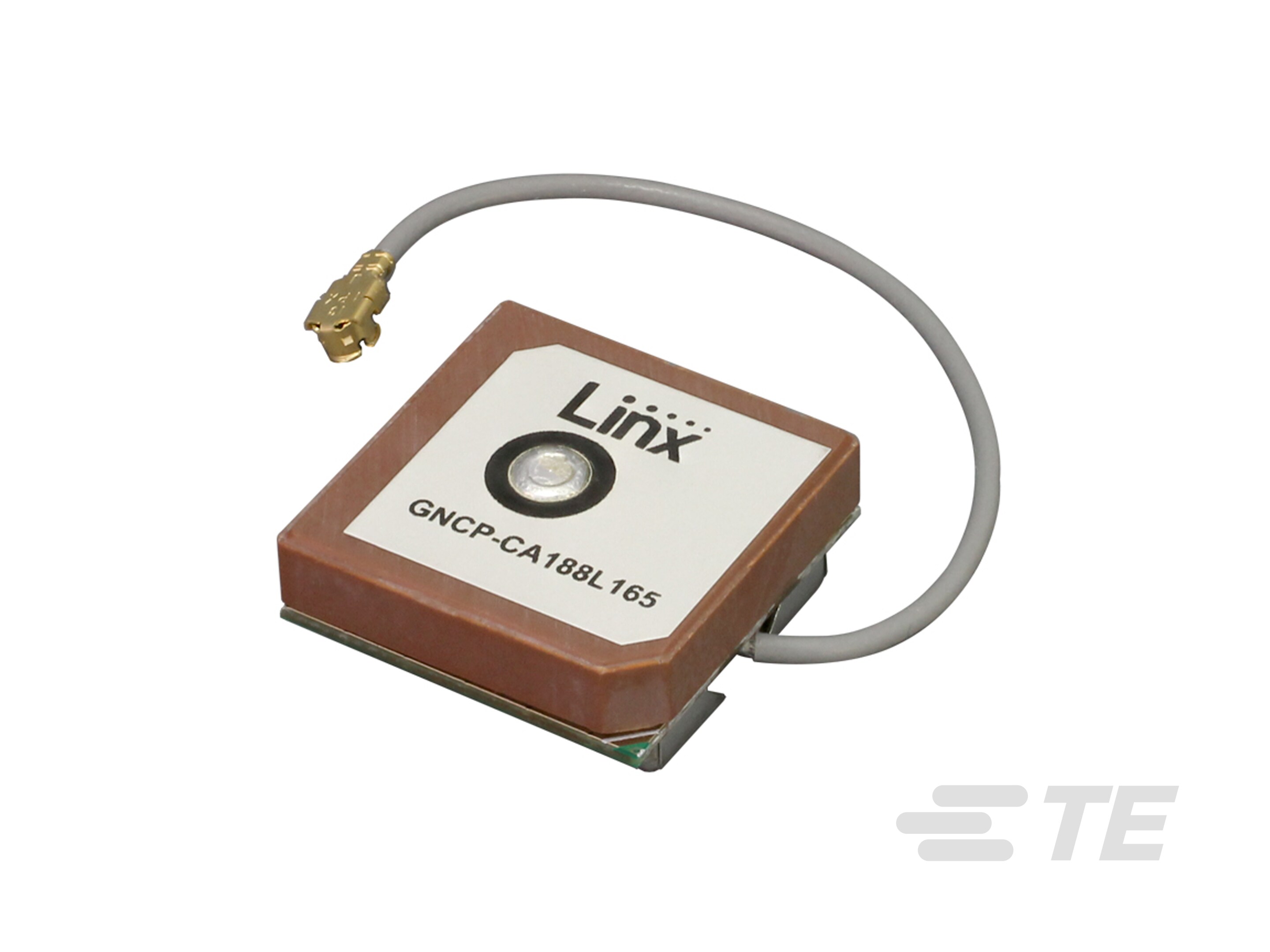

TE Connectivity AMP Connectors ANT-GNCP-CA188L165	10.6 dB 13.7 dB 14.1 dBi	I-PEX MHF1 U.FL (UMCC)	4	1.559 GHz 1.567 GHz 1.5876 GHz 1.593 GHz	1.563 GHz 1.5836 GHz 1.5917 GHz 1.6086 GHz	2 GHz	1 GHz	UHF	Cable - 65mm LNA	Navigation	Surface Mount	1.561 GHz 1.575 GHz 1.5897 GHz 1.602 GHz	BeiDou Galileo GLONASS GNSS GPS			Ceramic Patch	1.1	7.1 mm	0.28 in

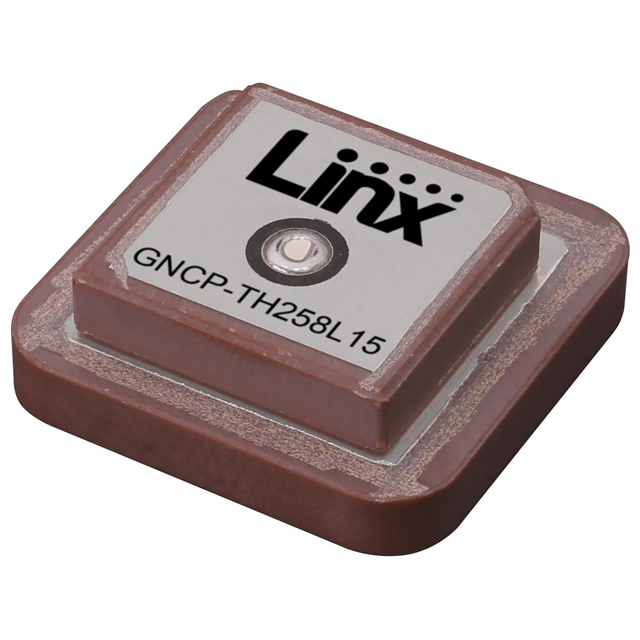

TE Connectivity AMP Connectors ANT-GNCP-TH258L15	1 dBi 5.6 dBi	Pin	2	1.17 GHz 1.5531 GHz	1.183 GHz 1.6086 GHz	2 GHz	1 GHz	UHF		Navigation	Adhesive	1.176 GHz 1.5808 GHz	BeiDou Galileo GLONASS GNSS GPS			Ceramic Patch		8 mm		0.315 in	5.9	6.4
