PCA.0E Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Shielding	Number of Positions	Primary Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Shell Finish	Material Flammability Rating	Color	Contact Material	Shell Size - Insert	Features	Shell Material	Mounting Type	Contact Finish - Mating	Insert Material	Connector Type	Backshell Material, Plating	Current Rating (Amps)	Orientation	Cable Opening [Max] [custom]	Mating Cycles	Housing Color	Body Material	Center Contact Plating	Impedance	Contact Termination	Dielectric Material	Connector Style	Body Finish	Cable Group	Shield Termination	Center Contact Material	Number of Ports	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
LEMO PCA.0E.304.CLLC30	Shielded	4	Metal	IP66/IP68	-55 °C	200 °C	Push-Pull	0.118 in	3 mm	0.102 in	2.6 mm	Chrome	UL94 V-0	Silver	Brass Bronze	304	Backshell	Brass	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Female Sockets Male Pins Receptacle	Brass Chrome	7 A	Keyed
LEMO PCA.0E.303.CLLC35	Shielded		Metal	IP66/IP68	-55 °C	200 °C	Push-Pull	0.138 in		0.122 in	3.1 mm	Chrome	UL94 V-0	Silver	Brass Bronze	303	Backshell	Brass	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Female Sockets Male Pins Receptacle	Brass Chrome	7 A	Keyed	3.5 mm
LEMO PCA.0E.250.CTLC50				IP68 - Dust Tight Waterproof	-55 °C	200 °C	Push-Pull												Free Hanging (In-Line)			Female Socket Receptacle					5000	Silver	Brass	Gold	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Coaxial	Chrome	174 174A 178B 188A 196A 316B RG-122	Clamp	Beryllium Copper
LEMO PCA.0E.250.CTLC45				IP68 - Dust Tight Waterproof	-55 °C	200 °C	Push-Pull												Free Hanging (In-Line)			Female Socket Receptacle					5000	Silver	Brass	Gold	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Coaxial	Chrome	174 174A 178B 188A 196A 316B RG-122	Clamp	Beryllium Copper	1

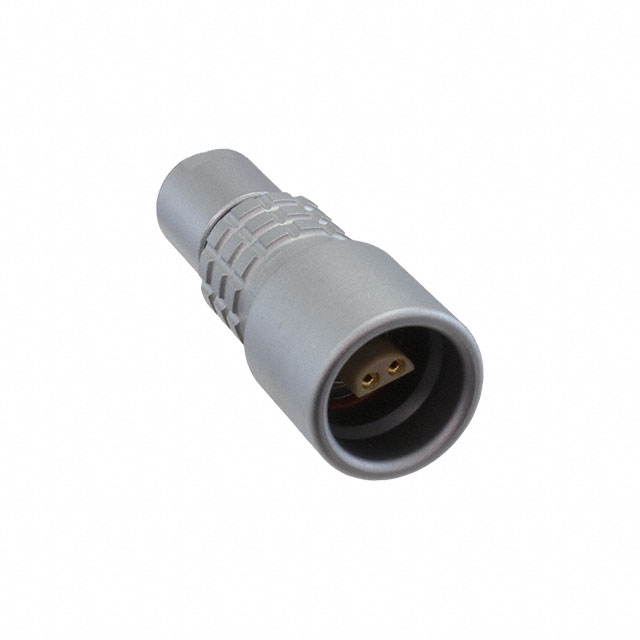

LEMO PCA.0E.304.CLLC40	Shielded	4	Metal	IP66/IP68	-55 °C	200 °C	Push-Pull					Chrome	UL94 V-0	Silver	Brass Bronze	304	Backshell	Brass	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Female Sockets Male Pins Receptacle	Brass Chrome	7 A	Keyed															0.142 in 0.157 in	4 mm	3.6 mm
LEMO PCA.0E.303.CLLC40	Shielded		Metal	IP66/IP68	-55 °C	200 °C	Push-Pull					Chrome	UL94 V-0	Silver	Brass Bronze	303	Backshell	Brass	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Female Sockets Male Pins Receptacle	Brass Chrome	7 A	Keyed															0.142 in 0.157 in	4 mm	3.6 mm
LEMO PCA.0E.650.CTLC35Z				IP68 - Dust Tight Waterproof	-55 °C	200 °C	Push-Pull												Free Hanging (In-Line)			Female Socket Receptacle					5000	Silver	Brass	Gold	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Triaxial	Chrome	178 RG-174	Clamp	Beryllium Copper
LEMO PCA.0E.116.CLLC15	Shielded	1	Metal	IP66/IP68	-55 °C	200 °C	Push-Pull					Chrome	UL94 V-0	Silver	Bronze	116	Backshell	Brass	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Brass Chrome	12 A	Keyed																		0.051 in	1.5 mm	0.059 in	1.3 mm
LEMO PCA.0E.250.CTLC35				IP68 - Dust Tight Waterproof	-55 °C	200 °C	Push-Pull												Free Hanging (In-Line)			Female Socket Receptacle					5000	Silver	Brass	Gold	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Coaxial	Chrome	174 174A 178B 188A 196A 316B RG-122	Clamp	Beryllium Copper	1
LEMO PCA.0E.304.CLLC35Z	Shielded	4	Metal	IP66/IP68	-55 °C	200 °C	Push-Pull	0.138 in		0.122 in	3.1 mm	Chrome	UL94 V-0	Silver	Brass Bronze	304	Backshell	Brass	Free Hanging (In-Line)	Gold	Polyetheretherketone (PEEK)	Female Sockets Male Pins Receptacle	Brass Chrome	7 A	Keyed	3.5 mm
