DFKF Series

Catalog

DFKF, 1.2 A, 0.6 MH, 200 M?, INDUCTOR ROHS COMPLIANT: YES

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - AC	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Package / Case	Mounting Type	DC Resistance (DCR) (Max)

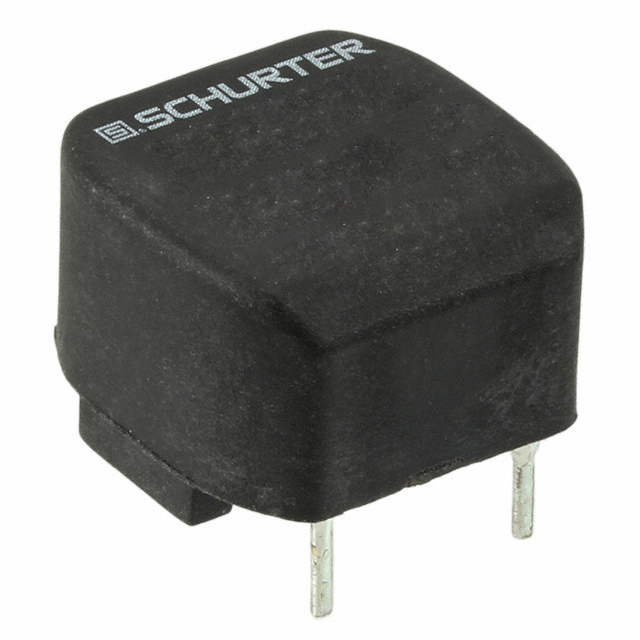

SCHURTER Inc. DFKF-18-0003	0.717 in	0.701 in	18.2 mm	17.8 mm	440 V	1.2 A	100 °C	-25 °C	200 mOhm	2	Radial - 4 Leads	Through Hole

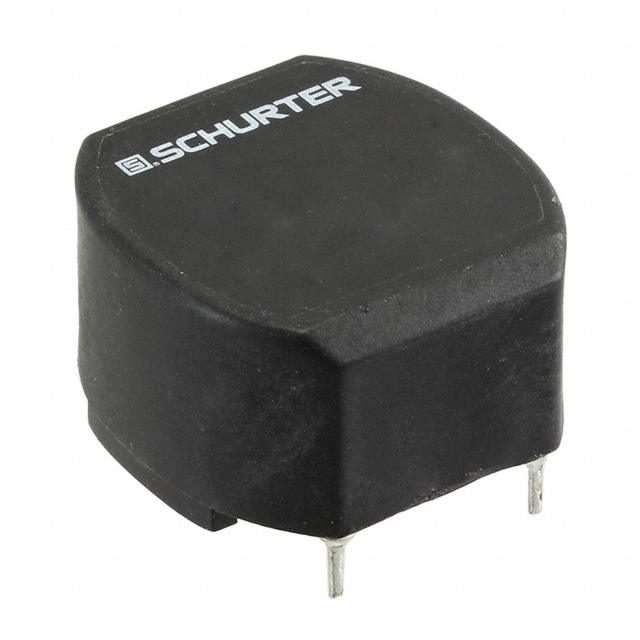

SCHURTER Inc. DFKF-28-0005	1.114 "	1.079 in	28.3 mm	27.4 mm	440 V	4 A	100 °C	-25 °C	28 mOhm	2	Radial - 4 Leads	Through Hole
SCHURTER Inc. DFKF-28-0004	1.114 "	1.079 in	28.3 mm	27.4 mm	440 V	2 A	100 °C	-25 °C	100 mOhm	2	Radial - 4 Leads	Through Hole
SCHURTER Inc. DFKF-28-0002	1.114 "	1.079 in	28.3 mm	27.4 mm	440 V	1 A	100 °C	-25 °C	360 mOhm	2	Radial - 4 Leads	Through Hole
SCHURTER Inc. DFKF-18-0006	0.717 in	0.701 in	18.2 mm	17.8 mm	440 V	4 A	100 °C	-25 °C	16 mOhm	2	Radial - 4 Leads	Through Hole
SCHURTER Inc. DFKF-18-0005	0.717 in	0.701 in	18.2 mm	17.8 mm	440 V	2 A	100 °C	-25 °C	60 mOhm	2	Radial - 4 Leads	Through Hole
SCHURTER Inc. DFKF-28-0006	1.114 "	1.079 in	28.3 mm	27.4 mm	440 V	6.3 A	100 °C	-25 °C	13 mOhm	2	Radial - 4 Leads	Through Hole
SCHURTER Inc. DFKF-28-0001	1.114 "	1.079 in	28.3 mm	27.4 mm	440 V	600 mA	100 °C	-25 °C		2	Radial - 4 Leads	Through Hole	1 Ohm
