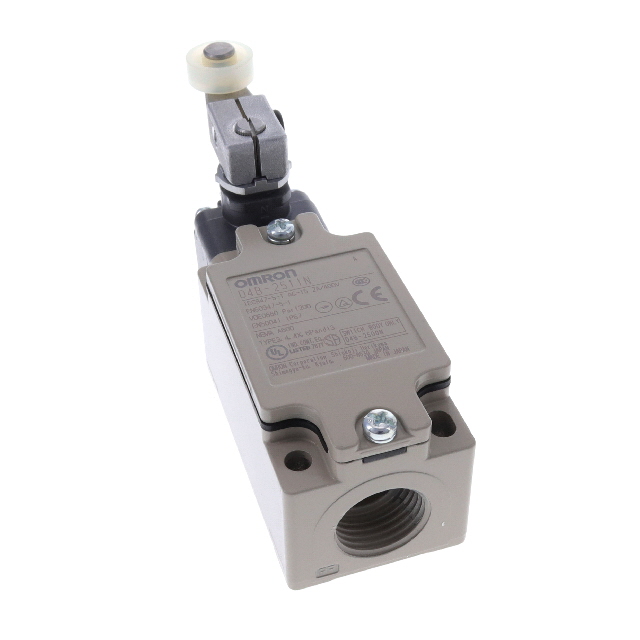

D4B-2511 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION DPST 10A 120V
| Part | Release Force | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Ingress Protection | Operating Position | Switch Function | Electrical Life | Voltage Rating - DC | Current Rating (Amps) | Pretravel | Overtravel [custom] | Mechanical Life | Operating Force | Actuator Type | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 150 gf | 120 V | 80 °C | -40 C | Screw Terminal | IP67 - Dust Tight Waterproof | 21 ° | Off-Mom On-Mom | 500000 Cycles | 30 V | 6 A 10 A | 21 ° | 50 ° | 10000000 Cycles | 960 gf | Roller Side Rotary | Chassis Mount | DPST-NO/NC |
