053266 Series
Manufacturer: Molex
Beta
⌘K

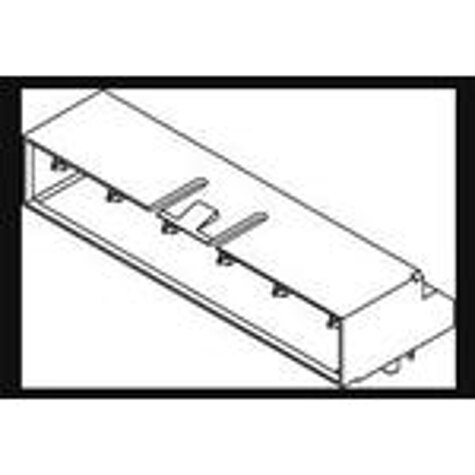

7.0 WTB WAFER ASSY RA 8CKT
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Contact Shape | Contact Material | Insulation Material | Style | Number of Positions | Contact Finish - Post | Voltage Rating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Fastening Type | Connector Type | Contact Type | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Mounting Type | Current Rating (Amps) | Insulation Color | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 2.54 µm | 100 µin | Board Guide | Rectangular | Brass | Polybutylene Terephthalate (PBTP) Glass Filled | Board to Cable/Wire | 8 | Tin | 250 VDC | 8 | -40 °C | 105 ░C | 1 | 6 A | 2.54 çm | 100 çin | Unshrouded | Locking Ramp | Header | Male Pin | Solder | 0.276 in | 7 mm | UL94 V-0 | Through Hole Right Angle | |||||||
 Molex | 1.02 Ám | 40 Áin | Board Guide | Rectangular | Brass | Polybutylene Terephthalate (PBT) Glass Filled | Board to Cable/Wire | Tin | 250 VAC | -40 °C | 105 ░C | 1 | 1.02 µm | 40 µin | Shrouded - 4 Wall | Locking Ramp | Header | Male Pin | Solder | 0.276 in | 7 mm | UL94 V-0 | Through Hole Right Angle | Varies by Wire Gauge | Black | 0.311 in | 7.9 mm | All | 3.5 mm | 0.138 in |
