68468 Series

Catalog

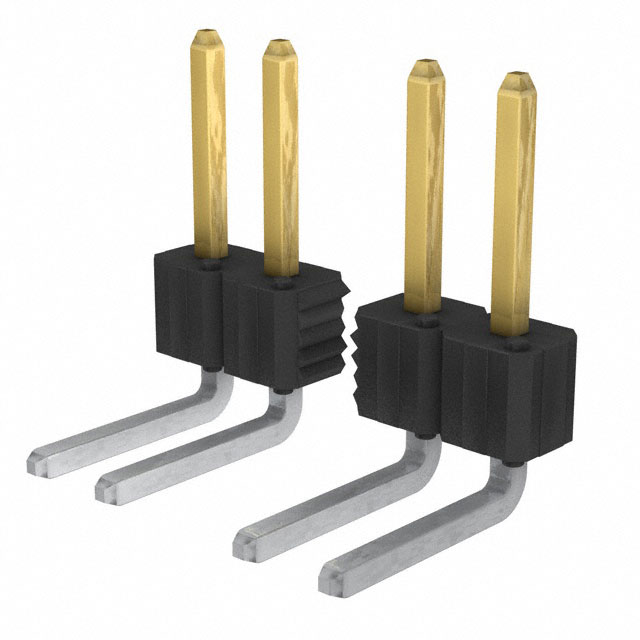

CONN HEADER R/A 36POS 2.54MM

Part	Mounting Type	Number of Rows	Contact Shape	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Type	Number of Positions	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Connector Type
Amphenol ICC (FCI) 68468-236	Through Hole Right Angle	1	Square	Solder	0.1 in	2.54 mm	Gold or Gold GXT™	Male Pin	36	All	0.095 in	2.41 mm	Black	0.195 in	4.95 mm	Push-Pull	15 µin	0.38 µm	Unshrouded	UL94 V-0	0.23 in	5.84 mm	Phosphor Bronze	Header
Amphenol ICC (FCI) 68468-236HLF	Through Hole Right Angle	1	Square	Solder	0.1 in	2.54 mm	Gold or Gold GXT™	Male Pin	36	All	0.095 in	2.41 mm	Black	0.195 in	4.95 mm	Push-Pull	15 µin	0.38 µm	Unshrouded	UL94 V-0	0.23 in	5.84 mm	Phosphor Bronze	Header
Amphenol ICC (FCI) 68468-436	Through Hole Right Angle	1	Square	Solder	0.1 in	2.54 mm		Male Pin	36	All	0.095 in	2.41 mm	Black	0.195 in	4.95 mm	Push-Pull	100 çin	2.54 çm	Unshrouded	UL94 V-0	0.23 in	5.84 mm	Phosphor Bronze	Header
Amphenol ICC (FCI) 68468-536	Through Hole Right Angle	1	Square	Solder	0.1 in	2.54 mm	Gold or Gold GXT™	Male Pin	36	All	0.095 in	2.41 mm	Black	0.195 in	4.95 mm	Push-Pull	15 µin	0.38 µm	Unshrouded	UL94 V-0	0.23 in	5.84 mm	Phosphor Bronze	Header
