337-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 8 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Contact Finish | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Gender | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Features | Mounting Type | Color | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions | Contact Type | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

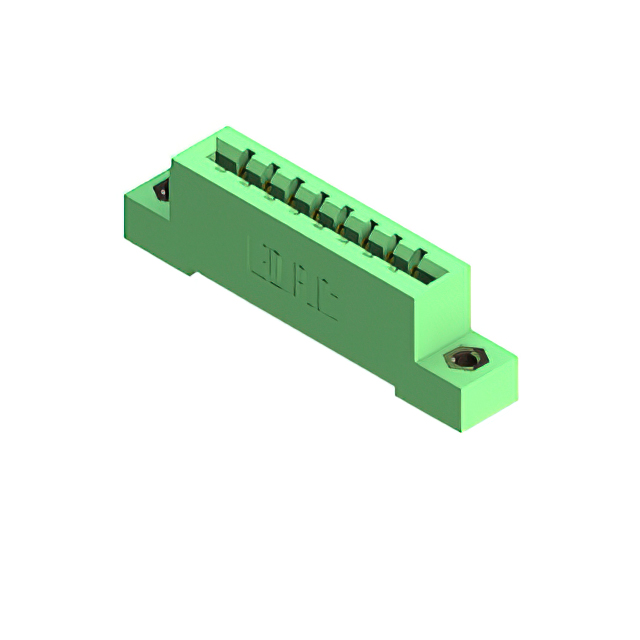

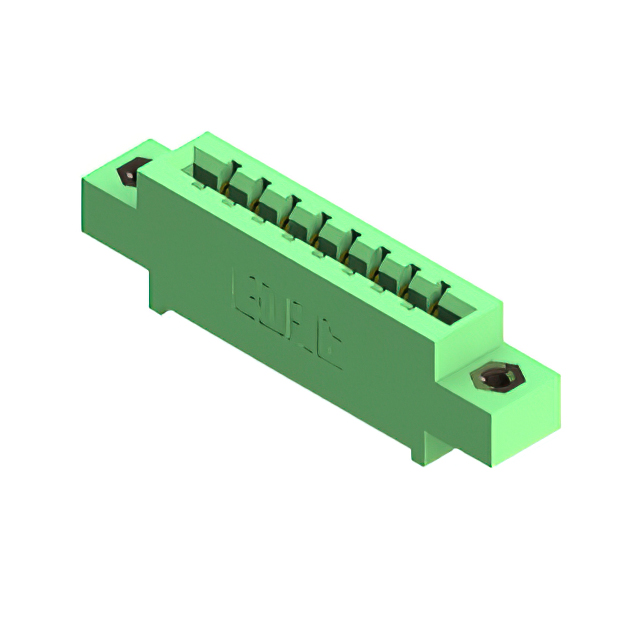

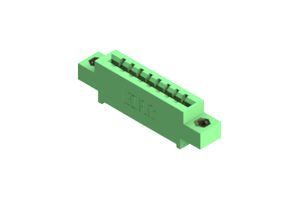

 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | Female | Wire Wrap | -40 C | 105 ░C | 8 | Card Guides | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | ||

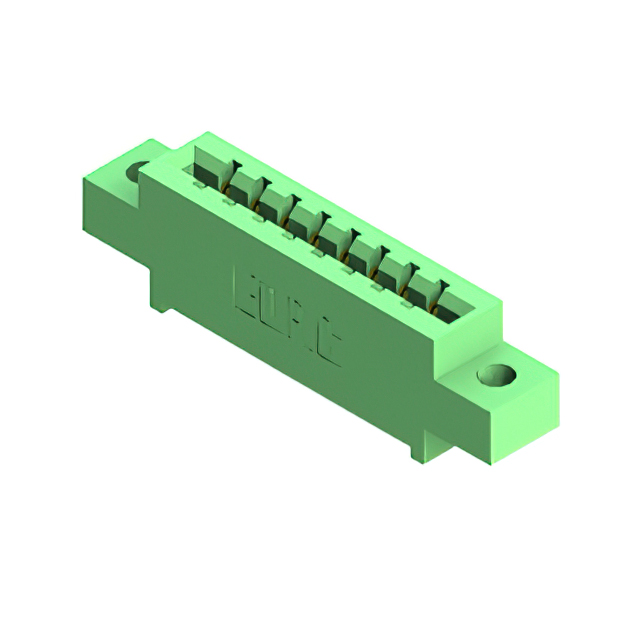

 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | Female | Wire Wrap | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | |

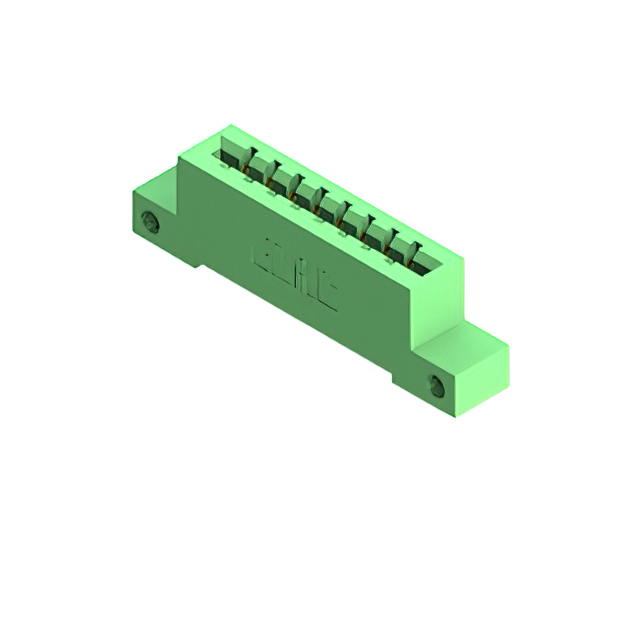

 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount M3 Threaded Insert Top Opening | Female | Wire Wrap | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | Female | Solder | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Side Opening Unthreaded | Female | Wire Wrap | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Solder | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | 3.96 mm | 0.156 " | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Solder | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | Female | Wire Wrap | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Threaded Insert Top Mount Opening | Female | Solder | -40 C | 105 ░C | 8 | Through Hole | Green | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | 1 | 8 | Cantilever | 3.96 mm | 0.156 in |
