Elcon Drawer Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEAVY DUTY POWER CONNECTORS CONN,SKT,LWER DRAWER

Part	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Termination	Connector Type	Number of Positions Loaded	Connector Style	Mounting Type	Features	Contact Layout, Typical	Number of Rows [custom]	Connector Usage	Number of Positions [custom]	Number of Positions [custom]	Note	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish	Number of Positions [custom]	Number of Positions [custom]

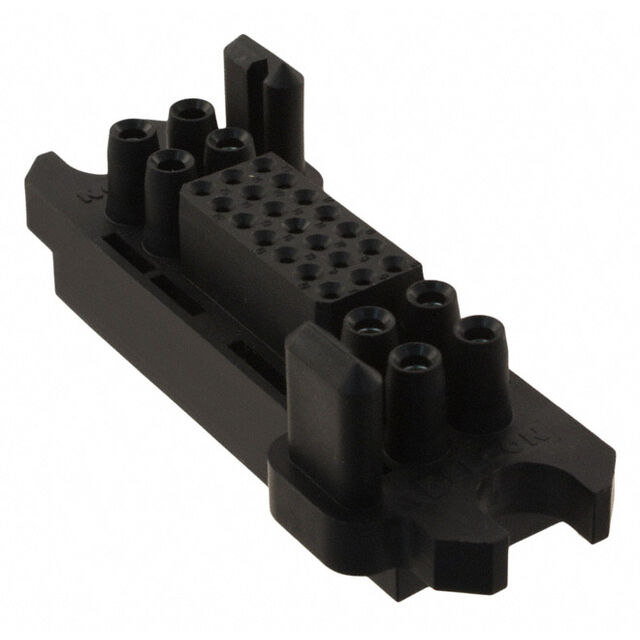

TE Connectivity AMP Connectors 6766385-1	UL94 V-0	250 V	-40 C	105 ░C	29	Black	Solder	Receptacle Female Sockets	All	Drawer Lower	Panel Mount	Guide Pin	29 Power	3
TE Connectivity AMP Connectors 1648133-1					4 36	Black		Housing for Female Sockets		Drawer	Panel Mount	Guide Pin			Receptacle

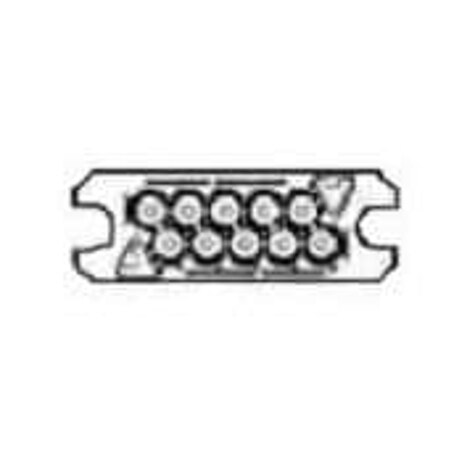

TE Connectivity AMP Connectors 1648586-1
TE Connectivity AMP Connectors 1648117-1						Black		Housing for Female Sockets		Mini-Drawer	Panel Mount	Guide Pin			Receptacle	16	6

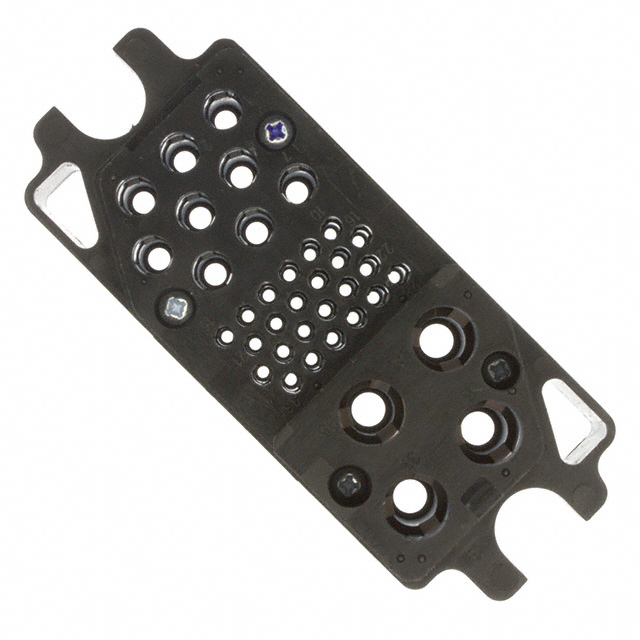

TE Connectivity AMP Connectors 6648167-1						Black		Housing for Female Sockets		Drawer Middle	Panel Mount				Receptacle	20	16	Contacts Not Included	36
TE Connectivity AMP Connectors 1648162-1						Black		Housing for Male Pins		Drawer Middle	Panel Mount	Guide Pin			Plug		13			24
TE Connectivity AMP Connectors 1648555-1					39	Black		Housing for Male Pins		Drawer	Panel Mount	Guide Pin			Plug
TE Connectivity AMP Connectors 1643466-1	UL94 V-0		-40 C	105 ░C	29	Black	Crimp	Receptacle Male Pins	All	Drawer Lower	Panel Mount	Mating Guide		3							0.25 Ám	10 Áin	8	21	Gold
TE Connectivity AMP Connectors 1648569-1						Black		Housing for Male Pins		Drawer	Panel Mount	Guide Pin			Plug			Contacts Not Included								44	8
