HLW14S Series

Catalog

CONN FFC FPC VERT 14POS 1MM PCB

Part	Housing Color	Mating Cycles	Contact Finish	Mounting Type	Material Flammability Rating	Termination	Housing Material	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Voltage Rating	Cable End Type	Connector/Contact Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch	Pitch
Amphenol ICC (FCI) HLW14S-2A7LF	Black	30	Tin	Through Hole	UL94 V-0	Kinked Pin	Polybutylene Terephthalate (PBT) Glass Filled	FFC FPC	5.9 mm	0.232 "	0.3 mm	100 V	Straight or Tapered	Contacts Vertical - 1 Sided	Phosphor Bronze	-55 C	85 °C	14	1 mm	0.039 in

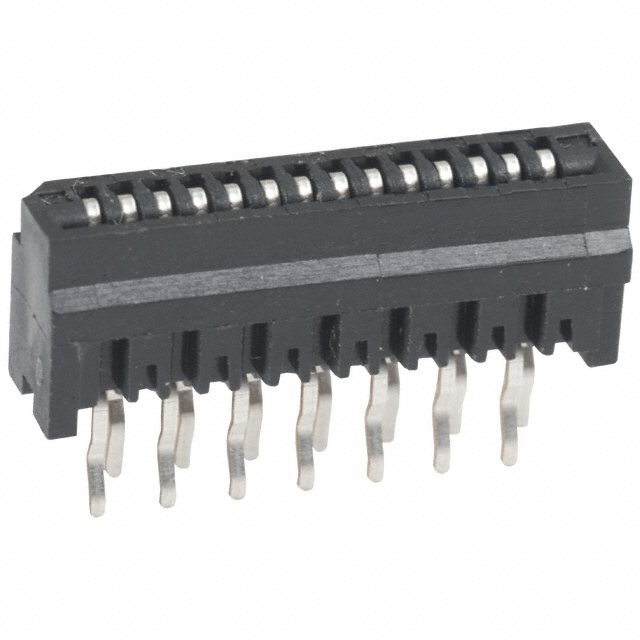

Amphenol ICC (FCI) HLW14S-2C7LF	Black	30	Tin	Through Hole	UL94 V-0	Kinked Pin	Polybutylene Terephthalate (PBT) Glass Filled	FFC FPC	5.9 mm	0.232 "	0.33 mm	100 V		Contacts Vertical - 1 Sided	Phosphor Bronze	-55 C	85 °C	14	1 mm	0.039 in
