0438.750A Series
Manufacturer: LITTELFUSE
Beta
⌘K

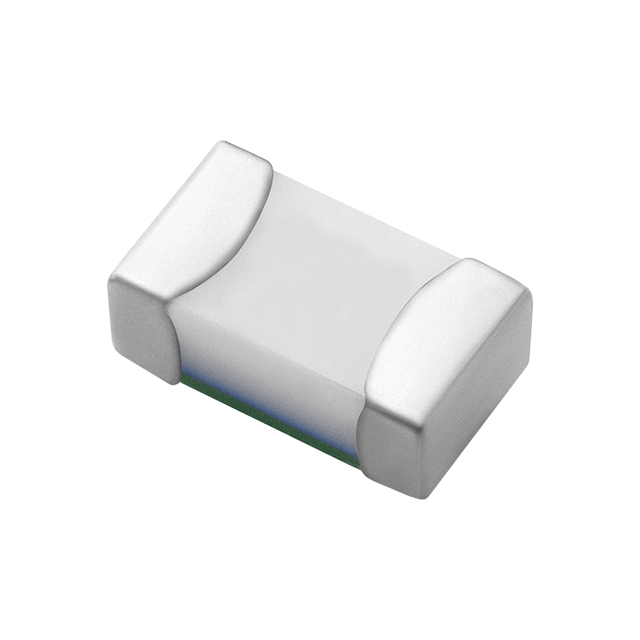

FUSE, SURFACE MOUNT, 750 MA, FAST ACTING, 63 VDC, 0603 [1608 METRIC], 438A SERIES
| Part | DC Cold Resistance | Melting I²t | Fuse Type | Current Rating (Amps) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Package / Case | Response Time | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Voltage Rating - DC | Voltage Rating - AC | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.466 Ohms | 0.0281 | Board Mount (Cartridge Style Excluded) | 750 mA | 0.61 mm | 0.024 in | 1.58 mm | 0.062 in | 0.033 " | 0.85 mm | 1608 Metric | 0603 | Fast Blow | Surface Mount | -55 C | 150 °C | 50 A | 63 VDC | 32 V | CSA UR |
