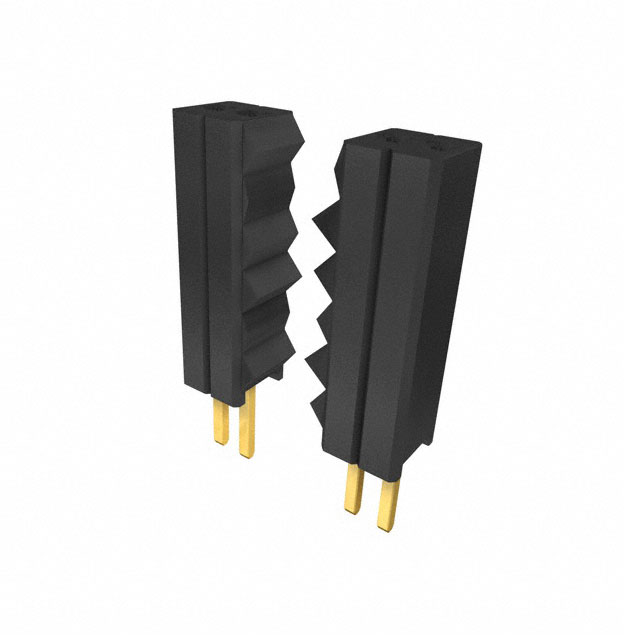

M52-501 Series
Manufacturer: Harwin Inc.
Beta
⌘K

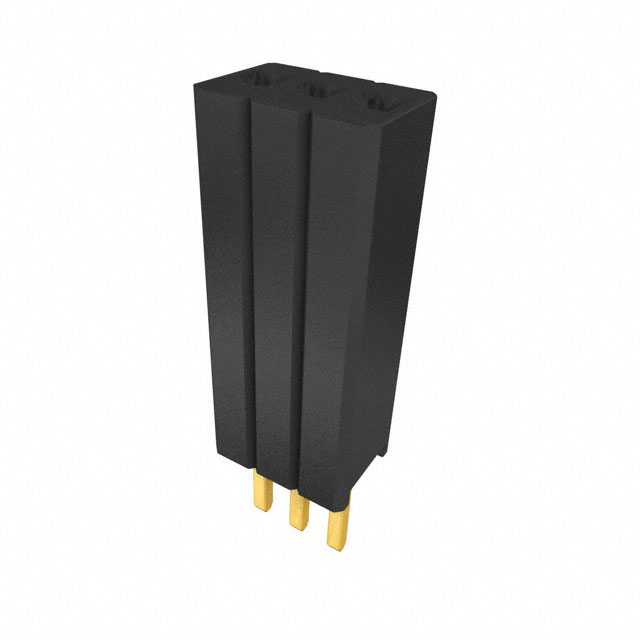

3 POS. FEMALE SIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES
| Part | Insulation Material | Contact Material | Contact Shape | Applications | Contact Type | Fastening Type | Material Flammability Rating | Number of Rows | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [custom] | Contact Length - Post | Insulation Color | Connector Type | Contact Finish - Mating | Number of Positions Loaded | Insulation Height | Insulation Height | Mounting Type | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Nylon 9T Polyamide (PA9T) | Phosphor Bronze | Rectangular | General Purpose Medical Telecommunications | Forked | Push-Pull | UL94 V-0 | 1 | 1.27 mm | 0.05 in | -40 C | 105 ░C | 0.11 in | 2.79 mm | Black | Receptacle | Gold | All | 0.335 " | 8.51 mm | Through Hole | Solder | |
 Harwin Inc. | Nylon 9T Polyamide (PA9T) | Phosphor Bronze | Rectangular | General Purpose Medical Telecommunications | Forked | Push-Pull | UL94 V-0 | 1 | 1.27 mm | 0.05 in | -40 C | 105 ░C | 0.11 in | 2.79 mm | Black | Receptacle | Gold | All | 0.335 " | 8.51 mm | Through Hole | Solder | 23 |
