S0981 Series
Manufacturer: Harwin Inc.
Beta
⌘K

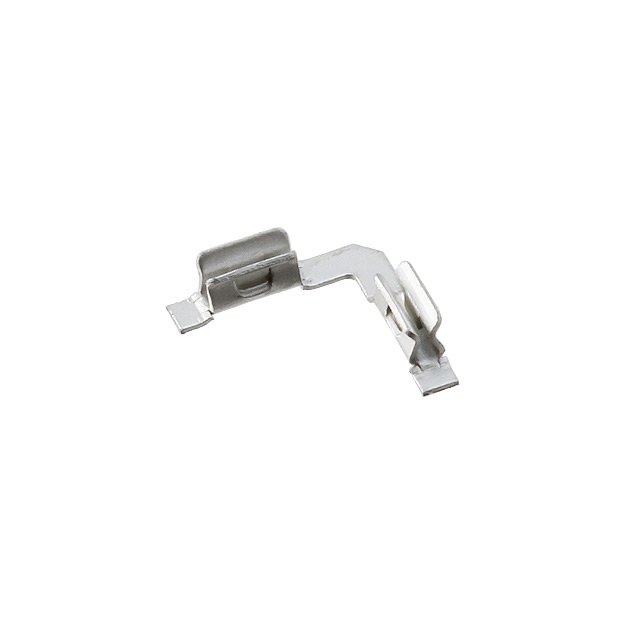

SHIELD CLIP, RFI, RIGHT ANGLE, STAINLESS STEEL, SURFACE MOUNT, 0.19 "X 0.19 "X 0.05 "MM CLIP SIZE
| Part | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Material | Length | Length | Plating - Thickness | Plating - Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Height [z] | Height [z] | Attachment Method | Plating | Width [x] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | -40 °C -4 °F | 85 °C | Stainless Steel | 0.185 in | 4.7 mm | 3 µm | 118.11 µin | 150 °C | -25 °C | 0.055 in | 1.4 mm | Solder | Tin | 0.031 in | 0.8 mm |
