XZMYKVG55 Series

Manufacturer: SunLED

Catalog

LED GRN/YLW CLEAR 4SMD

Part	Configuration	Color	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant	Lens Transparency	Supplier Device Package	Viewing Angle	Lens Style	Lens Color	Current - Test	Package / Case	Lens Size [diameter]	Height (Max) [Max] [z]

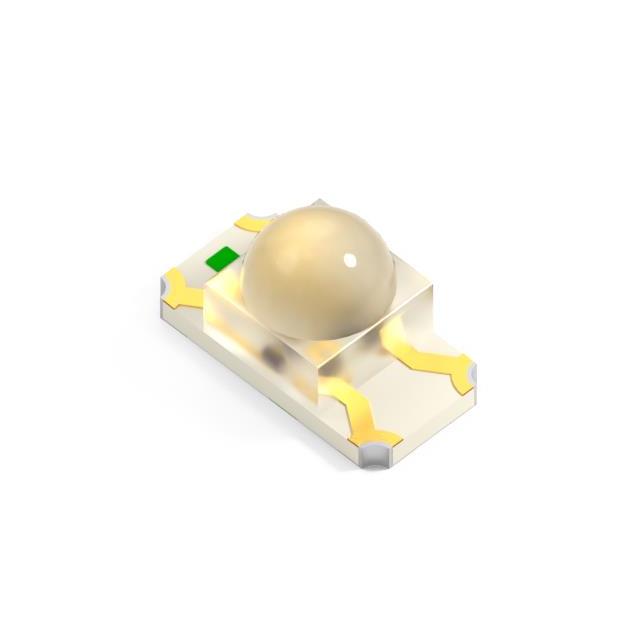

SunLED XZMYKVG55W-8	Independent	Green Yellow	248 mcd 597 mcd	2.8 mm	3.2 mm	Surface Mount	574nm Green 590nm Yellow	2.1 V	2 V	570 nm 590 nm	Clear	4-SMD	30 °	Round with Domed Top	Colorless	20 mA 20 mA	1206 (3216 Metric)	1.6 mm	2 mm

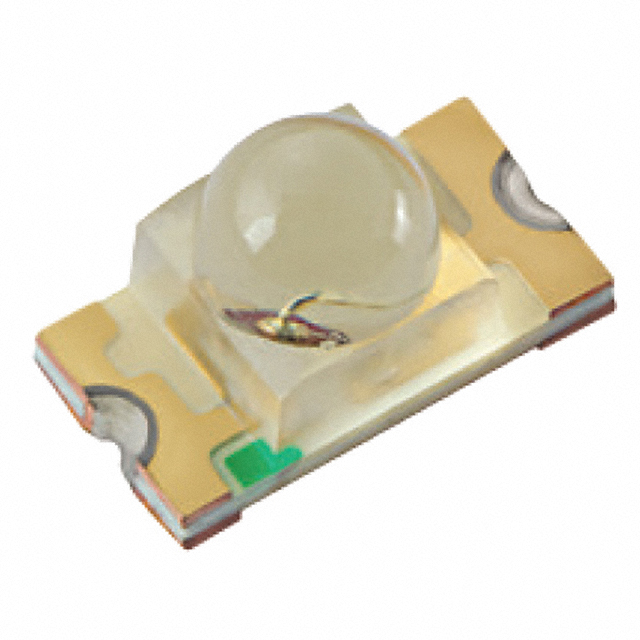

SunLED XZMYKVG55W-7	Bidirectional	Green Yellow	248 mcd 397 mcd	1.6 mm	3.2 mm	Surface Mount	574nm Green 590nm Yellow	2.1 V	2 V	570 nm 590 nm	Clear	2-SMD	40 °	Round with Domed Top	Colorless	20 mA 20 mA	1206 (3216 Metric)	1.6 mm	1.8 mm
