OSTVI06 Series

Catalog

TERM BLK 6POS TOP ENT 5.08MM PCB

Part	Clamp Material - Plating	Screw Material - Plating	Screw Thread	Contact Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Housing Material	Wire Termination	Number of Levels	Voltage	Pitch	Pitch	Current	Mating Orientation	Color	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Features	Positions Per Level
On Shore Technology Inc. OSTVI062150	Brass	Steel - Zinc Plated	M3	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Thermoplastic	Screw - Rising Cage Clamp	1	300 VDC	5.08 mm	0.2 in	16 A	Vertical with Board	Green	Through Hole	12 AWG	28 AWG	Interlocking (Side)	6
On Shore Technology Inc. OSTVI064150	Brass	Steel - Zinc Plated	M3	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Thermoplastic	Screw - Rising Cage Clamp	1	300 VDC	7.5 mm	0.295 in	16 A	Vertical with Board	Green	Through Hole	12 AWG	28 AWG	Interlocking (Side)	6

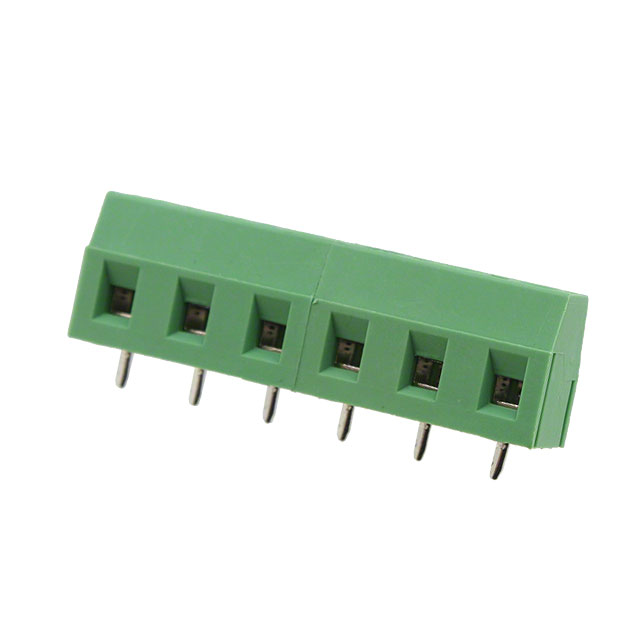

On Shore Technology Inc. OSTVI064152	Brass	Steel - Zinc Plated	M3	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Thermoplastic	Screw - Rising Cage Clamp	1	300 VDC	7.5 mm	0.295 in	16 A	Horizontal with Board	Green	Through Hole	12 AWG	28 AWG	Interlocking (Side)	6
On Shore Technology Inc. OSTVI060151	Brass	Steel - Zinc Plated	M3	Brass - Tin Plated	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Thermoplastic	Screw - Rising Cage Clamp	1	300 VDC	5 mm	0.197 in	16 A	Horizontal with Board	Green	Through Hole	12 AWG	28 AWG	Interlocking (Side)	6
On Shore Technology Inc. OSTVI064151	Brass	Steel - Zinc Plated	M3	Brass - Tin Plated	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Thermoplastic	Screw - Rising Cage Clamp	1	300 VDC	7.5 mm	0.295 in	16 A	Horizontal with Board	Green	Through Hole	12 AWG	28 AWG	Interlocking (Side)	6
On Shore Technology Inc. OSTVI060150	Brass	Steel - Zinc Plated	M3	Brass	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Thermoplastic	Screw - Rising Cage Clamp	1	300 VDC	5 mm	0.197 in	16 A	Vertical with Board	Green	Through Hole	12 AWG	28 AWG	Interlocking (Side)	6
On Shore Technology Inc. OSTVI062151	Brass	Steel - Zinc Plated	M3	Brass - Tin Plated	-30 ░C	105 ░C	3.5 Lb-In	0.4 Nm	Thermoplastic	Screw - Rising Cage Clamp	1	300 VDC	5.08 mm	0.2 in	16 A	Horizontal with Board	Green	Through Hole	12 AWG	28 AWG	Interlocking (Side)	6
