EDSP02 Series

Catalog

SWITCH PIANO DIP SPST 0.025A 24V

Part	Electrical Life	Mechanical Life	Body Material	Length	Length	Circuit	Contact Material	Pitch	Pitch	Termination Style	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Height Above Board	Height Above Board	Actuator Type	Mounting Type	Number of Positions	Actuator Level	Voltage Rating

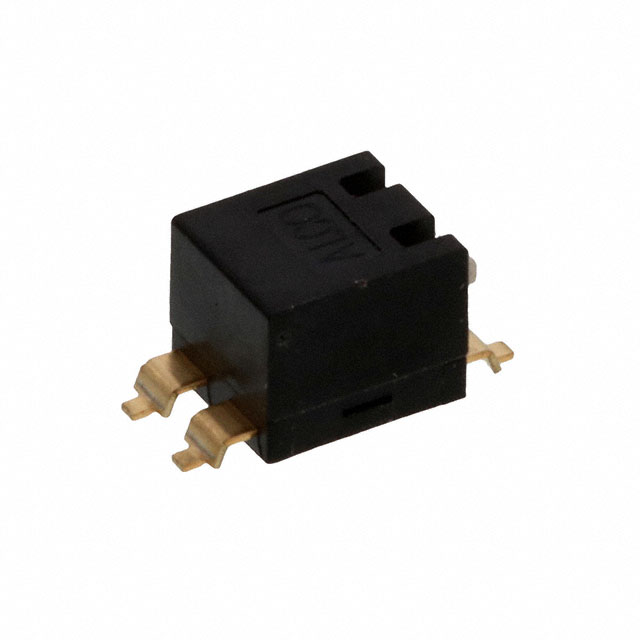

TE Connectivity AMP Connectors EDSP02SGLFNTU04	2000 Steps	2000 Cycles	Polyamide (PA) Nylon	0.196 in	4.98 mm	SPST	Copper Alloy	2.54 mm	0.1 "	Gull Wing	Gold	85 °C	-20 ░C	25 mA	5 mm	0.197 in	Piano	Right Angle Surface Mount	2	Raised	24 VDC
TE Connectivity AMP Connectors EDSP02SGRFSTR04	2000 Steps	2000 Cycles	Polyamide (PA) Nylon	0.196 in	4.98 mm	SPST	Copper Alloy	2.54 mm	0.1 "	Gull Wing	Gold	85 °C	-20 ░C	25 mA	5 mm	0.197 in	Piano	Right Angle Surface Mount	2	Flush Recessed	24 VDC

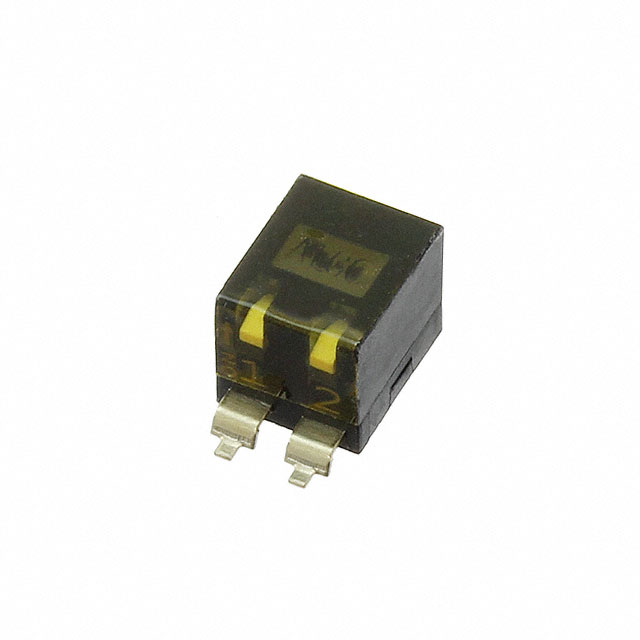

TE Connectivity AMP Connectors EDSP02SGRFSTU04	2000 Steps	2000 Cycles	Polyamide (PA) Nylon	0.196 in	4.98 mm	SPST	Copper Alloy	2.54 mm	0.1 "	Gull Wing	Gold	85 °C	-20 ░C	25 mA	5 mm	0.197 in	Piano	Right Angle Surface Mount	2	Flush Recessed	24 VDC
TE Connectivity AMP Connectors EDSP02SGRNNTR04	2000 Steps	2000 Cycles	Polyamide (PA) Nylon	0.196 in	4.98 mm	SPST	Copper Alloy	2.54 mm	0.1 "	Gull Wing	Gold	85 °C	-20 ░C	25 mA	5 mm	0.197 in	Piano	Right Angle Surface Mount	2	Flush Recessed	24 VDC
TE Connectivity AMP Connectors EDSP02SGRFNTR04	2000 Steps	2000 Cycles	Polyamide (PA) Nylon	0.196 in	4.98 mm	SPST	Copper Alloy	2.54 mm	0.1 "	Gull Wing	Gold	85 °C	-20 ░C	25 mA	5 mm	0.197 in	Piano	Right Angle Surface Mount	2	Flush Recessed	24 VDC
