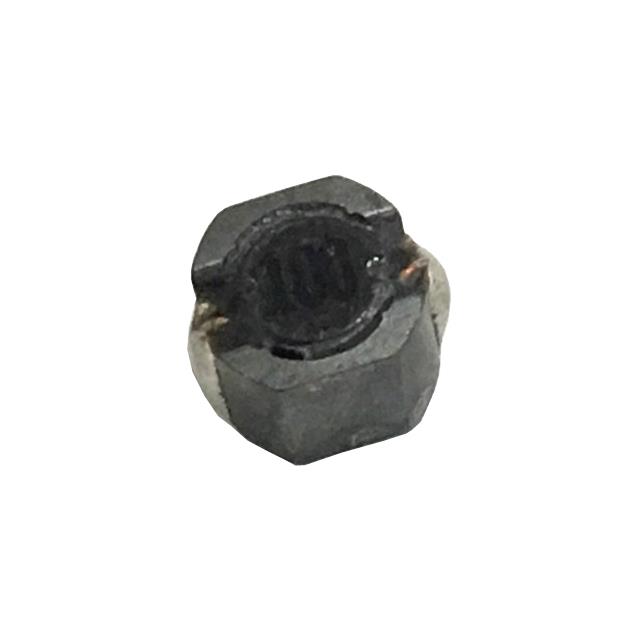

APAL Series
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Beta
⌘K
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
| Part | DC Resistance (DCR) | Inductance Frequency - Test | Shielding | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Current - Saturation (Isat) | Material - Core | Inductance | Type | Height - Seated (Max) [Max] | Height - Seated (Max) | Ratings | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 100 mOhm | 100 kHz | Shielded | 0.283 " | 0.236 " | 7.2 mm | 6 mm | 30 % | 1.1 A | Ferrite | 33 µH | Drum Core Wirewound | 0.189 " | 4.8 mm | AEC-Q200 | 1.6 A | 125 °C | -40 C | Surface Mount | Nonstandard | ||
Pulse Electronics | 13 mOhm | 100 kHz | Shielded | 0.283 " | 0.236 " | 7.2 mm | 6 mm | 30 % | 5.5 A | Ferrite | 1.5 µH | Drum Core Wirewound | 0.189 " | 4.8 mm | AEC-Q200 | 4.5 A | 150 °C | -50 °C | Surface Mount | Nonstandard | ||
Pulse Electronics | 100 mOhm | 100 kHz | Shielded | 0.283 " | 0.236 " | 7.2 mm | 6 mm | 20 % | 1.1 A | Ferrite | 33 µH | Drum Core Wirewound | 0.189 " | 4.8 mm | AEC-Q200 | 1.6 A | 150 °C | -50 °C | Surface Mount | Nonstandard | ||
Pulse Electronics | 55 mOhm | 100 kHz | Shielded | 0.374 in | 0.295 in | 9.5 mm | 7.5 mm | 30 % | 2.3 A | Ferrite | 15 µH | Drum Core Wirewound | AEC-Q200 | 2.8 A | 150 °C | -50 °C | Surface Mount | Nonstandard | 4.5 mm | 0.177 in | ||
Pulse Electronics | 97 mOhm | 100 kHz | Shielded | 0.374 in | 0.295 in | 9.5 mm | 7.5 mm | 30 % | 1.6 A | Ferrite | 33 µH | Drum Core Wirewound | AEC-Q200 | 1.9 A | 150 °C | -50 °C | Surface Mount | Nonstandard | 4.5 mm | 0.177 in | ||
 Pulse Electronics | 130 mOhm | 100 kHz | Shielded | 0.283 " | 0.236 " | 7.2 mm | 6 mm | 30 % | 970 mA | Ferrite | 47 µH | Drum Core Wirewound | 0.189 " | 4.8 mm | AEC-Q200 | 1.4 A | 150 °C | -50 °C | Surface Mount | Nonstandard | ||
Pulse Electronics | 60 mOhm | 100 kHz | Shielded | 0.283 " | 0.236 " | 7.2 mm | 6 mm | 30 % | 1.7 A | Ferrite | 15 µH | Drum Core Wirewound | 0.189 " | 4.8 mm | AEC-Q200 | 2 A | 150 °C | -50 °C | Surface Mount | Nonstandard |
