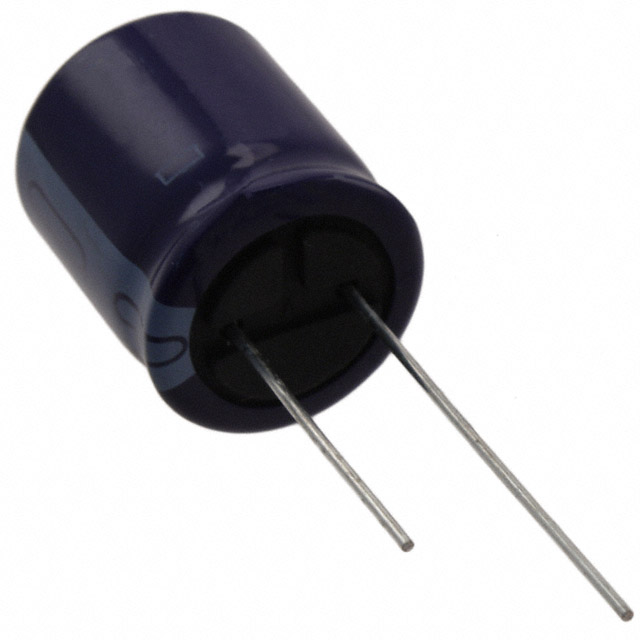

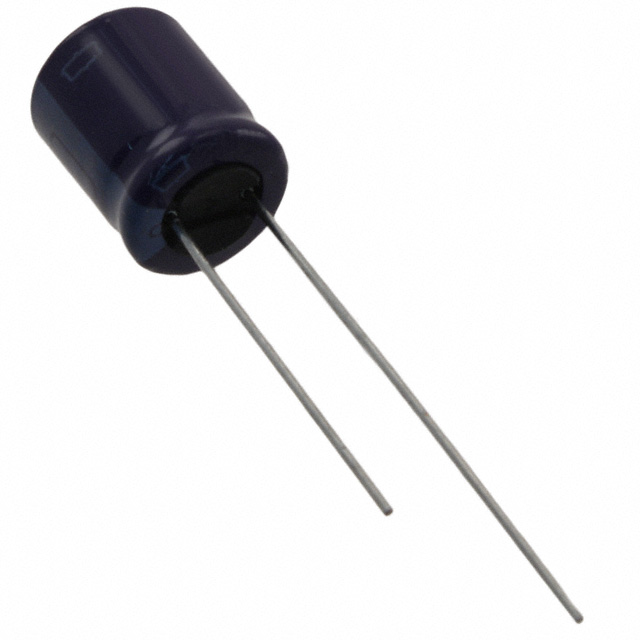

LXZ Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 470UF 63 VOLT

Part	Ratings	Tolerance	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Package / Case	Impedance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]
Chemi-Con ELXZ630ELL471MK25S	AEC-Q200	20 %	Polar	-55 C	105 ░C	26.5 mm	1.043 in	63 V	0.492 in	12.5 mm	Automotive	Through Hole	0.197 "	5 mm	470 µF	Can Radial
Chemi-Con ELXZ630ETC151MH20D	AEC-Q200	20 %	Polar	-55 C	105 ░C			63 V	0.315 in	8 mm	Automotive	Through Hole	0.138 in	3.5 mm	150 µF	Can Radial	210 mOhms	276 mA	690 mA	0.846 "	21.5 mm	3000 Hrs
Chemi-Con ELXZ630ELL121MJ16S	AEC-Q200	20 %	Polar	-55 C	105 ░C	0.689 in		63 V	0.394 in	10 mm	Automotive	Through Hole	0.197 "	5 mm	120 µF	Can Radial	190 mOhms	240 mA	600 mA			5000 Hrs	17.5 mm
Chemi-Con ELXZ250EC3152MK25S	AEC-Q200	20 %	Polar	-55 C	105 ░C	26.5 mm	1.043 in	25 VDC	0.492 in	12.5 mm	Automotive	Through Hole	0.197 "	5 mm	1.5 mF	Can Radial	30 mOhms	1.17 A	1.95 A			7000 Hrs
Chemi-Con ELXZ350ETD331MJ16S	AEC-Q200	20 %	Polar	-55 C	105 ░C	0.689 in		35 V	0.394 in	10 mm	Automotive	Through Hole	0.197 "	5 mm	330 µF	Can Radial	68 mOhms	525 mA	1.05 A			5000 Hrs	17.5 mm
Chemi-Con ELXZ160ETD122MJ25S	AEC-Q200	20 %	Polar	-55 C	105 ░C	26.5 mm	1.043 in	16 V	0.394 in	10 mm	Automotive	Through Hole	0.197 "	5 mm	1.2 mF	Can Radial	45 mOhms	864 mA	1.44 A			5000 Hrs
Chemi-Con ELXZ350ELL221MJC5S	AEC-Q200	20 %	Polar	-55 C	105 ░C			35 V	0.394 in	10 mm	Automotive	Through Hole	0.197 "	5 mm	220 µF	Can Radial		380 mA		0.551 in	14 mm	5000 Hrs
Chemi-Con ELXZ250ELL332MM20S	AEC-Q200	20 %	Polar	-55 C	105 ░C			25 VDC	0.709 in	18 mm	Automotive	Through Hole	0.295 in	7.5 mm	3.3 mF	Can Radial	28 mOhms	1.8675 A	2.49 A	0.846 "	21.5 mm	8000 Hrs
Chemi-Con ELXZ6R3ELL222MJ25S	AEC-Q200	20 %	Polar	-55 C	105 ░C	26.5 mm	1.043 in	6.3 VDC	0.394 in	10 mm	Automotive	Through Hole	0.197 "	5 mm	2200 µF	Can Radial	45 mOhms	1.08 A	1.44 A			5000 Hrs
Chemi-Con ELXZ100ELL392MK30S	AEC-Q200	20 %	Polar	-55 C	105 ░C			10 V	0.492 in	12.5 mm	Automotive	Through Hole	0.197 "	5 mm	3900 µF	Can Radial	25 mOhms	1.7325 A	2.31 A	1.24 in	31.5 mm	7000 Hrs
