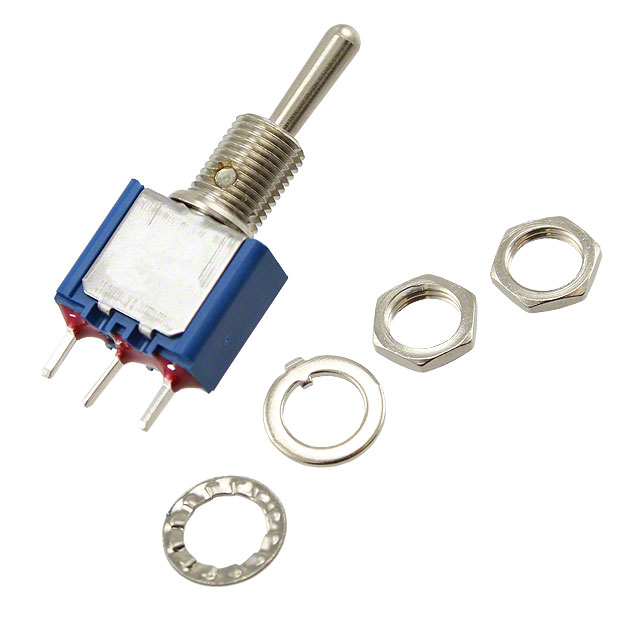

5238A Series
Manufacturer: APEM Inc.
Beta
⌘K
TOGGLE SWITCH 5000 MINIATURE ROHS COMPLIANT: YES
| Part | Actuator Material | Electrical Life | Voltage Rating - DC | Bushing Thread | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Circuit | Switch Function | Features | Panel Cutout Dimensions [diameter] | Illumination | Actuator Type | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | 30 V | 1/4-40 | 85 °C | -40 C | Panel Mount | PC Pin | SPDT | On-Off-Mom | Epoxy Sealed Terminals | 6.5 mm | Non-Illuminated | Standard Round | 125 V | 4 A 6 A |
