IRS21094 Series

Manufacturer: INFINEON

Catalog

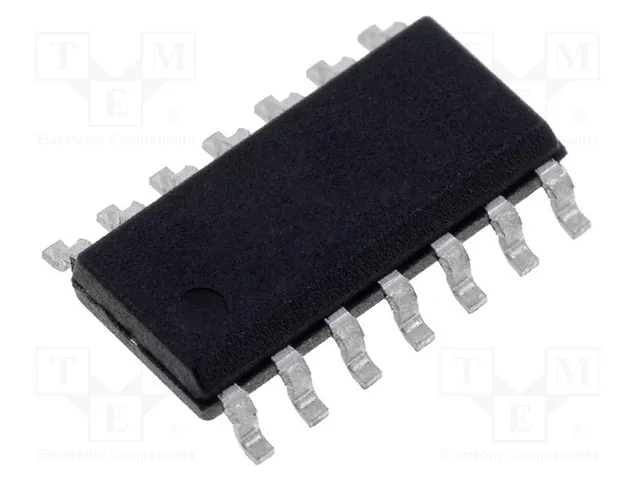

IC GATE DRVR HALF-BRIDGE 14DIP

Part	Gate Type	Logic Voltage - VIL, VIH	Package / Case	Package / Case	Package / Case	Mounting Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Driven Configuration	Number of Drivers	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Channel Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	High Side Voltage - Max (Bootstrap) [Max]	Package / Case
INFINEON IRS21094PBF	IGBT MOSFET (N-Channel) N-Channel MOSFET	0.8 V 2.5 V	14-DIP	0.3 in	7.62 mm	Through Hole	600 mA	290 mA	14-DIP	Half-Bridge	2	-40 °C	150 °C	Non-Inverting	Synchronous	20 V	10 VDC	35 ns	100 ns	600 V
INFINEON IRS21094PBF	IGBT MOSFET (N-Channel) N-Channel MOSFET	0.8 V 2.5 V	14-DIP	0.3 in	7.62 mm	Through Hole	600 mA	290 mA	14-DIP	Half-Bridge	2	-40 °C	150 °C	Non-Inverting	Synchronous	20 V	10 VDC	35 ns	100 ns	600 V
INFINEON IRS21094STRPBF	IGBT MOSFET (N-Channel) N-Channel MOSFET	0.8 V 2.5 V	14-SOIC			Surface Mount	600 mA	290 mA		Half-Bridge	2	-40 °C	150 °C	Non-Inverting	Synchronous	20 V	10 VDC	35 ns	100 ns	600 V	0.154 in 3.9 mm
INFINEON IRS21094SPBF	IGBT MOSFET (N-Channel) N-Channel MOSFET	0.8 V 2.5 V	14-SOIC			Surface Mount	600 mA	290 mA		Half-Bridge	2	-40 °C	150 °C	Non-Inverting	Synchronous	20 V	10 VDC	35 ns	100 ns	600 V	0.154 in 3.9 mm
