KRPA-11 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE DPDT 10A 125V

Part	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching	Contact Material	Must Operate Voltage	Termination Style	Switching Voltage [Max]	Coil Insulation	Mounting Type	Features	Coil Type	Approval Agency	Relay Type	Coil Voltage	Contact Form	Coil Current	Contact Rating (Current)
TE Connectivity AMP Connectors KRPA-11DN-125	13.02 kOhms	-45 °C	70 °C	2400 VA	Silver Cadmium Oxide (AgCdO)	93.75 VDC	Plug In	240 VAC	Class B	Socketable	Lighted Indicator	Non Latching	CSA UR	General Purpose	125 VDC	DPDT (2 Form C)	9.6 mA	10 A
TE Connectivity AMP Connectors KRPA-11AG-12	24 Ohms	-45 °C	55 °C	2400 VA	Silver Cadmium Oxide (AgCdO)	10.2 VAC	Plug In	240 VAC	Class B	Socketable		Non Latching	CSA UR	General Purpose	12 VAC	DPDT (2 Form C)	168 mA	10 A
TE Connectivity AMP Connectors KRPA-11DGP-24	472 Ohms	-45 °C	70 °C	2400 VA	Silver Cadmium Oxide (AgCdO)	18 VDC	Plug In	240 VAC	Class B	Socketable		Non Latching	CSA UR	General Purpose	24 VDC	DPDT (2 Form C)	51 mA	10 A
TE Connectivity AMP Connectors KRPA-11AGP-120	2.25 kOhms	-45 °C	55 °C	2400 VA	Silver Cadmium Oxide (AgCdO)	102 VAC	Plug In	240 VAC	Class B	Socketable		Non Latching	CSA UR	General Purpose	120 VAC	DPDT (2 Form C)	17.5 mA	10 A
TE Connectivity AMP Connectors KRPA-11AG-6	6 Ohms	-45 °C	55 °C	2400 VA	Silver Cadmium Oxide (AgCdO)	5.1 VAC	Plug In	240 VAC	Class B	Socketable		Non Latching	CSA UR	General Purpose	6 VAC	DPDT (2 Form C)	335 mA	10 A
TE Connectivity AMP Connectors KRPA-11DY-48		-45 °C	70 °C	1200 VA	Silver (Ag)	36 VDC	Plug In	240 VAC	Class B	Socketable		Non Latching	CSA UR	General Purpose	48 VDC	DPDT (2 Form C)	26.7 mA	5 A

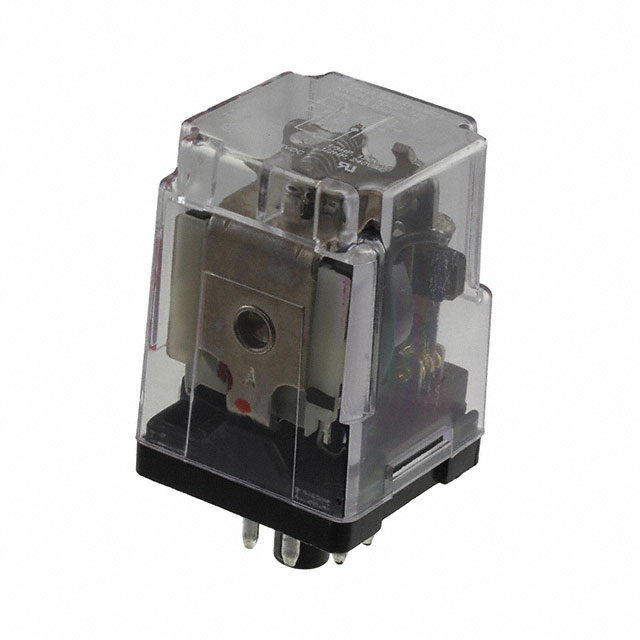

TE Connectivity AMP Connectors KRPA-11DGF-125		-45 °C	70 °C	2400 VA		93.75 VDC	Plug In	240 VAC	Class B	Socketable		Non Latching	CSA UR	General Purpose	125 VDC	DPDT (2 Form C)		10 A
