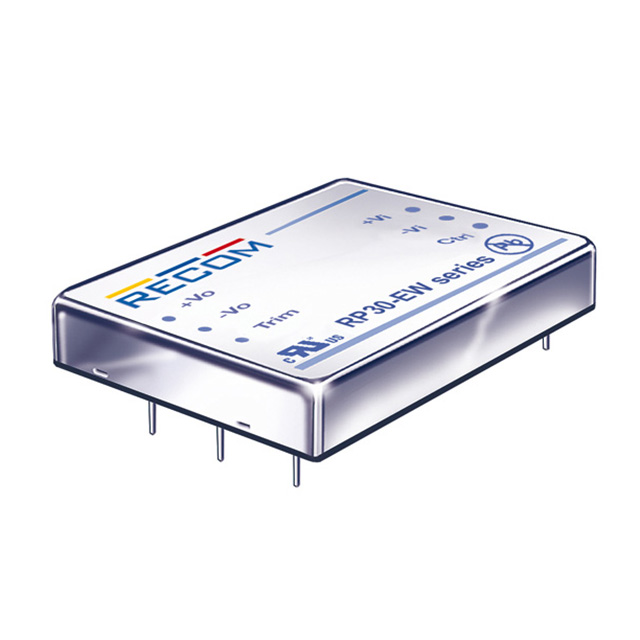

RP30-EW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 4:1 18-75VIN 15VOUT

Part	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Control Features	Type	Efficiency	Voltage - Input (Min) [Min]	Voltage - Isolation	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max)	Voltage - Output 2
Recom Power RP30-4815SEW-HC	8-DIP Module 7 Leads	1	75 V	2 A	30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	15 V	Active High Enable	Isolated Module	88 %	18 V	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm

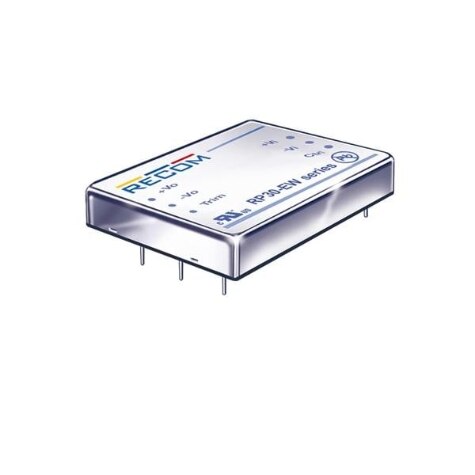

Recom Power RP30-2412SEW	8-DIP Module 7 Leads	1		2.5 A	30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	12 V	Active High Enable	Isolated Module	87 %	10 VDC	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm
Recom Power RP30-2405SEW/N-HC	8-DIP Module 7 Leads	1		6 A	30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	5 V	Active Low Enable	Isolated Module	87 %	10 VDC	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm
Recom Power RP30-2415DEW/N-HC	8-DIP Module 7 Leads	2			30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	15 V	Active Low Enable	Isolated Module	86 %	10 VDC	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1 A	-15 V
Recom Power RP30-2415DEW-HC	8-DIP Module 7 Leads	2			30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	15 V	Active High Enable	Isolated Module	86 %	10 VDC	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1 A	-15 V
Recom Power RP30-243.3SEW-HC	8-DIP Module 7 Leads	1		6 A	30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	3.3 V	Active High Enable	Isolated Module	87 %	10 VDC	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm
Recom Power RP30-4815DEW/N-HC	8-DIP Module 7 Leads	2	75 V		30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	15 V	Active Low Enable	Isolated Module	86 %	18 V	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1 A	-15 V
Recom Power RP30-4815SEW/N	8-DIP Module 7 Leads	1	75 V	2 A	30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	15 V	Active Low Enable	Isolated Module	88 %	18 V	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm
Recom Power RP30-2405SEW-HC	8-DIP Module 7 Leads	1		6 A	30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	5 V	Active High Enable	Isolated Module	87 %	10 VDC	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm
Recom Power RP30-4815DEW	8-DIP Module 7 Leads	2	75 V		30 Watts	Through Hole	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 C	15 V	Active High Enable	Isolated Module	86 %	18 V	1.6 kV	ITE (Commercial)	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1 A	-15 V
