2420/42 Series

Catalog

TEST LEAD 42AWG 150V VIOLET

Part	Cable Type	Wire Gauge	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Conductor Material	Jacket (Insulation) Material	Length	Length
Daburn Electronics 2420/42 VI-100	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "	100 ft	30.5 m	0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Violet	Copper Bare	Fluorinated Ethylene-Propylene (FEP)
Daburn Electronics 2420/42 BU-100	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "	100 ft	30.5 m	0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Blue	Copper Bare	Fluorinated Ethylene-Propylene (FEP)

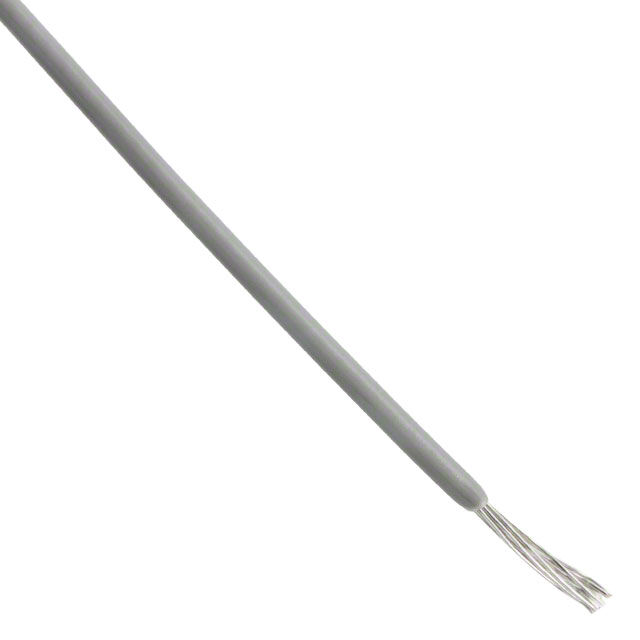

Daburn Electronics 2420/42 GY-100	Hook-Up	44 AWG	150 V	0.089 mm	0.0035 "	100 ft	30.5 m	0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Gray	Copper Bare	Fluorinated Ethylene-Propylene (FEP)
Daburn Electronics 2420/42 BU-1000	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "			0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Blue	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	304.8 m	1000 ft
Daburn Electronics 2420/42 OR-100	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "	100 ft	30.5 m	0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Orange	Copper Bare	Fluorinated Ethylene-Propylene (FEP)
Daburn Electronics 2420/42 GY-1000	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "			0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Gray	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	304.8 m	1000 ft
Daburn Electronics 2420/42 BK-100	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "	100 ft	30.5 m	0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Black	Copper Bare	Fluorinated Ethylene-Propylene (FEP)
Daburn Electronics 2420/42 GR-1000	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "			0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Green	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	304.8 m	1000 ft
Daburn Electronics 2420/42 RD-100	Hook-Up Test Lead	44 AWG	150 V	0.089 mm	0.0035 "	100 ft	30.5 m	0.25 mm	0.01 in	150 °C	-150 °C	50 AWG	7	Red	Copper Bare	Fluorinated Ethylene-Propylene (FEP)
