IAUC60 Series

Manufacturer: INFINEON

Catalog

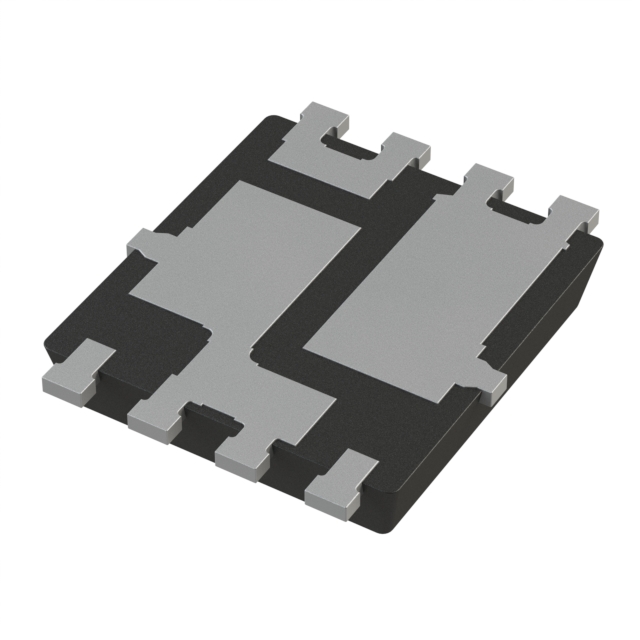

IAUC60N04S6N044 IS AN AUTOMOTIVE MOSFET OFFERING 40V, N-CH, 4.4 MΩ MAX, SSO8 (5X6), OPTIMOS™-6, IDEAL FOR AUTOMOTIVE APPLICATIONS.

Part	Mounting Type	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Package / Case	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max)	Qualification	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Grade	FET Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs (Max)	Vgs(th) (Max) @ Id	Configuration	FET Feature	Gate Charge (Qg) (Max) @ Vgs	Power - Max [Max]	Input Capacitance (Ciss) (Max) @ Vds
INFINEON IAUC60N04S6N044ATMA1	Surface Mount	PG-TDSON-8	7 V 10 V	4.52 mOhm	8-PowerTDFN	60 A	18 nC	42 W	AEC-Q101	MOSFET (Metal Oxide)	175 °C	-55 °C	Automotive	N-Channel	40 V	1042 pF	20 V	3 V
INFINEON IAUC60N04S6L039ATMA1	Surface Mount	PG-TDSON-8	4.5 V 10 V	4.02 mOhm	8-PowerTDFN	60 A	20 nC	42 W	AEC-Q101	MOSFET (Metal Oxide)	175 °C	-55 °C	Automotive	N-Channel	40 V	1179 pF	16 V	2 V
INFINEON IAUC60N04S6L045HATMA1	Surface Mount	PG-TDSON-8-57		4.5 mOhm	8-PowerVDFN	60 A			AEC-Q101	MOSFET (Metal Oxide)	175 °C	-55 °C	Automotive		40 V	1136 pF		2 V	2 N-Channel	Logic Level Gate	19 nC	52 W
INFINEON IAUC60N04S6L030HATMA1	Surface Mount	PG-TDSON-8-56		3 mOhm	8-PowerVDFN	60 A			AEC-Q101	MOSFET (Metal Oxide)	175 °C	-55 °C	Automotive		40 V			2 V	2 N-Channel	Logic Level Gate	35 nC	75 W	2128 pF
INFINEON IAUC60N04S6N050HATMA1	Surface Mount	PG-TDSON-8-57		5 mOhm	8-PowerVDFN	60 A			AEC-Q101	MOSFET (Metal Oxide)	175 °C	-55 °C	Automotive		40 V	1027 pF		3 V	2 N-Channel		17 nC	52 W
INFINEON IAUC60N04S6N031HATMA1	Surface Mount	PG-TDSON-8-56		3.1 mOhm	8-PowerVDFN	60 A			AEC-Q101	MOSFET (Metal Oxide)	175 °C	-55 °C	Automotive		40 V	1922 pF		3 V	2 N-Channel		30 nC	75 W
