UTS61 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

Catalog

CONN PLUG FMALE 12P SOLDER CUP

...

Part	Color	Features	Shell Size - Insert Width	Shell Size - Insert Length	Shell Material	Current Rating	Orientation	Insert Material	Contact Material	Applications	Voltage Rating	Termination	Contact Finish Thickness - Mating	Connector Type	Number of Positions	Primary Material	Material Flammability Rating	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Fastening Type	Mounting Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Position Types	Contact Shape	Type	Housing Color	Note	Contact Type	Contact Size
Amphenol Aerospace Operations UTS614E12SW	Black	Coupling Nut UV Resistant	12 mm	14 mm	Nylon Polyamide (PA)	4.5 A	W	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Female Sockets Plug	12	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)
Amphenol Aerospace Operations UTS610E98SX	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	6 A	X	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Female Sockets Plug	6	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	98	10

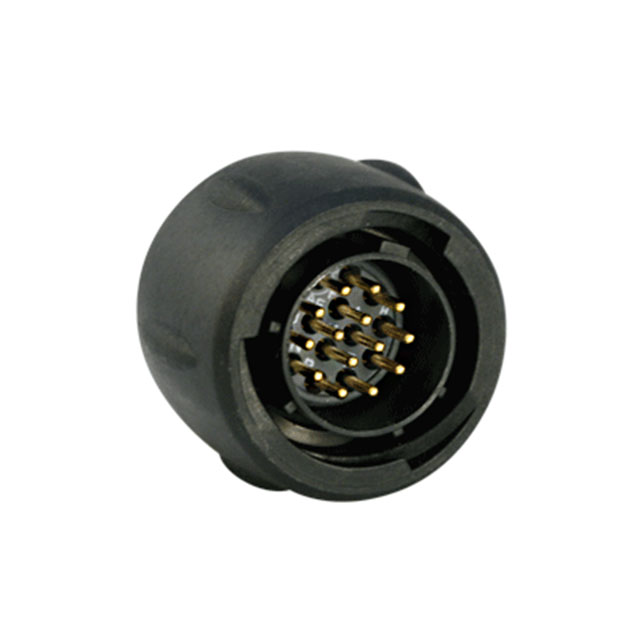

Amphenol Aerospace Operations UTS612E14P	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	4.5 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Male Pins Plug	14	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	14	12

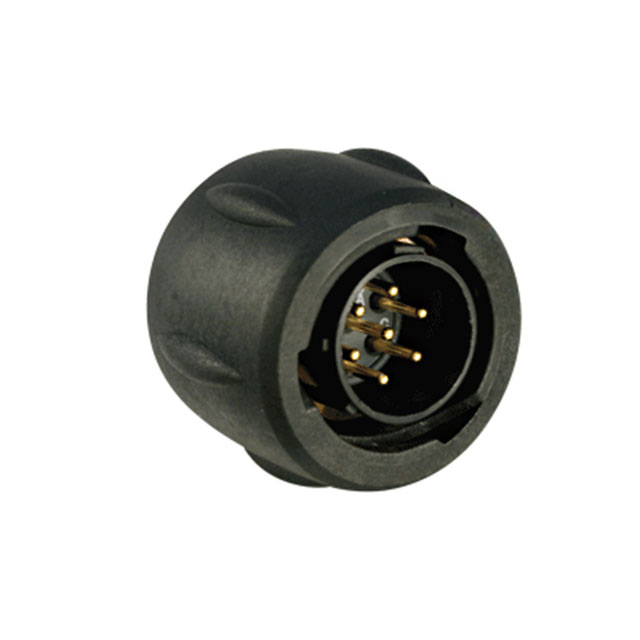

Amphenol Aerospace Operations UTS610E7P	Black	Coupling Nut UV Resistant	7 mm	10 mm	Nylon Polyamide (PA)	6 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Male Pins Plug	7	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)

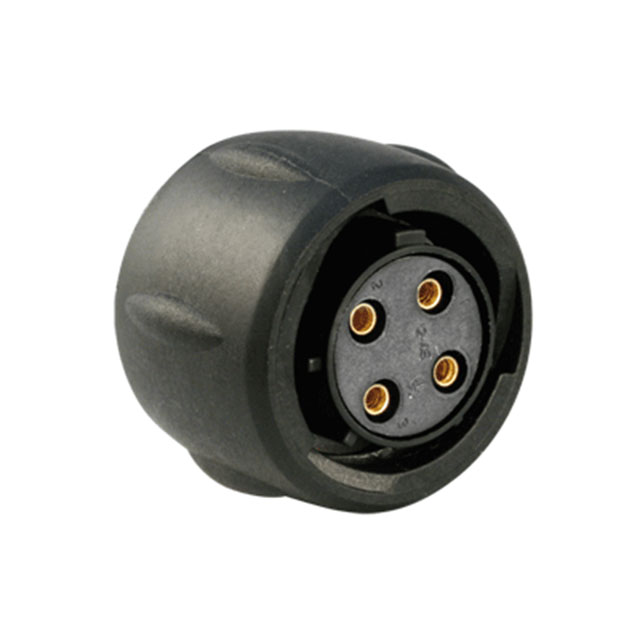

Amphenol Aerospace Operations UTS612E4S	Black	Coupling Nut UV Resistant	4 mm	12 mm	Nylon Polyamide (PA)	10 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	500 V	Solder Cup	16 µin	Female Sockets Plug	4	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)			PE

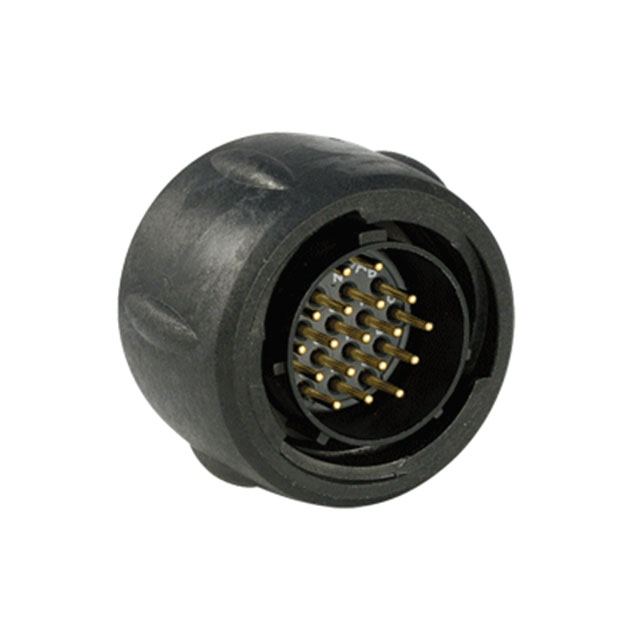

Amphenol Aerospace Operations UTS614E18P	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	4 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Male Pins Plug	18	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	18	14 S

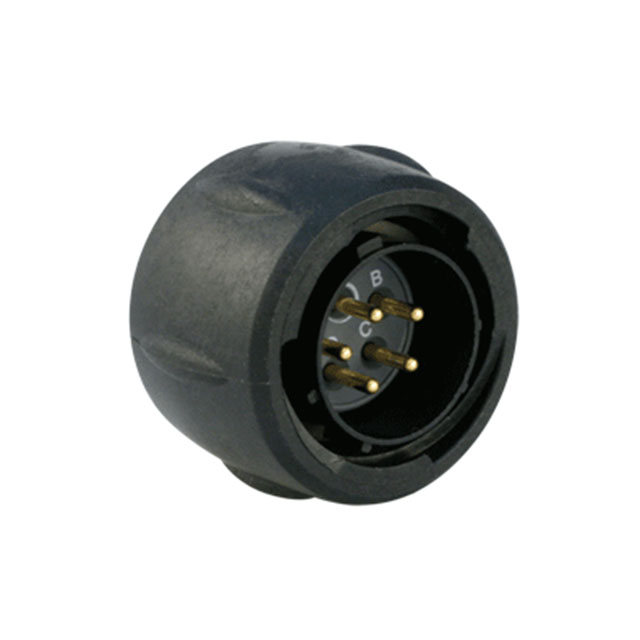

Amphenol Aerospace Operations UTS614E5P	Black	Coupling Nut UV Resistant	5 mm	14 mm	Nylon Polyamide (PA)	12 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	600 V	Solder Cup	16 µin	Male Pins Plug	5	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)

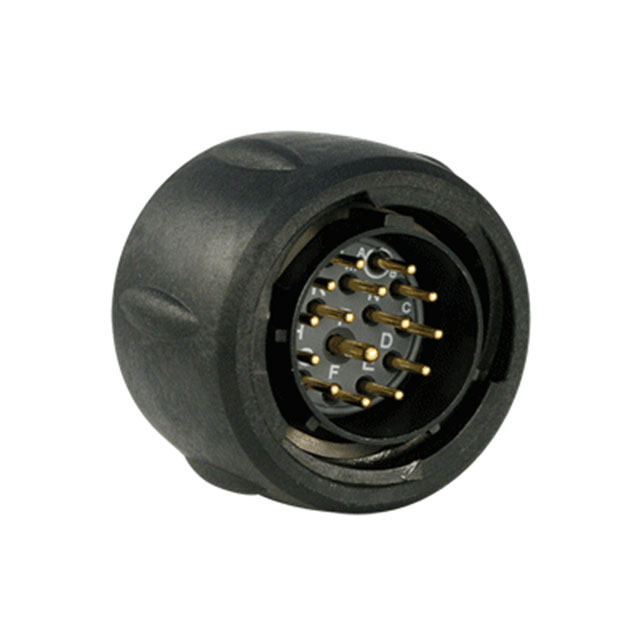

Amphenol Aerospace Operations UTS614E15P	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	12 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	600 V	Solder Cup	16 µin	Male Pins Plug	15	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	15	14 S

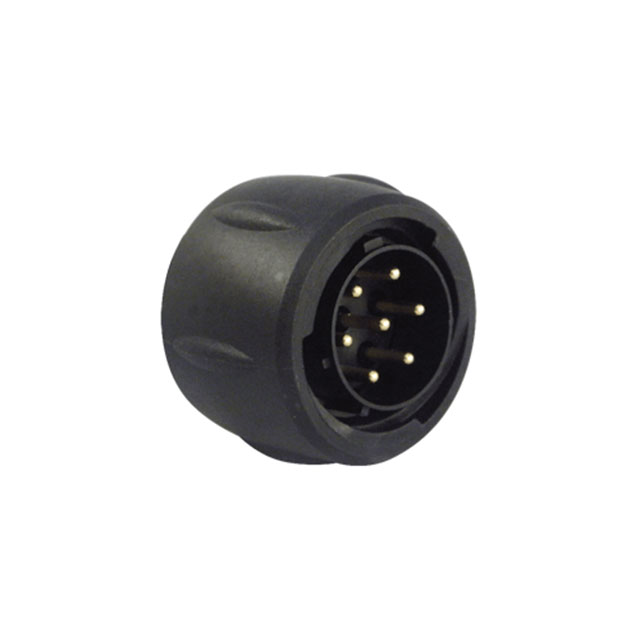

Amphenol Aerospace Operations UTS6147P		Coupling Nut	7 mm	14 mm	Thermoplastic		N (Normal)							Plug Housing	7		UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP67 IP69K		Bayonet Lock	Free Hanging (In-Line)			PE	Circular	For Male Pins	Black	Contacts Not Included	Crimp	16 S

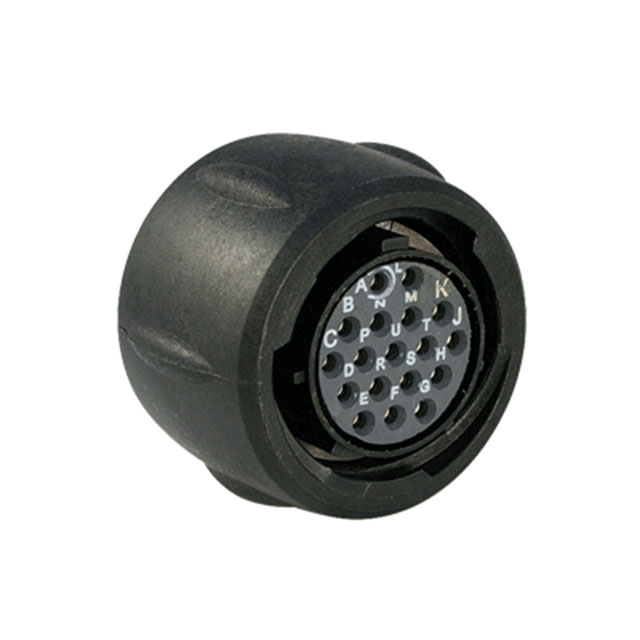

Amphenol Aerospace Operations UTS614E18S	Black	Coupling Nut UV Resistant			Nylon Polyamide (PA)	4 A	N (Normal)	Polychloroprene	Brass	Energy Instrumentation Lighting Telecommunications	250 V	Solder Cup	16 µin	Female Sockets Plug	18	Plastic	UL94 V-0	Unshielded	-40 °C	105 °C	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Bayonet Lock	Free Hanging (In-Line)	18	14 S
