RB32P04B Series
Manufacturer: Serpac
Beta
⌘K

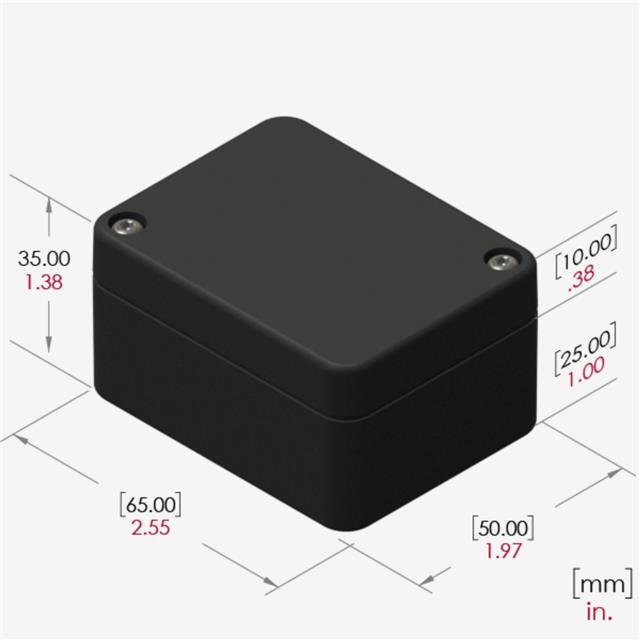

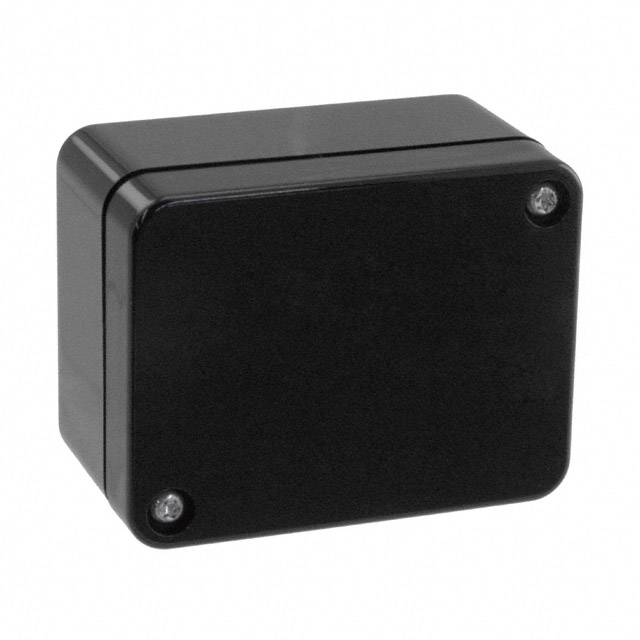

BOX PLASTIC BLK 2.56"L X 1.97"W
| Part | Thickness | Thickness | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height [z] | Height [z] | Ratings | Material | Design | Material Flammability Rating | Container Type | Color | Area (L x W) | Area (L x W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Serpac | 0.098 in | 2.49 mm | 1.969 in | 65 mm | 2.559 in | 50.01 mm | 35 mm | 1.378 in | IP67 NEMA 4 | Plastic Polycarbonate | Cover Included | UL94 V-0 | Box | Black | 32.5 cm² | 5.03 in² |

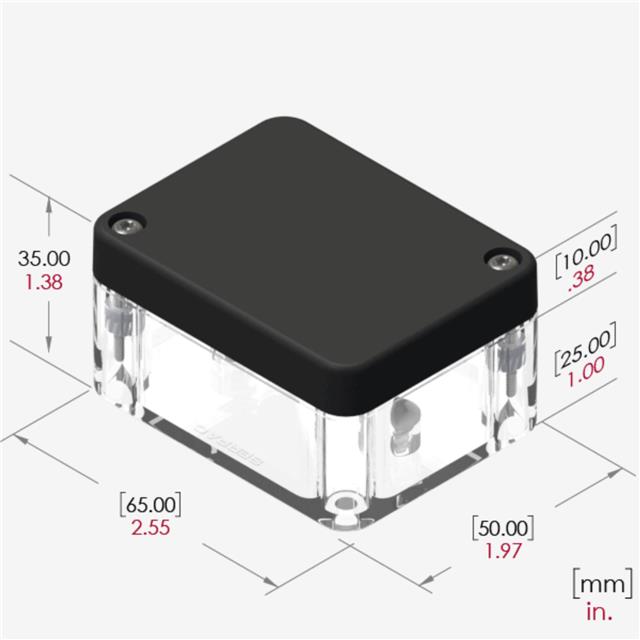

 Serpac | 0.098 in | 2.49 mm | 1.969 in | 65 mm | 2.559 in | 50.01 mm | 35 mm | 1.378 in | IP67 NEMA 4 | Plastic Polycarbonate | Cover Included | UL94 V-0 | Box | Black Cover/Door Clear | 32.5 cm² | 5.03 in² |
