BU200Z Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

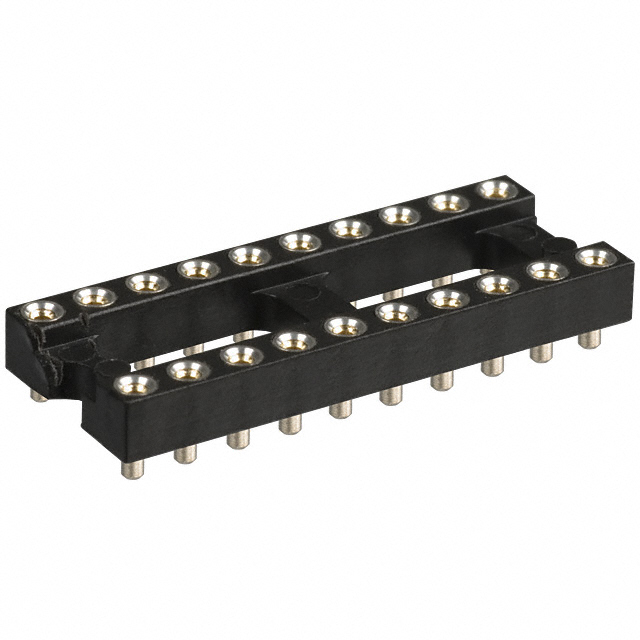

CONN IC DIP SOCKET 20POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Material Flammability Rating | Termination Post Length | Termination Post Length | Contact Finish - Mating | Features | Contact Material - Post [custom] | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination | Type | Type | Type | Pitch - Post | Pitch - Post | Contact Finish Thickness - Post | Contact Material - Mating | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 7 mOhm | 1 A | UL94 V-0 | 0.059 " | 1.5 mm | Gold | Open Frame | Brass | Copper | 0.1 " | 2.54 mm | -55 C | 125 °C | Surface Mount | Solder | 7.62 mm | 0.3 in | DIP | 0.1 in | 2.54 mm | Flash | Beryllium Copper | Polybutylene Terephthalate (PBT) Glass Filled | 78.7 µin | 2 µm | 20 |
