179840 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

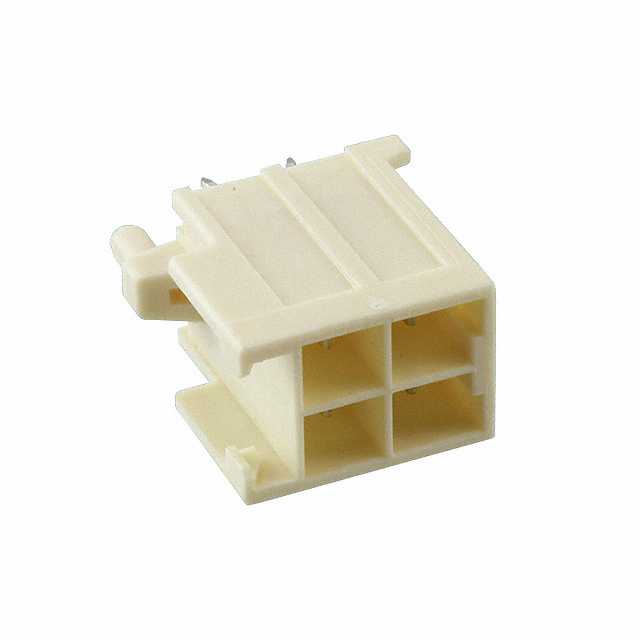

CONN HEADER VERT 4POS 3.96MM
| Part | Contact Material | Mounting Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Number of Positions | Connector Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Shrouding | Termination | Number of Rows | Contact Type | Contact Finish - Post | Fastening Type | Contact Shape | Current Rating (Amps) | Insulation Height | Insulation Height | Features | Insulation Material | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Copper Alloy | Through Hole | UL94 V-0 | -30 ░C | 105 ░C | General Purpose | 4 | Header | All | 4.6 mm | 0.181 in | Shrouded - 4 Wall | Kinked Pin Solder | 2 | Tab | Tin | Locking Ramp | Rectangular | Varies by Wire Gauge | 0.575 in | 14.6 mm | Board Guide | Polyamide (PA66) Nylon 6/6 | Natural | 0.156 in | 3.96 mm | 0.15 in | 3.81 mm | Board to Cable/Wire |
