628-13W Series
Manufacturer: EDAC Inc.
Beta
⌘K

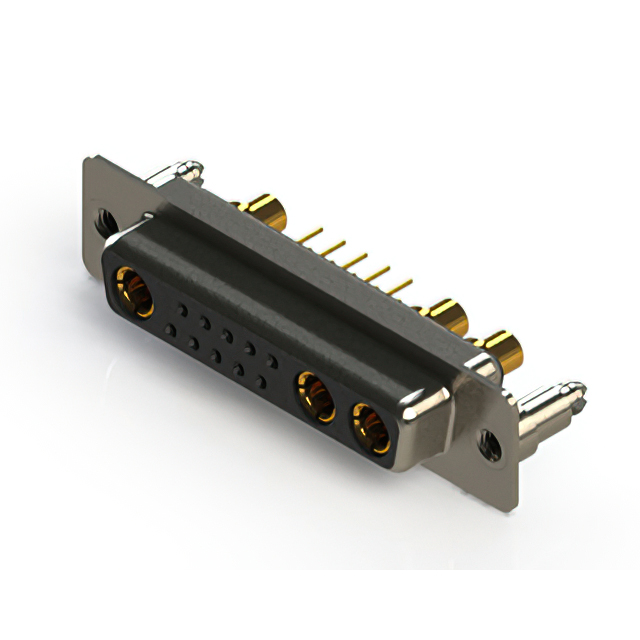

CONN D-SUB RCPT 13POS VERT SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Voltage Rating | Flange Feature | Number of Rows [custom] | Contact Finish | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Style | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Material Flammability Rating | Connector Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Features | Contact Type | Shell Material, Finish | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | M3 | 2 | Gold | Through Hole | 3 | 13C3 13W3 | Combo D-Sub | 10 | 3 | 5 A 40 A | UL94 V-0 | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | Board Lock Shielded | Signal and Power | ||||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Board Side (4-40) | 2 | Gold | Free Hanging (In-Line) | 3 | 13C3 13W3 | Combo D-Sub | UL94 V-0 | Receptacle Female Sockets | 30 Áin | 0.76 Ám | Shielded | Coax Signal | Nickel Plated Steel | 3 | 10 | |||||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Board Side (M3) | 2 | Gold | Through Hole | Combo D-Sub | UL94 V-0 | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | Board Lock Shielded | Signal and Power | 10A 5A | 13 | 4 | C DC | 13W6 | ||||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Board Side (M3) | 2 | Gold | Through Hole | 3 | 13C3 13W3 | Combo D-Sub | UL94 V-0 | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | Shielded | Coax Signal | Nickel Plated Steel | 3 | 10 | ||||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Board Side (M3) | 2 | Gold | Through Hole | 3 | 13C3 13W3 | Combo D-Sub | 10 | 3 | UL94 V-0 | Receptacle Female Sockets | Solder | Board Lock Shielded | Signal and Power | Nickel Plated Steel | 20A 5A | Flash | ||||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Board Side (4-40) | 2 | Gold | Through Hole | 3 | 13C3 13W3 | Combo D-Sub | 10 | 3 | 5 A 40 A | UL94 V-0 | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | Shielded | Signal and Power | ||||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | 4-40 | 2 | Gold | Through Hole | 3 | 13C3 13W3 | Combo D-Sub | 10 | 3 | UL94 V-0 | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | Board Lock Shielded | Signal and Power | Nickel Plated Steel | 10A 5A | |||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | M3 | 2 | Gold | Through Hole | Combo D-Sub | UL94 V-0 | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | Shielded | Coax Signal | Nickel Plated Steel | 7 | 4 | C DC | 13W6 | 6 | |||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | M3 | 2 | Gold | Through Hole | 3 | 13C3 13W3 | Combo D-Sub | UL94 V-0 | Receptacle Female Sockets | Solder | 30 Áin | 0.76 Ám | Shielded | Coax Signal | 3 | 10 | |||||||||||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | 125 VDC | Board Side (4-40) | 2 | Gold | Through Hole | 3 | 13C3 13W3 | Combo D-Sub | 10 | 3 | 5 A 40 A | UL94 V-0 | Receptacle Female Sockets | Solder | Shielded | Signal and Power | Nickel Plated Steel | Flash |
