902-0003 Series
Manufacturer: ROBOTIS
Beta
⌘K

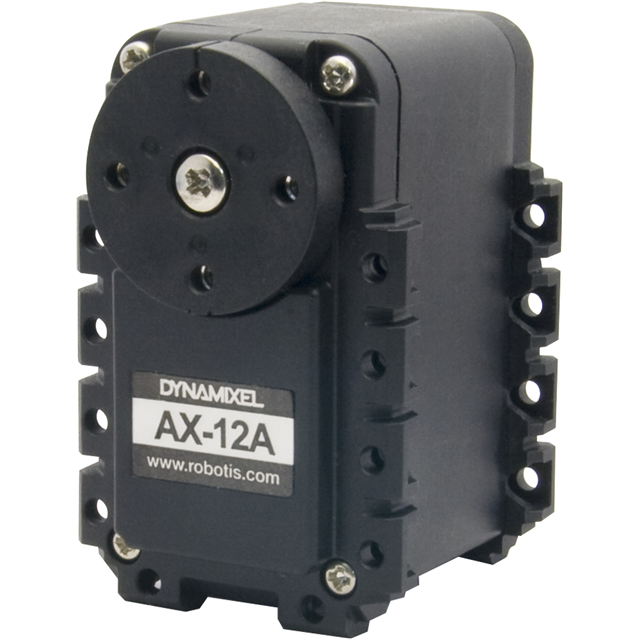

DYNAMIXEL AX-12A
| Part | Termination Style | Weight | Weight | Voltage - Rated | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Function | Type | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Motor Type | Gear Reduction Ratio | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | Connector | 0.12 lb | 54.6 g | 11.1 V | 1500 mNm | 212.5 oz-in | Servomotor | DC Motor | 59 RPM | -5 °C | 70 °C | 32 mm | 1.968 " | 50 mm | 1.259 in | Brushed | 254 | Integrated Controller |
