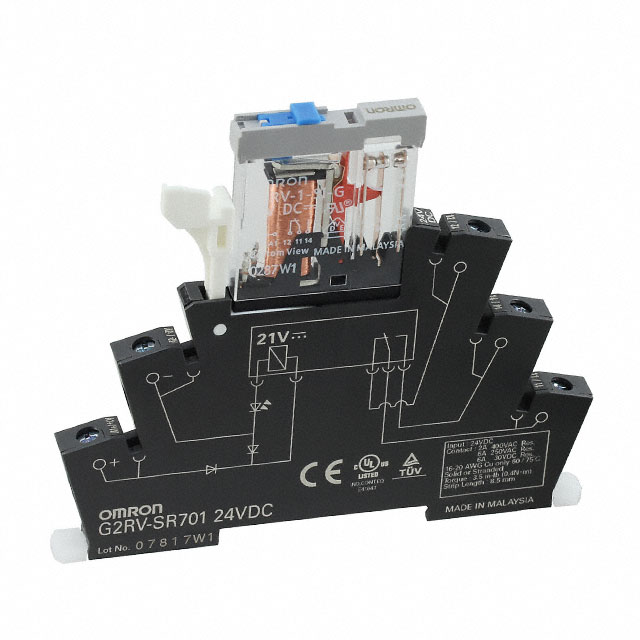

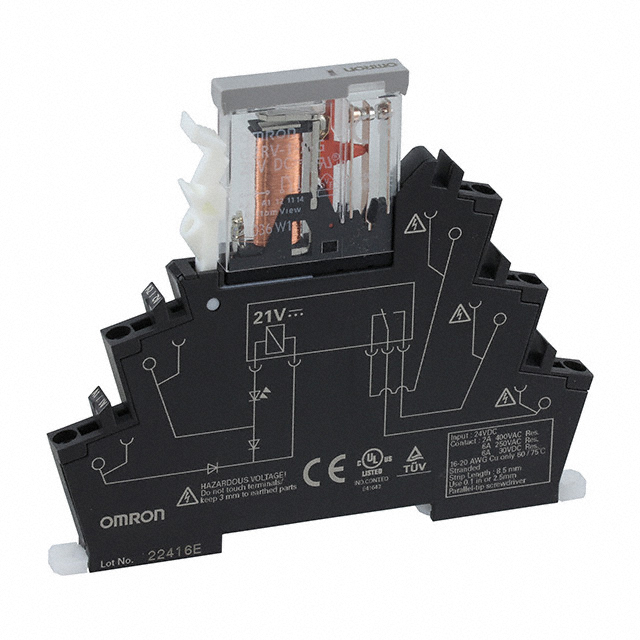

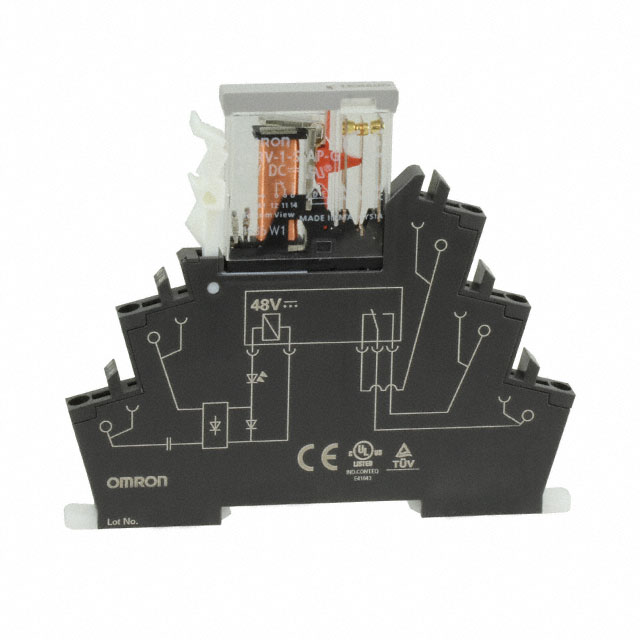

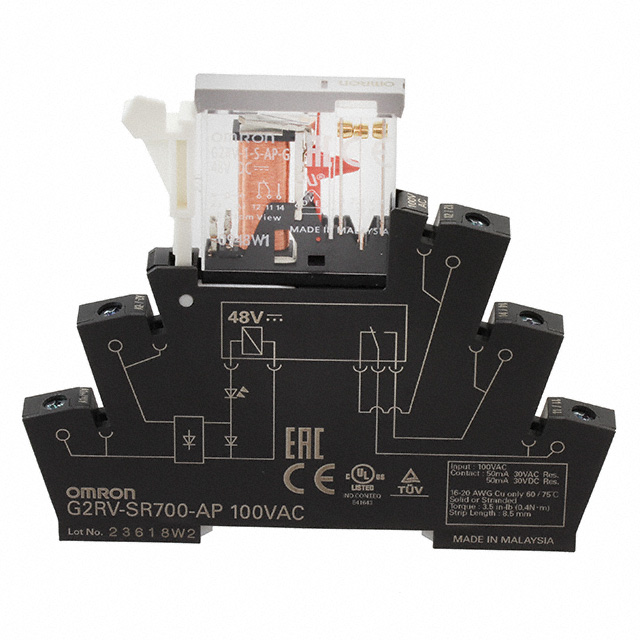

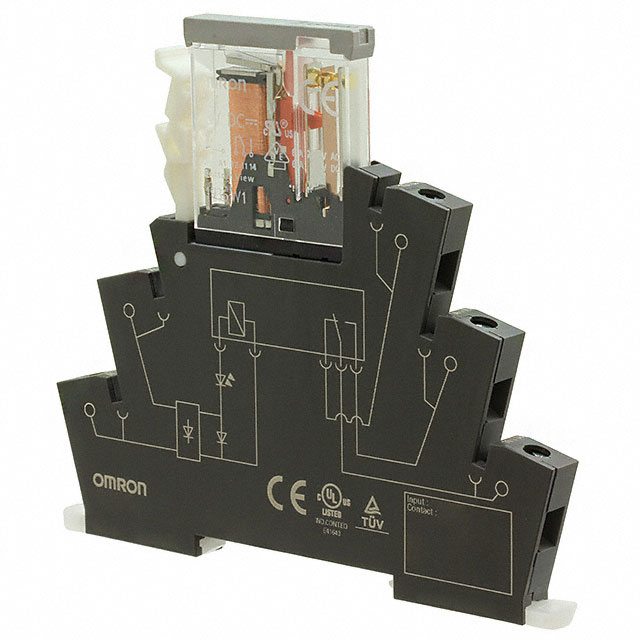

G2RV-SR Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 50MA 12V
| Part | Coil Current | Mounting Type | Must Operate Voltage | Coil Voltage | Contact Rating (Current) | Features | Relay Type | Termination Style | Coil Resistance | Switching Voltage | Must Release Voltage | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Release Time | Coil Type | Contact Material | Contact Form | Approval Agency | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 27.9 mA | DIN Rail | 9.6 VDC | 12 VDC | 50 mA | Socket Included | General Purpose | Spring Terminal | 430 Ohms | 30 VAC 36 VDC | 1.2 VDC | 20 ms | -40 °C | 55 °C | 20 ms | Non Latching | Gold (Au) Silver (Ag) | SPDT (1 Form C) | CE cULus TUV | |
 Omron Electronics Inc-EMC Div | 12.6 mA | DIN Rail | 19.2 VAC | 24 VAC | 6 A | Socket Included | General Purpose | Screw Terminal | 1.9 kOhms | 125 VDC 440 VAC | 2.4 VAC/DC | 20 ms | -40 °C | 55 °C | Non Latching | Silver Alloy | SPDT (1 Form C) | CE cULus TUV | 750 W 2640 VA | |
Omron Electronics Inc-EMC Div | 13.5 mA | DIN Rail | 19.2 VDC | 24 VDC | 50 mA | Socket Included | General Purpose | Spring Terminal | 1.778 kOhms | 30 VAC 36 VDC | 2.4 VDC | 20 ms | -40 °C | 55 °C | 20 ms | Non Latching | Gold (Au) Silver (Ag) | SPDT (1 Form C) | CE cULus TUV | |
 Omron Electronics Inc-EMC Div | 6 mA | DIN Rail | 80 VAC | 100 VAC | 50 mA | Socket Included | General Purpose | Screw Terminal | 16.67 kOhms | 30 VAC 36 VDC | 10 VAC | 20 ms | -40 °C | 55 °C | Non Latching | Gold (Au) Silver (Ag) | SPDT (1 Form C) | CE cULus TUV | ||
 Omron Electronics Inc-EMC Div | 6 mA | DIN Rail | 80 VAC | 100 VAC | 6 A | Socket Included | General Purpose | Spring Terminal | 16.6 kOhms | 125 VDC 440 VAC | 10 VAC | 20 ms | -40 °C | 55 °C | Non Latching | Silver Alloy | SPDT (1 Form C) | CE cULus TUV | 750 W 2640 VA | |
 Omron Electronics Inc-EMC Div | 6.1 mA | DIN Rail | 38.4 VAC | 48 VAC/DC | 50 mA | Socket Included | General Purpose | Screw Terminal | 7869 Ohms | 30 VAC 36 VDC | 4.8 VAC | 20 ms | -40 °C | 55 °C | Non Latching | Gold (Au) Silver (Ag) | SPDT (1 Form C) | CE cULus TUV | ||
Omron Electronics Inc-EMC Div | 6 mA | DIN Rail | 80 VAC | 100 VAC | 50 mA | Socket Included | General Purpose | Spring Terminal | 16.67 kOhms | 30 VAC 36 VDC | 10 VAC | 20 ms | -40 °C | 55 °C | Non Latching | Gold (Au) Silver (Ag) | SPDT (1 Form C) | CE cULus TUV | ||
 Omron Electronics Inc-EMC Div | 27.9 mA | DIN Rail | 9.6 VDC | 12 VDC | 6 A | Socket Included | General Purpose | Spring Terminal | 430.1 Ohms | 125 VDC 440 VAC | 1.2 VDC | 20 ms | -40 °C | 55 °C | 20 ms | Non Latching | Silver Alloy | SPDT (1 Form C) | CE cULus TUV | 750 W 2640 VA |
 Omron Electronics Inc-EMC Div | 13.5 mA | DIN Rail | 19.2 VDC | 24 VDC | 6 A | Socket Included Test Button | General Purpose | Screw Terminal | 1.77 kOhms | 125 VDC 440 VAC | 2.4 VDC | 20 ms | -40 °C | 55 °C | 20 ms | Non Latching | Silver Alloy | SPDT (1 Form C) | CE cULus TUV | 750 W 2640 VA |
Omron Electronics Inc-EMC Div | 5.9 mA | DIN Rail | 88 VAC/DC | 110 VAC/DC | 50 mA | Socket Included | General Purpose | Screw Terminal | 18.64 kOhms | 30 VAC 36 VDC | 11 VAC | 20 ms | -40 °C | 55 °C | Non Latching | Gold (Au) Silver (Ag) | SPDT (1 Form C) | CE cULus TUV |
