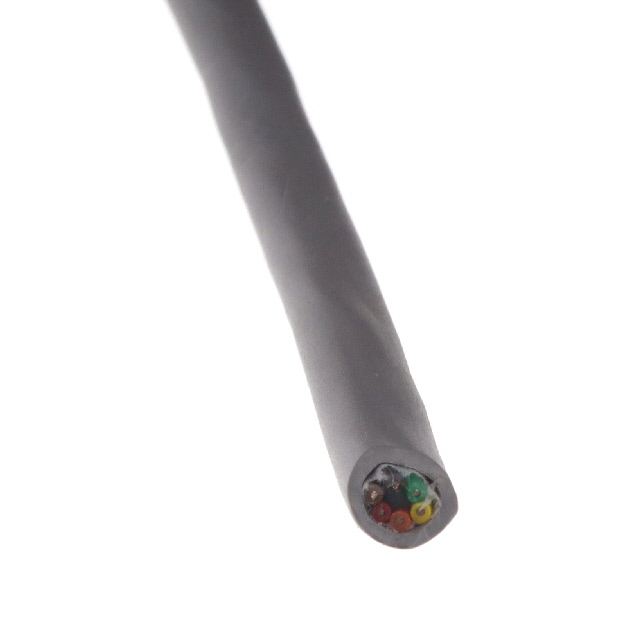

5923 Series
Manufacturer: ALPHA WIRE
Catalog
CBL 6COND 28AWG SLATE 1000=1000'
| Part | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Cable Type | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Voltage | Wire Gauge | Features | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 6 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | Communication Control | 7 | 36 AWG | Copper Tinned | Multi-Conductor | ISO 10993 UL Style 2464 | 0.174 in | 4.42 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | 28 AWG | Biological Compatibility Rip Cord | ||
ALPHA WIRE | 6 | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | Communication Control | 7 | 36 AWG | Copper Tinned | Multi-Conductor | ISO 10993 UL Style 2464 | 0.174 in | 4.42 mm | Poly-Vinyl Chloride (PVC) | 300 VDC | 28 AWG | Biological Compatibility Rip Cord | 152.4 m | 500 ft |
