BMG160 Series
Manufacturer: Bosch Sensortec GmbH
Beta
⌘K

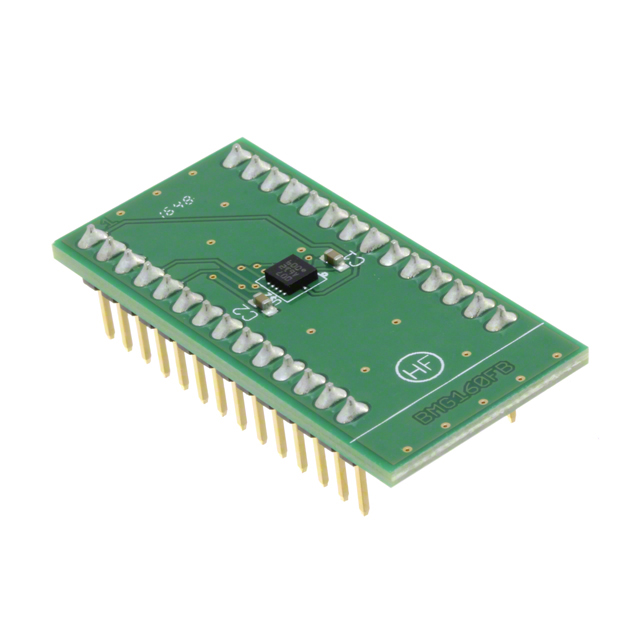

SHUTTLE BOARD BMG160
| Part | Utilized IC / Part | Type | Function | Contents | Axis [z] | Axis [x] | Axis [y] | Operating Temperature [Max] | Operating Temperature [Min] | Bandwidth [Max] | Bandwidth [Min] | Package / Case | Features | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Supply | Range °/s [Max] | Range °/s | Range °/s [Min] | Sensitivity (LSB/(°/s)) [Max] | Sensitivity (LSB/(°/s)) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bosch Sensortec GmbH | BMG160 | Sensor | Gyroscope | Board(s) | ||||||||||||||||||

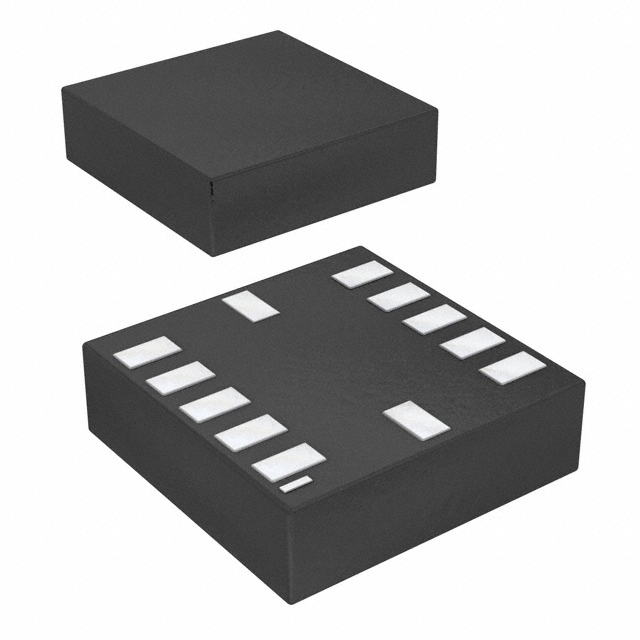

 Bosch Sensortec GmbH | Digital | Z | X | Y | 85 °C | -40 C | 230 Hz | 12 Hz | 12-VFLGA | Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor | I2C SPI | 3.6 V | 2.4 V | 5 mA | 125 °/s | 250 °/s 500 °/s 1000 °/s 2000 °/s | -125 °/s | 262.4 LSB/(°/s) | 16.4 LSB/(°/s) |
