A759EK Series

Manufacturer: KEMET

Catalog

CAP ALUMINUM POLYMER 470UF 6.3VDC 20%( 6.3 X 8MM) RADIAL 2.5MM 0.016 OHM 2.37A 2000H 125°C BAG

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Tolerance	Lead Spacing	Lead Spacing	Mounting Type	ESR (Equivalent Series Resistance)	Capacitance	Applications	Type
KEMET A759EK477M0JAAE016	Can Radial	-55 C	125 °C	6.3 VDC	9 mm	0.354 in	2000 Hrs	0.248 "	6.3 mm	205 mA	4.1 A	20 %	2.5 mm	0.098 in	Through Hole	16 mOhm	470 µF	General Purpose	Polymer
KEMET A759EK337M1AAAE018	Can Radial	-55 C	125 °C	10 V	9 mm	0.354 in	2000 Hrs	0.248 "	6.3 mm	134.95 mA	2.699 A	20 %	2.5 mm	0.098 in	Through Hole		330 µF	General Purpose	Polymer
KEMET A759EK276M1JAAE054	Can Radial	-55 C	125 °C	63 V	9 mm	0.354 in	2000 Hrs	0.248 "	6.3 mm	99.9 mA	1.998 A	20 %	2.5 mm	0.098 in	Through Hole	54 mOhm	27 µF	General Purpose	Polymer
KEMET A759EK227M1AAAE018	Can Radial	-55 C	125 °C	10 V	9 mm	0.354 in	2000 Hrs	0.248 "	6.3 mm	95.15 mA	1.903 A	20 %	2.5 mm	0.098 in	Through Hole		220 µF	General Purpose	Polymer

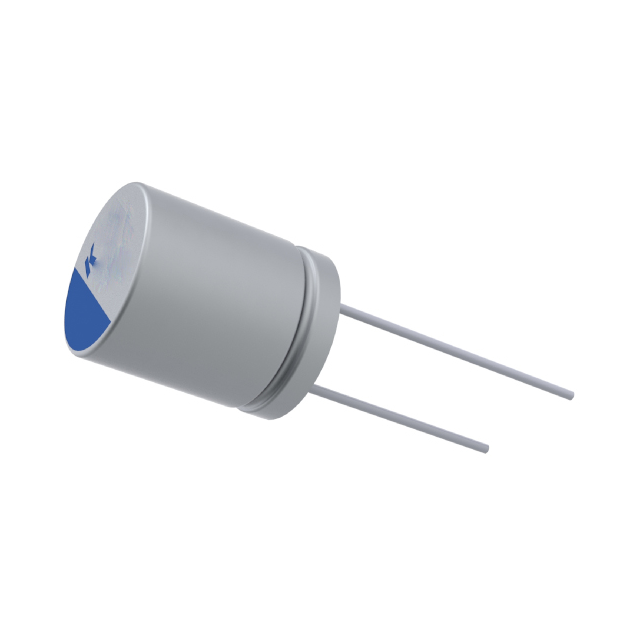

KEMET A759EK107M1CAAE018	Can Radial	-55 C	125 °C	16 V	9 mm	0.354 in	2000 Hrs	0.248 "	6.3 mm	95.15 mA	1.903 A	20 %	2.5 mm	0.098 in	Through Hole		100 µF	General Purpose	Polymer
KEMET A759EK227M0JAAE018	Can Radial	-55 C	125 °C	6.3 VDC	9 mm	0.354 in	2000 Hrs	0.248 "	6.3 mm	154.9 mA	3.098 A	20 %	2.5 mm	0.098 in	Through Hole		220 µF	General Purpose	Polymer
KEMET EA759EK226M1JAA	Can Radial	-55 C	125 °C	63 V	9 mm	0.354 in	2000 Hrs	0.248 "	6.3 mm	99.9 mA	1.998 A	20 %	2.5 mm	0.098 in	Through Hole	54 mOhm	22 µF	General Purpose	Polymer
