171826 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN WIRE TO BOARD HDR 9 POS 2.5MM SOLDER RA SIDE ENTRY THRU-HOLE BAG/BOX

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Finish - Post	Number of Positions Loaded	Current Rating (Amps)	Termination	Number of Positions	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Connector Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Type	Contact Material	Mounting Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Number of Rows	Voltage Rating	Shrouding
TE Connectivity AMP Connectors 171826-9	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder	9	0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Natural	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall
TE Connectivity AMP Connectors 4-171826-2	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder	2	0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Blue	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall
TE Connectivity AMP Connectors 171826-8	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder	8	0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Natural	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall

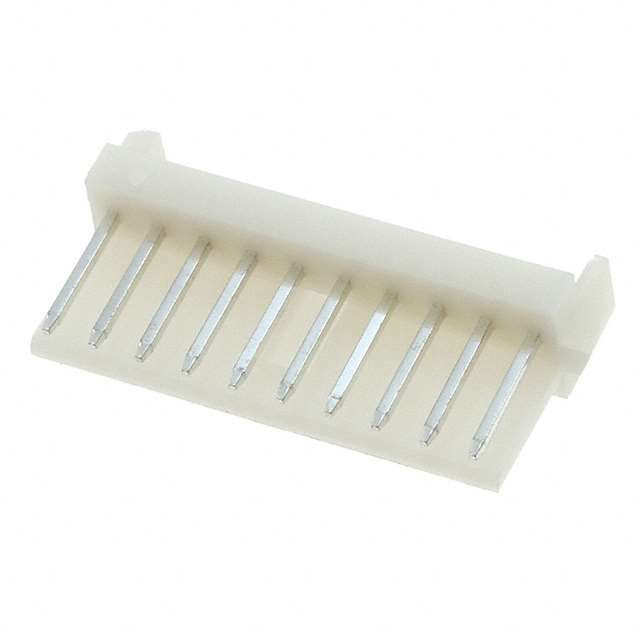

TE Connectivity AMP Connectors 1-171826-0	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder	10	0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Natural	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall
TE Connectivity AMP Connectors 171826-2	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder	2	0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Natural	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall

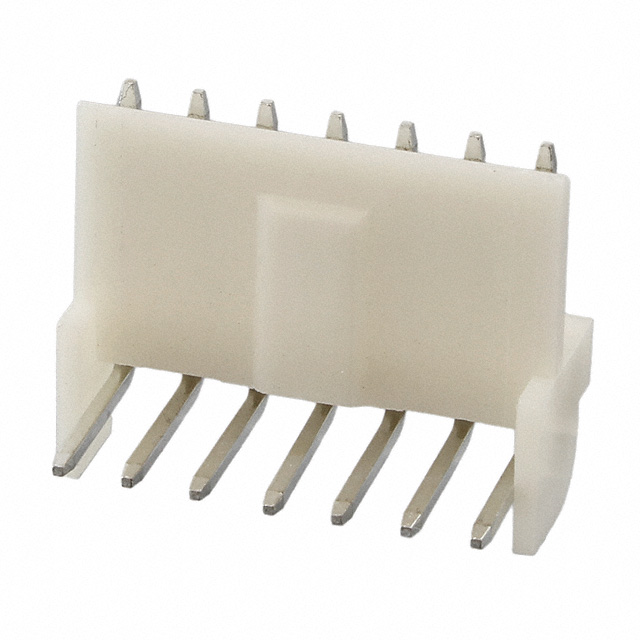

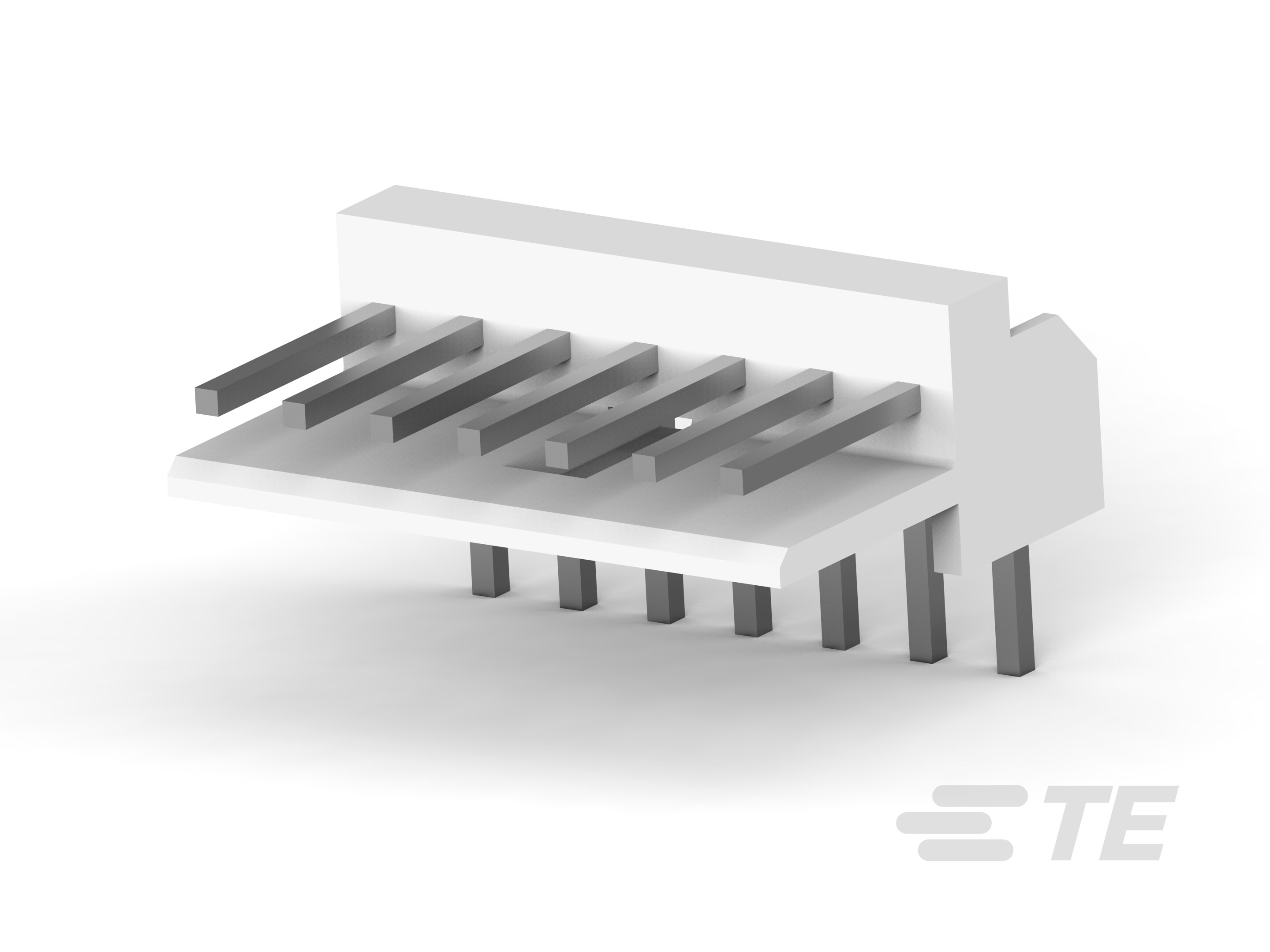

TE Connectivity AMP Connectors 171826-7	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder	7	0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Natural	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall
TE Connectivity AMP Connectors 4-171826-3	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder		0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Blue	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall
TE Connectivity AMP Connectors 4-171826-4	0.8 µm	31.5 µin	General Purpose	Tin	All	2 A	Solder	4	0.264 in	6.7 mm	Nylon 6/6 Polyamide (PA66)	Latch Holder	Header	Board to Cable/Wire	31.5 µin	0.8 µm	Blue	2.5 mm	0.098 in	Square	Male Pin	Brass	Right Angle Through Hole	UL94 V-0	7.49 mm	0.295 in	0.142 in	3.6 mm	1	250 VAC 350 VDC	Shrouded - 1 Wall
