5120/15C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

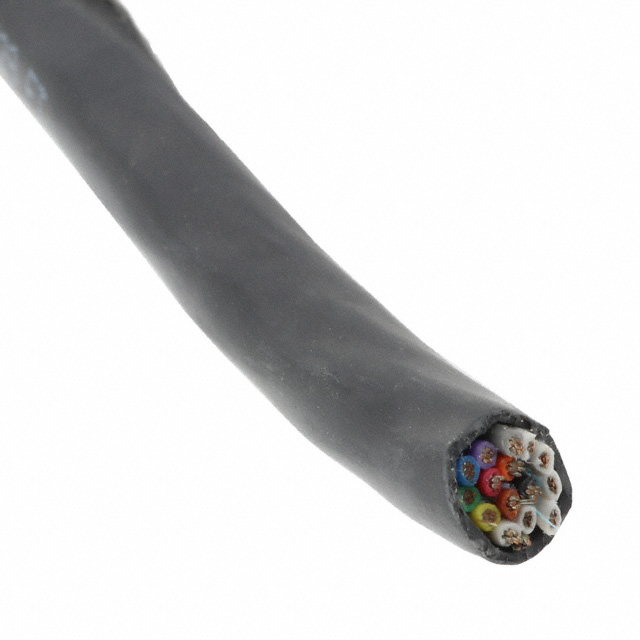

CABLE 15 COND 24AWG BLACK 1000'
| Part | Shield Material | Shield Coverage | Features | Wire Gauge | Ratings | Usage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Length | Length | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Biological Compatibility Drain Wire Rip Cord | 24 AWG | ISO 10993 | Communication Control | Black | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | -35 °C | 105 ░C | 15 | 300 VDC | Copper Tinned | 0.299 " | 7.6 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Multi-Conductor | Braid Foil |
