GMX Series
Manufacturer: Kycon, Inc.
Beta
⌘K
FL/SMT M/JACK LOW/PROF RT<6P6C B
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Housing Material | Contact Finish Thickness | Connector Type | LED Color | Contact Finish | Number of Ports | Number of Rows | Orientation Angle | Orientation Direction | Tab Direction | Mounting Type | Number of Contacts | Number of Positions | Shielding | Features | Termination | Contact Material | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Jack RJ11 RJ12 RJ14 RJ25 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 6 | 6 | Unshielded | Board Lock | Solder | Phosphor Bronze | ||
 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Jack RJ11 RJ12 RJ14 RJ25 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 6 | 6 | Unshielded | Solder Retention | Solder | Phosphor Bronze | ||

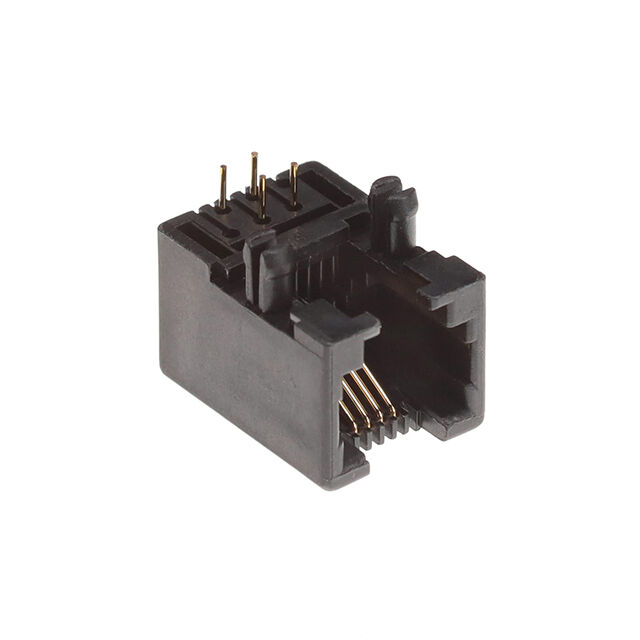

Kycon, Inc. | -40 °C | 85 °C | PBT Polybutylene Terephthalate | 50 µin | Jack RJ10 RJ22 RJ9 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Through Hole | 4 | 4 | Unshielded | Board Lock | Solder | Phosphor Bronze | ||
 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 0 | Ethernet Jack RJ45 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 8 | 8 | Unshielded | Solder Retention | Solder | Phosphor Bronze | Flash | Flash |
 Kycon, Inc. | -40 °C | 85 °C | PBT Polybutylene Terephthalate | 0 | Jack RJ11 RJ14 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Through Hole | 4 | 6 | Unshielded | Board Lock | Solder | Phosphor Bronze | Flash | Flash |

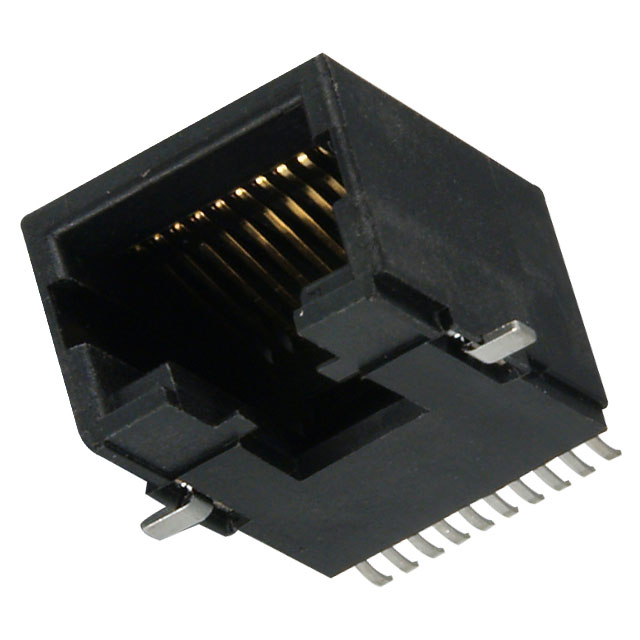

 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 0 | Jack RJ50 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 10 | 10 | Unshielded | Board Lock | Solder | Phosphor Bronze | Flash | Flash |
Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 50 µin | Jack RJ11 RJ14 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 4 | 6 | Unshielded | Solder Retention | Solder | Phosphor Bronze | ||
Kycon, Inc. | Jack RJ11 RJ14 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 4 | 6 | Unshielded | Solder Retention | Solder | Phosphor Bronze | ||||||
 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 0 | Jack RJ11 RJ12 RJ14 RJ25 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 6 | 6 | Shielded | Board Lock | Solder | Phosphor Bronze | Flash | Flash |

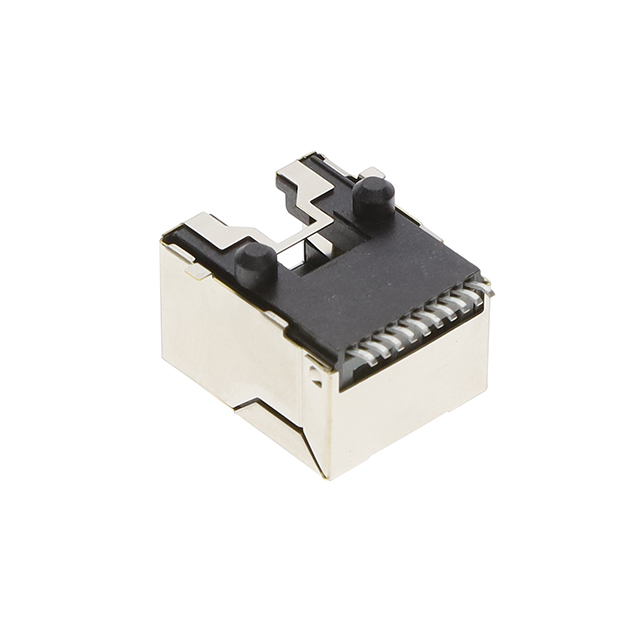

 Kycon, Inc. | -40 °C | 85 °C | Thermoplastic | 0 | Jack RJ50 | Does Not Contain LED | Gold | 1 | 1 | 90 ° | Right | Down | Surface Mount | 10 | 10 | Shielded | Board Lock | Solder | Phosphor Bronze | Flash | Flash |
