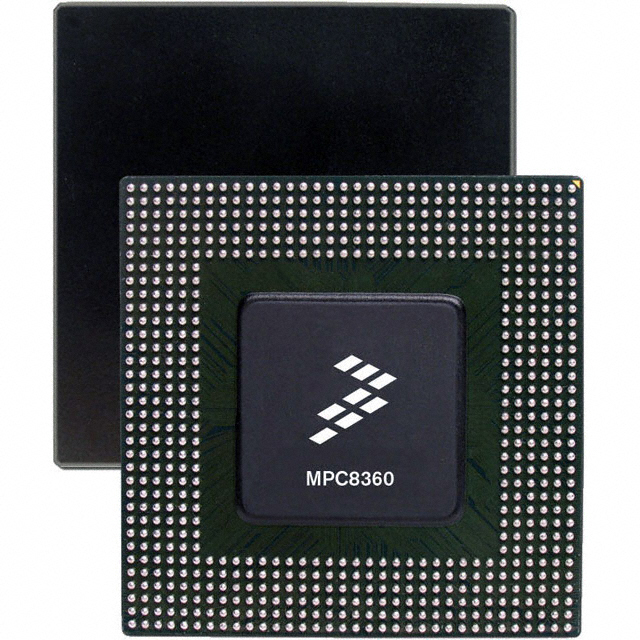

MPC8360 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

POWERQUICC, 32 BIT POWER ARCH SOC, 400MHZ, DDR1/2, PCI, 1GBE, USB, TDM, ATM, 0 TO 105C, REV 1/ TRAY ROHS COMPLIANT: YES

Part	RAM Controllers	Supplier Device Package	USB	Ethernet	Co-Processors/DSP	Number of Cores/Bus Width	Voltage - I/O	Core Processor	Mounting Type	Additional Interfaces	Speed	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Security Features
Freescale Semiconductor - NXP MPC8360VVAGDGA	DDR DDR2	740-TBGA (37.5x37.5)	USB 1.x (1)	10 Mbps 100 Mbps 1000 Mbps	Communications QUICC Engine	1 Core 32 Bit	1.8 V 2.5 V 3.3 V	PowerPC e300	Surface Mount	DUART HDLC I2C PCI SPI UART	400 MHz	740-LBGA	105 °C	0 °C
Freescale Semiconductor - NXP MPC8360ECVVAGDGA	DDR DDR2	740-TBGA (37.5x37.5)	USB 1.x (1)	10 Mbps 100 Mbps 1000 Mbps	Communications QUICC Engine SEC Security	1 Core 32 Bit	1.8 V 2.5 V 3.3 V	PowerPC e300	Surface Mount	DUART HDLC I2C PCI SPI UART	400 MHz	740-LBGA	105 °C	-40 °C	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8360EVVAJDGA	DDR DDR2	740-TBGA (37.5x37.5)	USB 1.x (1)	10 Mbps 100 Mbps 1000 Mbps	Communications QUICC Engine SEC Security	1 Core 32 Bit	1.8 V 2.5 V 3.3 V	PowerPC e300	Surface Mount	DUART HDLC I2C PCI SPI UART	533 MHz	740-LBGA	105 °C	0 °C	Cryptography Random Number Generator
Freescale Semiconductor - NXP MPC8360VVAJDGA	DDR DDR2	740-TBGA (37.5x37.5)	USB 1.x (1)	10 Mbps 100 Mbps 1000 Mbps	Communications QUICC Engine	1 Core 32 Bit	1.8 V 2.5 V 3.3 V	PowerPC e300	Surface Mount	DUART HDLC I2C PCI SPI UART	533 MHz	740-LBGA	105 °C	0 °C
Freescale Semiconductor - NXP MPC8360CVVAJDGA	DDR DDR2	740-TBGA (37.5x37.5)	USB 1.x (1)	10 Mbps 100 Mbps 1000 Mbps	Communications QUICC Engine	1 Core 32 Bit	1.8 V 2.5 V 3.3 V	PowerPC e300	Surface Mount	DUART HDLC I2C PCI SPI UART	533 MHz	740-LBGA	105 °C	-40 °C
Freescale Semiconductor - NXP MPC8360CVVAGDGA	DDR DDR2	740-TBGA (37.5x37.5)	USB 1.x (1)	10 Mbps 100 Mbps 1000 Mbps	Communications QUICC Engine	1 Core 32 Bit	1.8 V 2.5 V 3.3 V	PowerPC e300	Surface Mount	DUART HDLC I2C PCI SPI UART	400 MHz	740-LBGA	105 °C	-40 °C
Freescale Semiconductor - NXP MPC8360VVAGDGA	DDR DDR2	740-TBGA (37.5x37.5)	USB 1.x (1)	10 Mbps 100 Mbps 1000 Mbps	Communications QUICC Engine	1 Core 32 Bit	1.8 V 2.5 V 3.3 V	PowerPC e300	Surface Mount	DUART HDLC I2C PCI SPI UART	400 MHz	740-LBGA	105 °C	0 °C
