ANT2525 Series
Manufacturer: Pulse Electronics
Beta
⌘K
RF ANT 1.58GHZ CER PATCH PIN ADH
| Part | Mounting Type | Frequency Range (Min) | Frequency Range (Max) | Antenna Type | Number of Bands | Power - Max | Frequency (Center/Band) | Termination | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | RF Family/Standard | Height (Max) | Applications | VSWR | Gain | Return Loss | Return Loss | Frequency (Center) | Frequency (Band) | Features | Termination Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

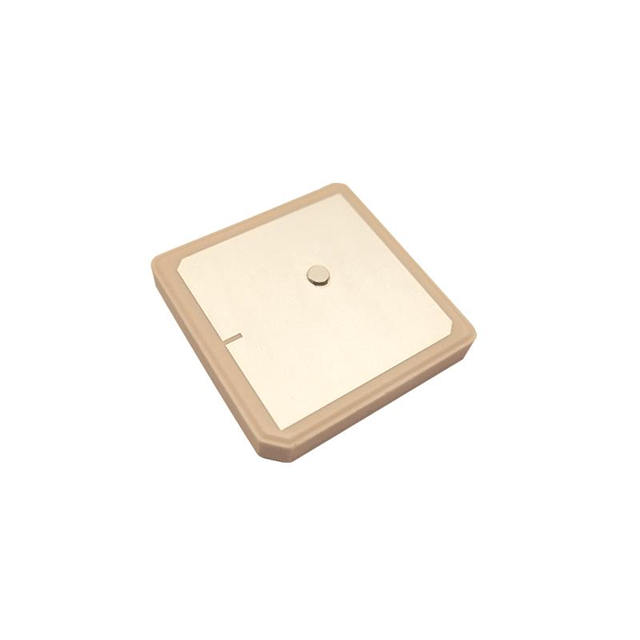

 Pulse Electronics | Adhesive | 1.559 GHz | 1.61 GHz | Ceramic Patch | 1 | 1 VA | 1.58 GHz | Pin | 1 GHz | UHF | 2 GHz | Navigation | 0.157 in | GPS | 2 | 5.16 dBi | ||||||

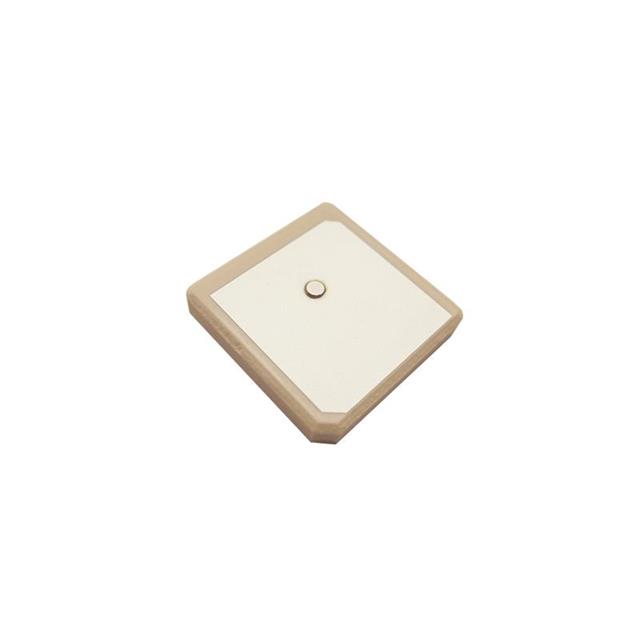

 Pulse Electronics | Surface Mount | 1.575 GHz | 1.606 GHz | Ceramic Patch | 2 | Solder | 1 GHz | UHF | 2 GHz | Navigation | 0.157 in | GLONASS GPS | 2 | 4.51 dBi 4.72 dBi | -31.357dB -32.828dB | -32.828 dB -31.357 dB | 1.575 GHz | 1.602 GHz | ||||

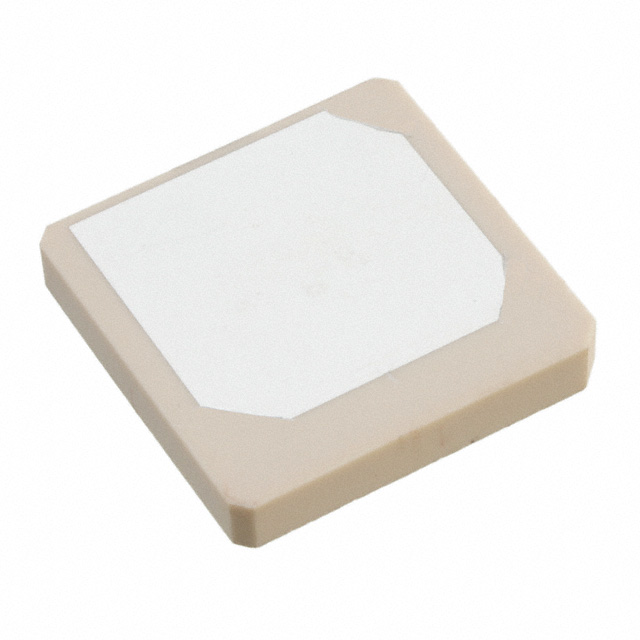

 Pulse Electronics | Adhesive | 1.559 GHz | 1.61 GHz | Ceramic Patch | 1 | 1.5845 GHz | Pin | 1 GHz | UHF | 2 GHz | Navigation | 0.157 in | BEIDOU GLONASS GNSS GPS | 2 | 5.16 dBic | |||||||

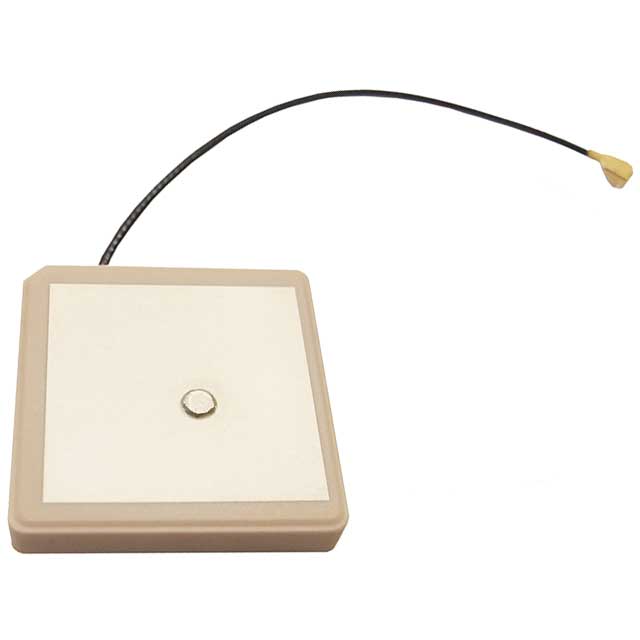

 Pulse Electronics | Surface Mount | Ceramic Patch | 1 | 1.575 GHz | 1 GHz | UHF | 2 GHz | Navigation | 0.236 in | GPS | 2 | 5.5 dBic | LNA | I-PEX MHF1 U.FL |
