PN1L Series

Manufacturer: IDEC

Catalog

PUSHBUTTON SWITCHES PIEZO SWITCH ENGRAVED

Part	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Illumination Voltage (Nominal)	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Ingress Protection	Actuator Type	Mounting Type	Type	Switch Function	Current Rating (Amps)	Color - Actuator/Cap	Voltage Rating - DC	Voltage Rating - AC	Electrical Life	Actuator Marking
IDEC PN1L-M4AFB002D0W-ENGRAVED	-40 C	75 ░C	LED White	12 VDC	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V

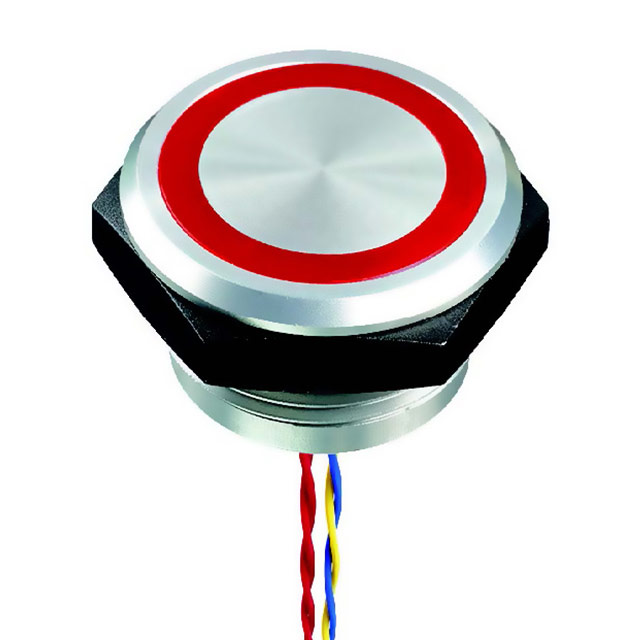

IDEC PN1L-M2AFB002E0B	-40 C	75 ░C	Blue LED	24 V	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V	50 000 000	No Marking
IDEC PN1L-M4AFB002E0W-ENGRAVED
IDEC PN1L-M2AFB002E0S	-40 C	75 ░C	LED Red	24 V	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V	50 000 000	No Marking
IDEC PN1L-M2AFB002D0W	-40 C	75 ░C	LED White	12 VDC	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V	50 000 000	No Marking
IDEC PN1L-M2AFB002D0B	-40 C	75 ░C	Blue LED	12 VDC	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V	50 000 000	No Marking

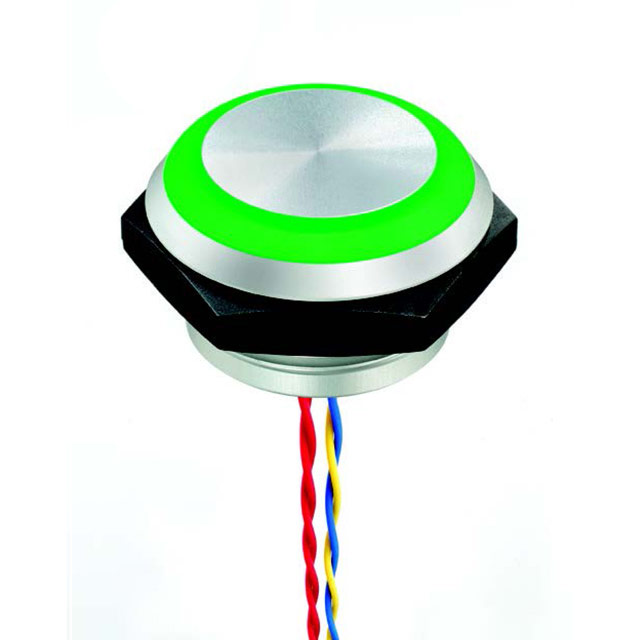

IDEC PN1L-M4AFB002D0B	-40 C	75 ░C	Blue LED	12 VDC	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V	50 000 000	No Marking
IDEC PN1L-M4AFB002D0G-ENGRAVED	-40 C	75 ░C	Green LED	12 VDC	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V
IDEC PN1L-M4AFB002D0S	-40 C	75 ░C	LED Red	12 VDC	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V	50 000 000	No Marking
IDEC PN1L-M4AFB002E0B	-40 C	75 ░C	Blue LED	24 V	SPST-NO	30.5 mm	Wire Leads	IP68 IP69K	Button Flush Round	Panel Mount Front	Piezo	Off-Mom	1 A	Silver	24 V	24 V	50 000 000	No Marking
